Automated construction layout tool to speed-up jobsite stake-out using digital methods and BIM

  • Distance measurement accuracy: ±3 mm + 10 ppm
  • Operating distance range of remote control (diameter): 2 - 100 m
  • IP protection class: IP 55 (EN 60529)

Customers also searched for Layout MeasureRecordRobotic or Total Station.

Technical Data

Distance measurement accuracy
±3 mm + 10 ppm
Operating distance range of remote control (diameter)
2 - 100 m
IP protection class
IP 55 (EN 60529)
Maximum operating time
5 h
Battery type
B 22/2.6 Li-ion
Charging time
0.25 h
Laser class
Class 2 (EN 60825)
Operating temperature range
-20 - 50 °C
Weight
5.31 kg

Features & Applications

Features

  • One-person construction layout and measuring – digital layout tools cut the labor needed for construction staking in half, while significantly increasing the number of points possible in one day
  • Get started faster – automatic stationing and tilt compensation for quick setup on the jobsite
  • Digitized construction layout using green laser and tablet – simply tap the stake-out point you need on the controller, and the layout tool will localize it in reality using the motorized green laser pointer
  • BIM-ready digital layout tool – bring the accuracy and efficiency of BIM-to-Field to your jobsites by switching to digital construction layout tools

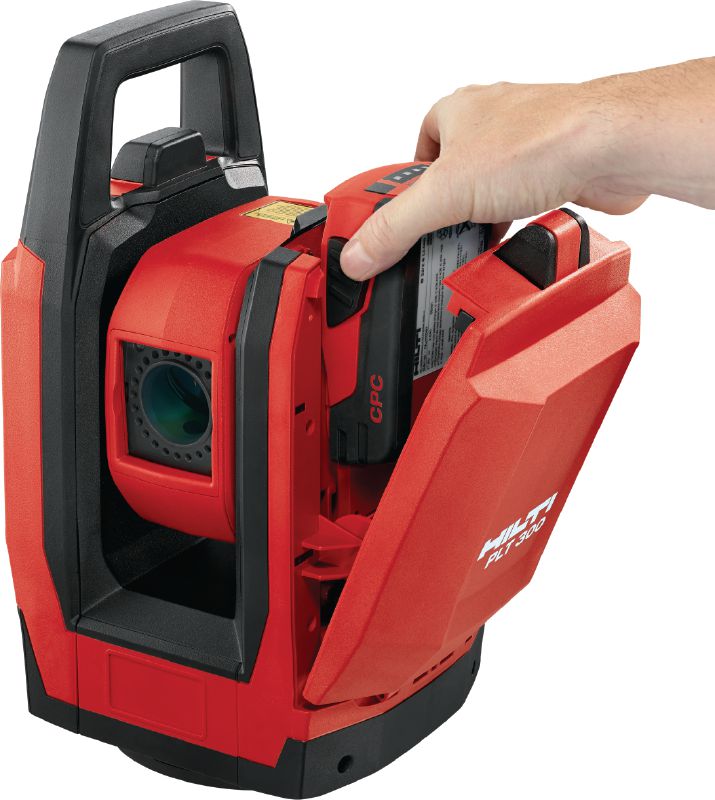

  • On the Hilti CPC battery platform – power this digital layout tool using the same batteries as all your Hilti 22V power tools (not compatible with Nuron batteries)

Applications

  • Staking out 2D and 3D positions on the jobsite using digital CAD/BIM input
  • Laying out formwork, positions for excavation and MEP fastening points on floors and ceilings
  • Laying out single and dual slopes
  • Laying out and transferring building control lines
  • As-built measurement of existing features, including real-time area and volume calculations
