PLC 400 Layout tablet

L109334_v1 (188368)
L_IMG_5624_v3_cropped (188379)
L_IMG_5970_v2_cropped (188378)

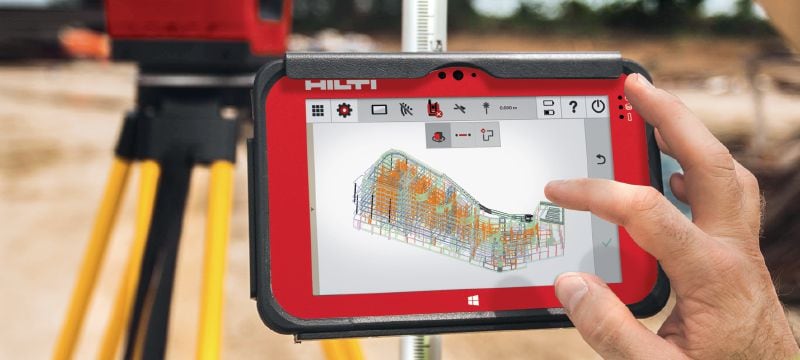

Rugged field tablet for layout applications

  • IP protection class: IP 65 (EN 60529)
  • Maximum operating time: 8 h
  • Battery type: Li-ion

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

IP protection class
IP 65 (EN 60529)
Maximum operating time
8 h
Battery type
Li-ion
Charging time
4.5 h
Operating temperature range
-20 - 50 °C
Weight
0.55 kg

Features & Applications

Features

  • Layout directly in 2D or 3D from CAD and BIM data for an effective workflow
  • One common hardware and software platform to operate all Hilti Robotic stations

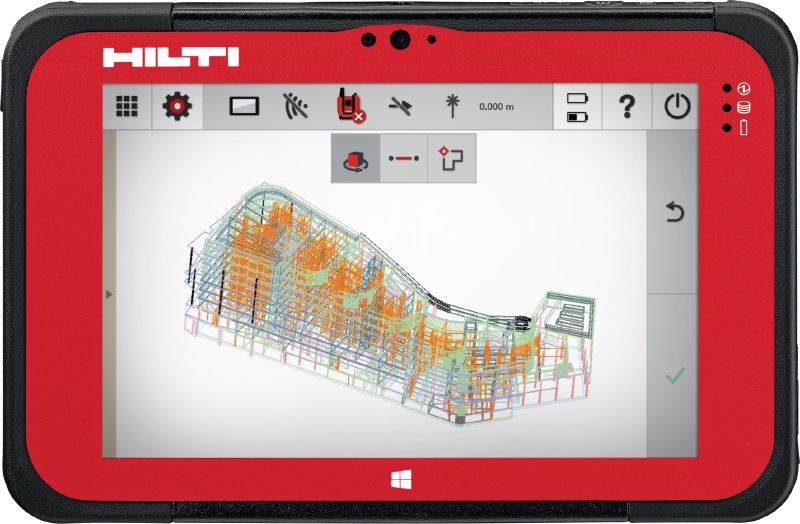

  • Rugged tablet with 7" display designed to withstand tough jobsite conditions

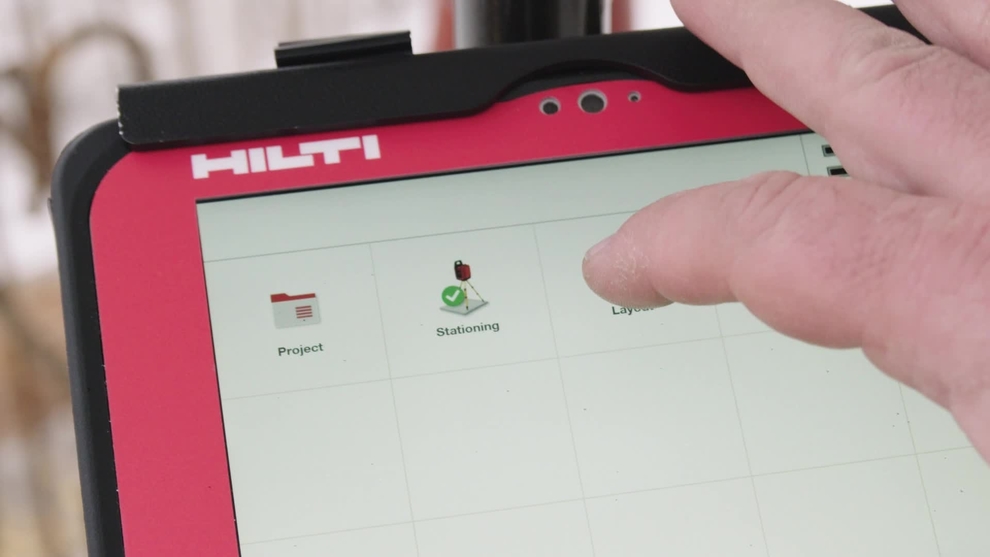

  • Intuitive Hilti Construction Layout software for jobsite layout and measuring tasks

Applications

  • Layout of 2D and 3D points and queues directly from CAD and BIM data
  • Transferring heights in flat-plane, single-slope or dual-slope mode

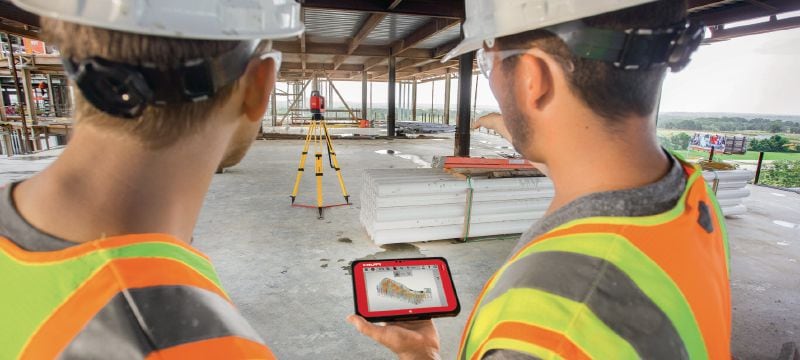

  • Measuring existing features and performing as-built for documentation
  • The data transfer via integrated Cloud access increases the productivity and makes layout data available to job site immediately
  • The remote support allows a specialist to directly support the user by direct visual interaction on the tablet screen

For approval or certificate information, please see individual items.
