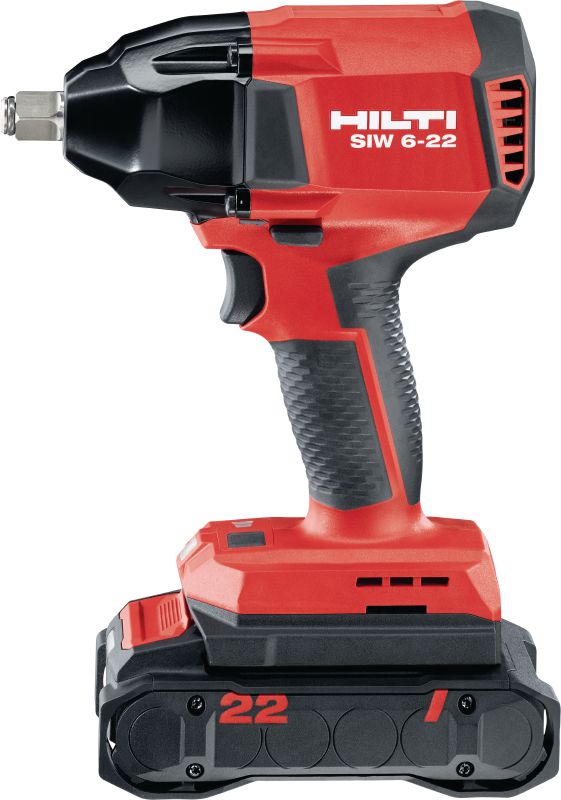

SIW 6-22 ½" cordless impact wrench

Configurator

Technical Data

Features & Applications

Choose options

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Anvil type

1/2" friction ring

Maximum torque

300 Nm (1); 450 Nm (2) ¹

Nut-busting torque

650 Nm

Full hammering frequency

3.500 impacts/minute

Number of gears

No load RPM

gear 1: 1550 rpm; gear 2: 1750 rpm

Dimensions (LxWxH)

182 x 72 x 220 mm

Tool body weight

1.8 kg

A-weighted emission sound pressure level

103 dB (A) ²

Rated voltage

21.6 V

Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

Advanced cordless performance – faster concrete screw anchor setting from a more compact tool, thanks to the combination of brushless motor and next-generation Nuron batteries
Durable build – brushless motor and friction ring anvil contribute to the extreme longevity of our cordless impact wrenches
Faster anchor setting with more control – two speed settings and improved LED light so that you can set large Fasteners more quickly or maintain precise control when needed
Exceptional ergonomics – slimmer, 52 mm shorter and 0.4 kg lighter than its predecessor, helping to delay fatigue when bolting and anchoring all day
On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow

Applications

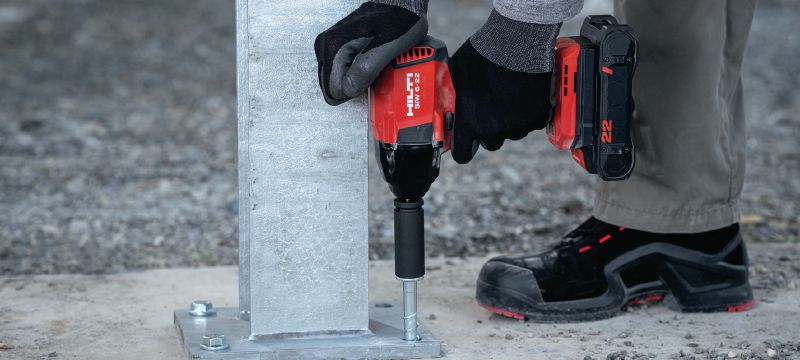

Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (8-14 mm diameter)

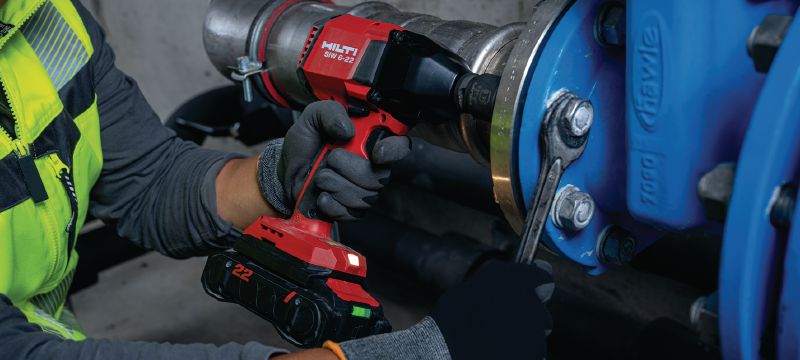

Bolting steel – such as for primary and secondary steel structures, handrails, racking and machinery (M10-M20 diameter)

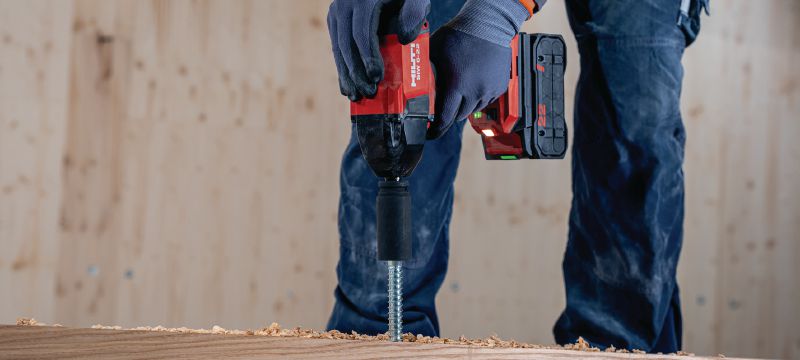

Lag bolting in wood – such as for primary and secondary wood structures, wooden roofs or temporary structures (8-16 mm diameter)
Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (3/8" to 5/8" diameter)
Metal bolting in steel – such as steel structures, handrails, racking and machinery (7/16" to ¾" diameter)

For approval or certificate information, please see individual items.
