DCH 300-X Electric cutter

Configurator
Technical Data
Documents
Features & Applications
Related Products
L102977 (182925)
L111229_cropped (191149)
L111274_cropped (191145)
L111244_cropped (191147)
L111258_cropped (191146)
L111208_cropped (191141)

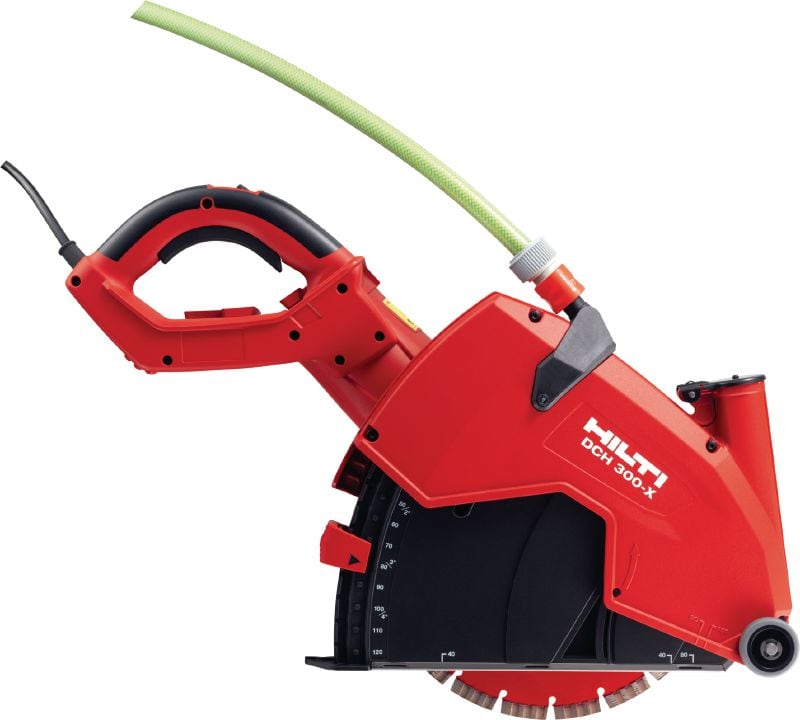

Wet and dry electric hand-held diamond cutter – cutting depth up to 120 mm with 305 mm blades

  • Disc diameter: 305 mm
  • Cutting depth: 120 mm
  • No load RPM: gear 1: 4900 rpm

Customers also searched for dch 300.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 4,880.00

Technical Data

Disc diameter
305 mm
Cutting depth
120 mm
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Arbor size
22.2 mm
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
705 x 240 x 235 mm
Wet or dry operation
Wet and dry
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DCH 300 / -X (01), Danish, German, English, Spanish, Finnish, French, Hebrew, Italian, Korean, Dutch, Norwegian, Polish, Portuguese, Swedish [ 6.7 MB ]
pdf Operating Instruction DCH 300 / -X (01), Danish, German, English, Spanish, Finnish, French, Hebrew, Italian, Korean, Dutch, Norwegian, Polish, Portuguese, Swedish [ 6.8 MB ]
pdf Operating Instruction DC-D, DG-CW, DC-TP, Russian, English, Spanish, French, Portuguese [ 3.1 MB ]
pdf Operating Instruction VC 20X; VC 40X (05), Arabic, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Kazakh, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Serbian [ 6.1 MB ]

Features & Applications

Features

  • Water kit allows wet cutting, which is 30% faster than dry cutting and virtually dust-free
  • Depth gauge – allows full control of the cutting depth in 10 mm steps from 40-120 mm

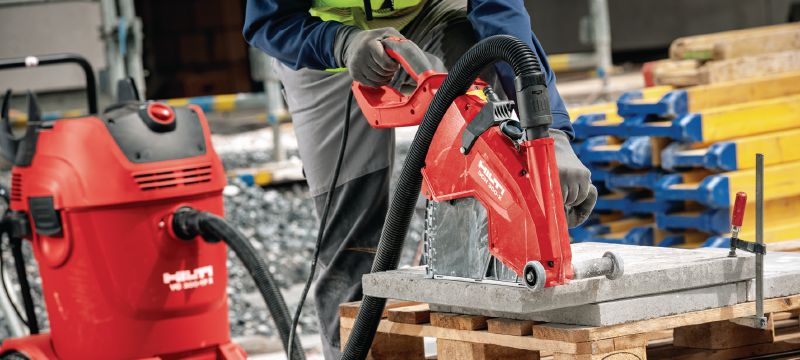

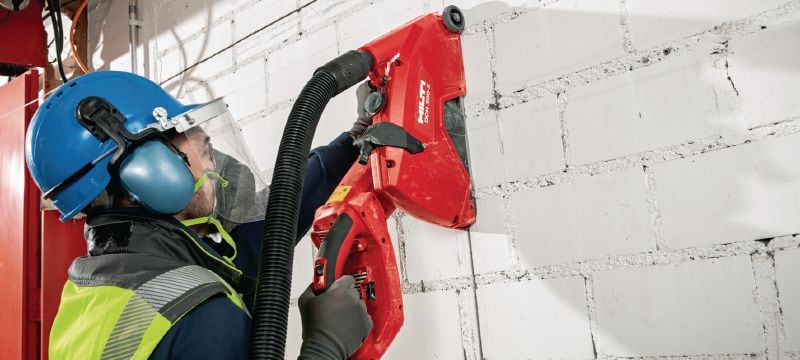

  • Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
  • Protection against overheating, overloading and water – prolongs the tool's lifetime and increases the operator's safety when wet cutting
  • The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer

Applications

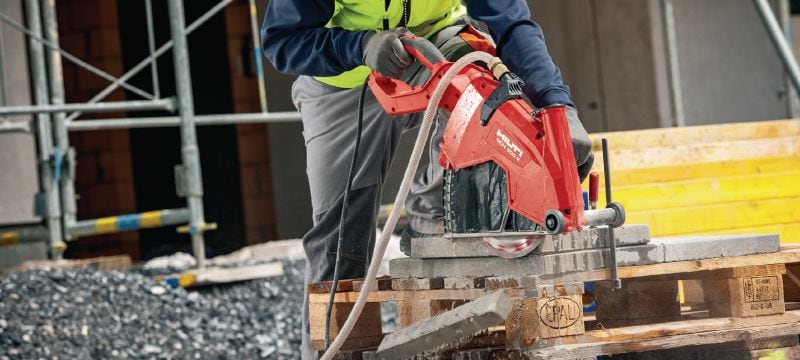

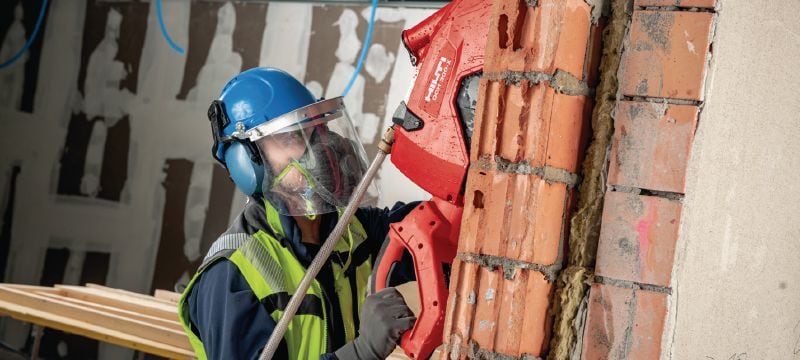

  • Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks

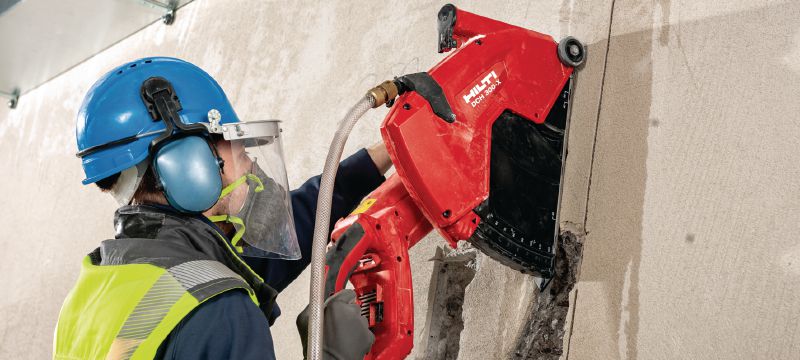

  • Cutting and extending openings for windows, doors and shafts
  • Making preliminary cuts for controlled demolition
