PLT 400-2 Construction layout tool

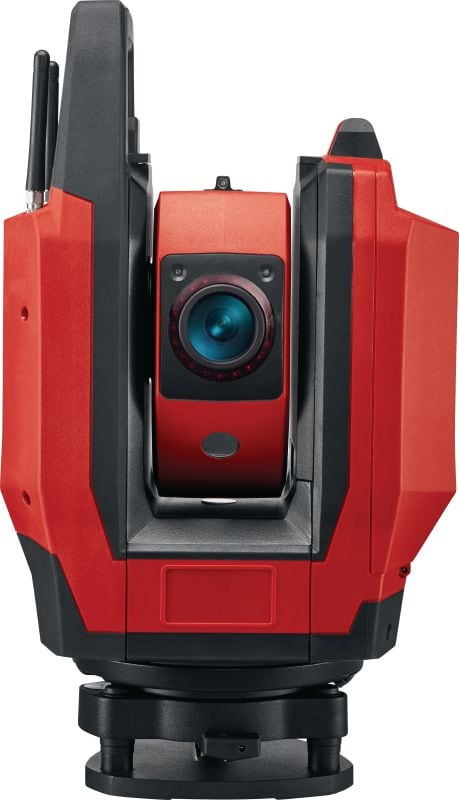

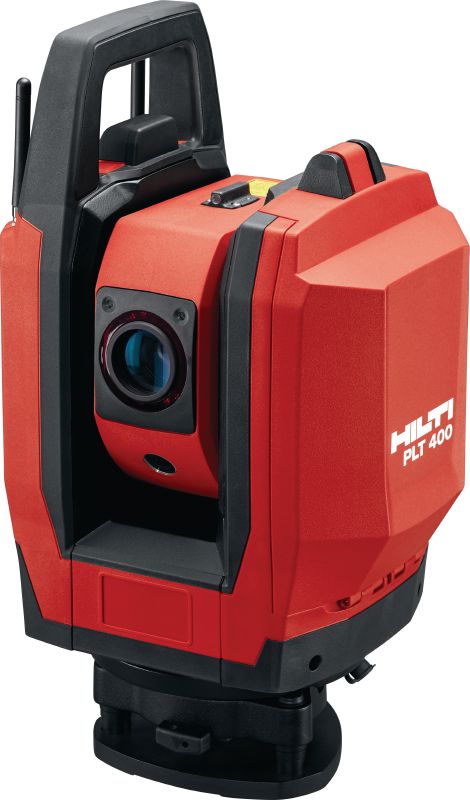

PLT 400 Head Unit #3905300

Configurator
Technical Data
Documents
Features & Applications
Related Products
L127789 (2210182)
L127795 (2210210)
L157311_cropped (5007586)
L157321_cropped (5007590)
L157327_cropped (5007587)
L146324_cropped (2432261)
L146316_cropped (2432257)

Versatile and easy-to-use construction layout tool for one-person operation, with 2" angle measurement accuracy and extended range for faster stake out of positions on the jobsite

  • IP protection class: IP 55 (EN 60529)
  • Maximum operating time: 6 h
  • Battery type: B 22/4.0 Li-ion

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 43,700.00
AUD 43,700.00 / 1 Piece

Technical Data

IP protection class
IP 55 (EN 60529)
Maximum operating time
6 h
Battery type
B 22/4.0 Li-ion
Charging time
0.25 h
Laser class
Class 2 (EN 60825)
Operating temperature range
-20 - 50 °C

Documents

pdf PLT-400_Digital Layout Tool_Leaflet_W4587_0623_g_en [ 865.1 KB ]

Features & Applications

Features

  • Your one-for-all solution – ease of use combined with higher range, accuracy and versatility for all construction site layout and measuring tasks
  • Save time and labour – digital construction layout tools make staking out a much faster, one-person job by enabling direct access to your CAD/BIM elements without time-consuming preparation work
  • Highest flexibility – zoom camera for simpler long-range targeting, including fully automatic search for optional lock-on prisms or other targets
  • Extended working distance – up to 200 m diameter range as standard
  • Accurate for every point – the first construction layout tool worldwide with self-calibration and automatic diagnostics to help ensure more accurate work every time

Applications

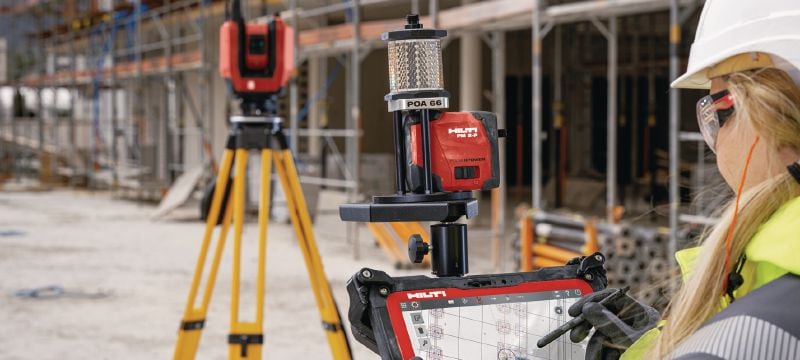

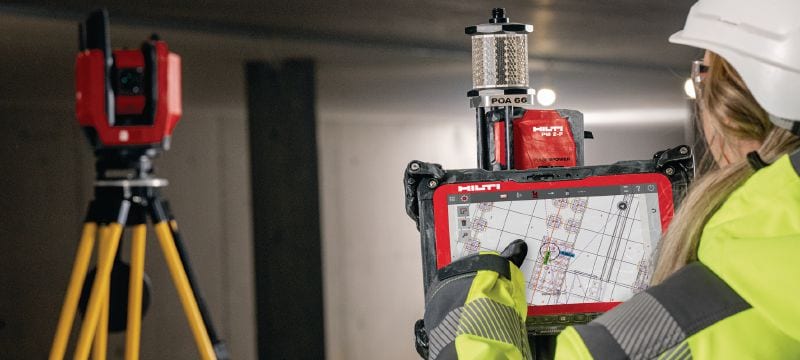

  • Staking out 2D and 3D positions on the jobsite
  • Layout and verification of foundations, underground plumbing, formwork and other important construction elements
  • Layout of fastening points, penetrations and sleeves on floors and ceilings
  • Setup via grid queues, ground control points, reflectors, prisms or existing elements like walls and columns
  • As-built measurements for documentation, calculation and quality control
