CFS-F FX flexible firestop foam
Easy-to-instal flexible firestop foam to help create a fire and smoke barrier around cable and mixed penetrations
- Base materials: Concrete, Masonry, Drywall, Wood
- Approvals: ETA-10/0109
- Approx. curing time: 10 min
ultimate
Customers also searched for Intumescent, Fire or Foam.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 168.00
Technical Data
Base materials
Concrete, Masonry, Drywall, Wood
Approvals
ETA-10/0109
Approx. curing time
10 min 1
Application temperature range
10 - 35 °C
Colour
Red

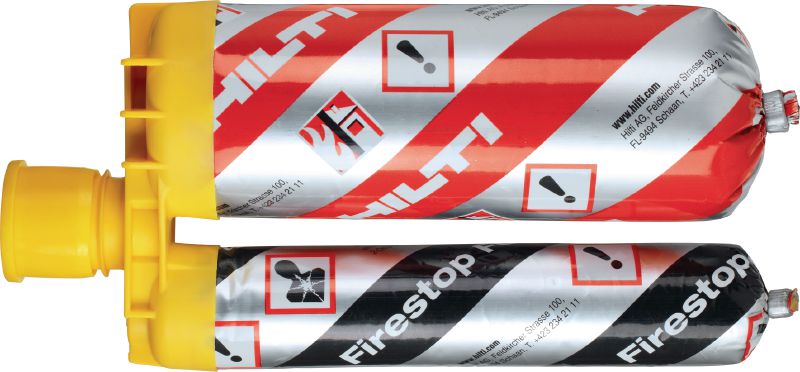

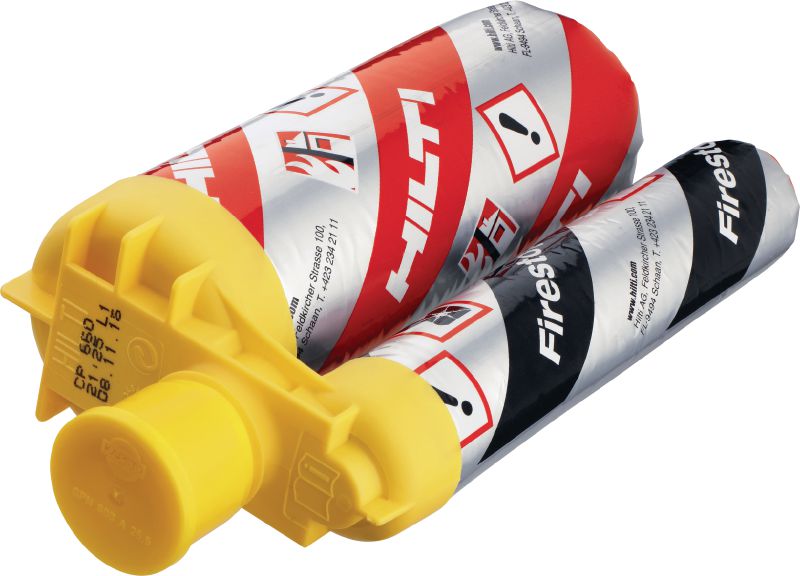

Content per can/cartridge
325 ml
Chemical basis
Two-component polyurethane foam
Foam yield (up to)
2.1 l

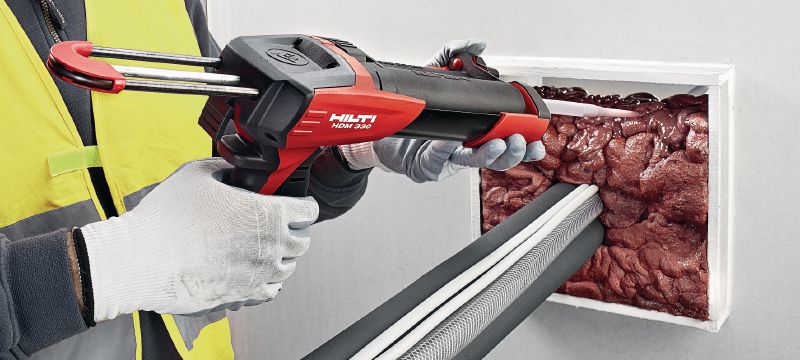

Required dispenser
HDM 330, HDE 500
LEED VOC
26 g/l
Acoustics performance
Test report available
Product class
Ultimate
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-30 - 60 °C
- at 75°F/24°C, 50% relative humidity
Documents
Features & Applications
Features

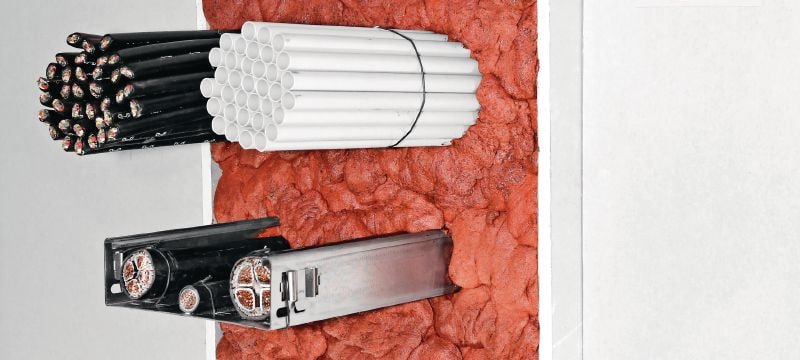

- Versatile – seal around single cables, bundles, trays, trunking and mixed penetrations (metal and plastic pipes) with the same firestop foam

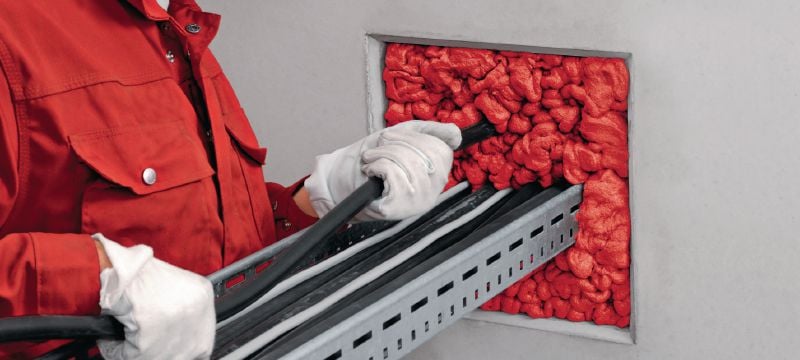

- Re-penetrable – firestop foam for cable penetrations to allow future cable capacity increases
- Easily shaped during curing phase – leftover firestop foam can be cut and reused
- Single-sided installation possible
- Simpler to instal – polyurethane firestop foam with no additional sealing or backfilling material needed
Applications
- Electrical: cables, cable bundles, cable trays and cable trunking, mixed penetrations
- Repenetration with single cables

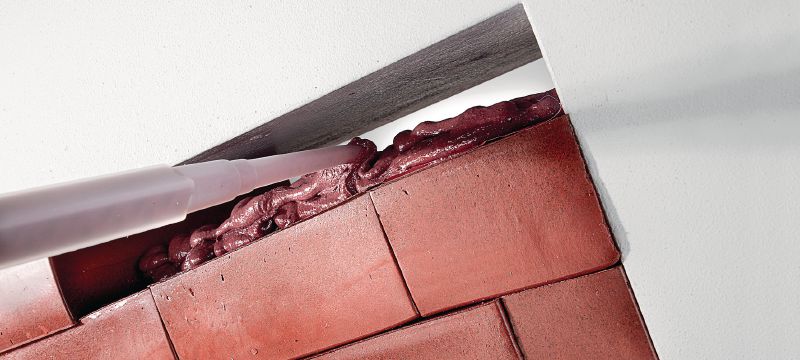

- Combi approvals with firestop blocks especially for large openings or applications in specialist industry applications (telecom, industrial)
For approval or certificate information, please see individual items.
