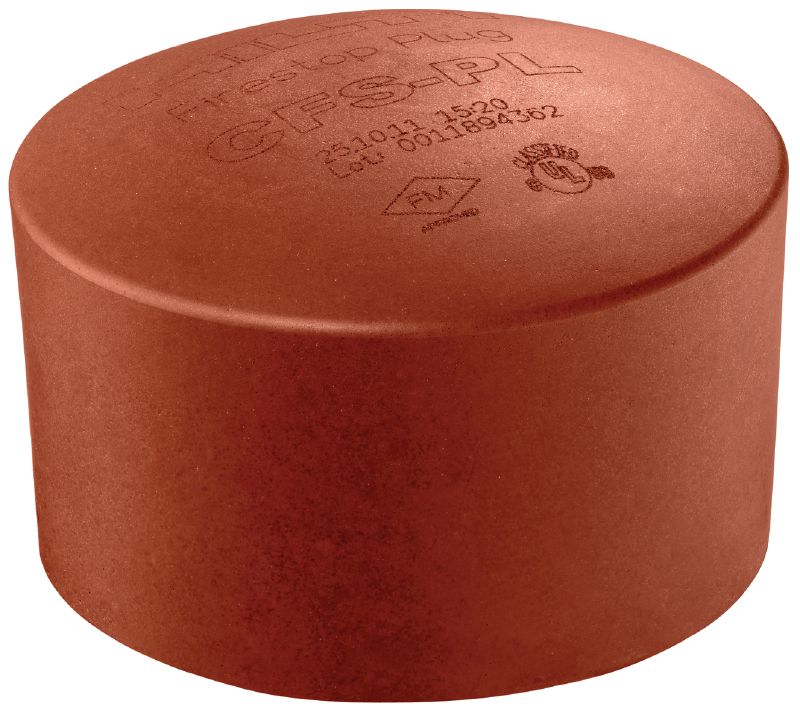

CFS-PL Firestop plug
Reusable intumescent firestop solution for permanent or temporary cable openings in walls and floors
- Approvals: ETA-13/0125
- Base materials: Concrete, Masonry, Drywall
- LEED VOC: 4.9 g/l
ultimate
Choose options
Pack size
- 1 pc
- 2 pc
- 4 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 154.10
Technical Data
Approvals
ETA-13/0125
Base materials
Concrete, Masonry, Drywall
LEED VOC
4.9 g/l
Storage and transportation temperature range
-5 - 40 °C
Application temperature range
5 - 40 °C
Temperature resistance range
-15 - 60 °C
Reaction to fire class (EN 13501-1)
E
Product class
Ultimate
Documents
Features & Applications
Features
- Simplifies maintenance and retrofitting of cables – no power tools required
- Economical solution – sealant-free, ready-to-use and reusable

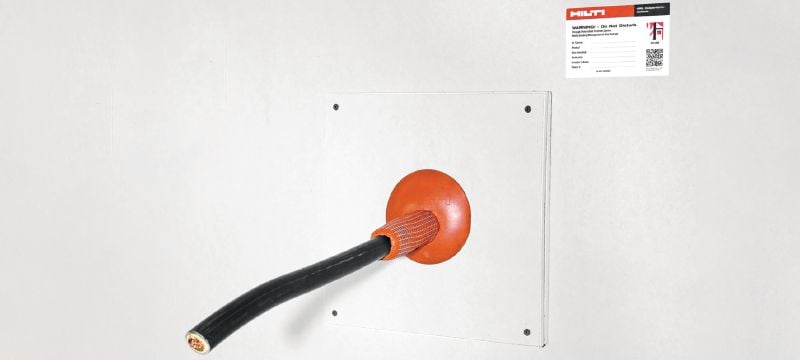

- One-sided wall installation possible

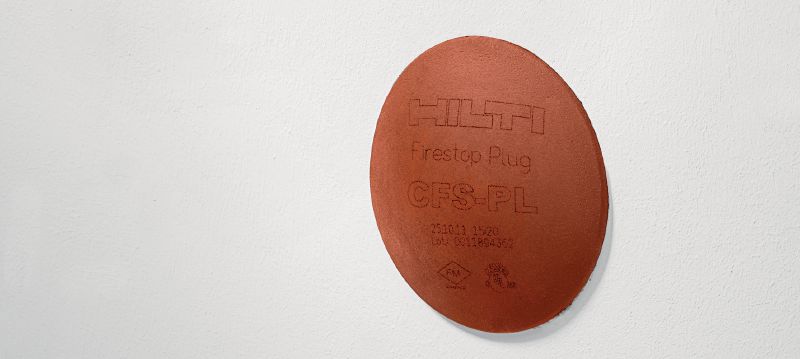

- Ideal for the temporary closing of empty core holes
- Acoustically tested according to ISO 140 and ASTM E90
Applications

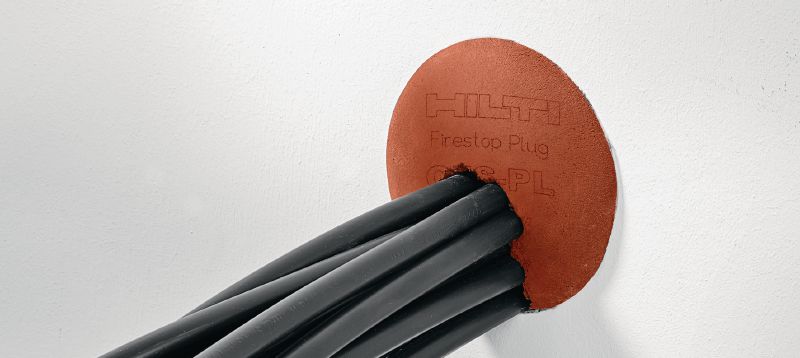

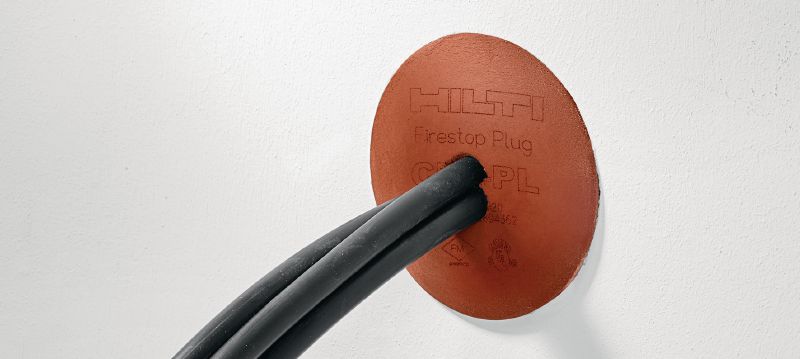

- Temporary or permanent sealing around cables and cable bundles in wall and floor openings
- Cables and cable bundles
- Conduits and conduit bundles
- Suitable for use with PVC sleeves in concrete cast-in applications
- Rooms with virtually dust- and fibre-free requirements and areas that often change services, such as server rooms, laboratories and hospitals
For approval or certificate information, please see individual items.
