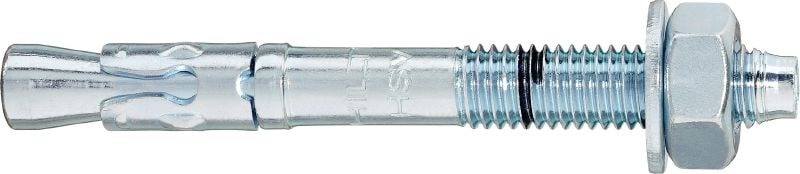

HSV Wedge anchor
Economical wedge anchor for static loads uncracked concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: N/A
Customers also searched for True Bolt, Through Bolt, Thru Bolt, Wedge or PTB.
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
N/A
Type of fastening
Pre-fastening, Through-fastening
Installation tools
TE 2-A22 Cordless rotary hammer, TE 30-A36 Cordless rotary hammer
PROFIS software
No
Documents
Features & Applications
Features
- Made from cold-formed carbon steel, zinc-plated to 5µm
- Two embedment depths for a wide range of fastening thicknesses
- Setting mark for easy checking of correct installation depth
- Raised impact section prevents thread damage during installation
- Pre-assembled to save time
Applications

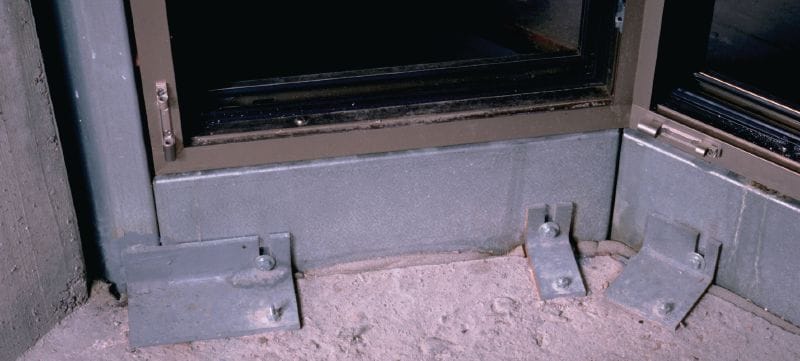

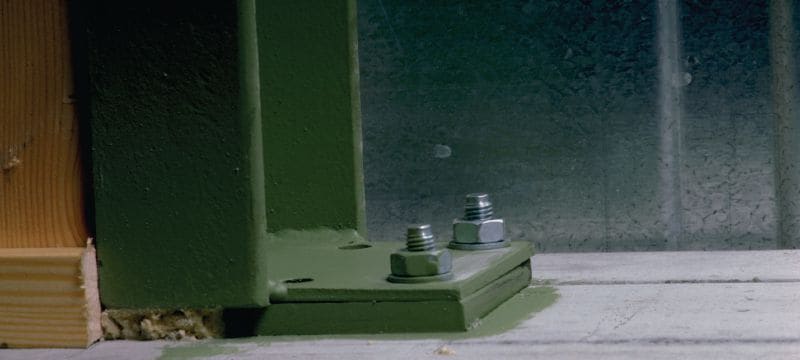

- Wide range of applications in uncracked concrete
For approval or certificate information, please see individual items.
Related Products
Compact pistol-grip 22V cordless rotary hammer for superior handling
Powerful SDS Plus (TE-C) cordless rotary hammer for heavy-duty concrete drilling and corrective chiselling
Setting tool for driving compatible expansion anchors (e.g. HSV/HSA/HST/KB3/KB-TZ2) into concrete
Ultimate SDS Plus (TE-C) hammer drill bit for anchor drilling into reinforced concrete (metric)
