HUS4-HF Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L144893 (1918719)
L144823_cropped (1918649)
L155913_cropped (4335940)
L155936_cropped (4341690)
L155937_cropped (4341696)

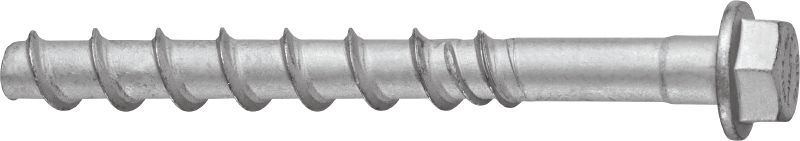

Ultimate-performance screw anchor for fast and economical fastening to concrete (multilayer corrosion protection, hex head)

  • Material, corrosion: Carbon steel, multilayer coating
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • 8 mm
  • 10 mm
  • 12 mm
  • 14 mm
  • 16 mm
Anchor length
  • 60 mm
  • 65 mm
  • 70 mm
  • 75 mm
  • 80 mm
  • 85 mm
  • 90 mm
  • 100 mm
  • 110 mm
  • 120 mm
  • 130 mm
  • 140 mm
  • 150 mm
  • 165 mm
  • 185 mm
  • 205 mm
Pack size
  • 16 pc
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 86.75

Technical Data

Material, corrosion
Carbon steel, multilayer coating
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, multilayer coating

Documents

Approval document
Technical information
Certificate
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]
pdf ER-969 HUS4_IAPMO_Evaluation_Report, English [ 1.1 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Features & Applications

Features

  • Up to 2x faster than wedge anchors – fewer work steps help you save time on every single fastening
  • Quicker and easier to install – no cleaning, no high-accuracy torque wrench and no hammering required
  • Improved setting with less blocking in the toughest concrete – thanks to smaller core diameter and new thread design
  • Extensive approvals – ETA (EAD 330232) with seismic; reusability in fresh concrete; ETA HCC-HUS for concrete overlay, FM and VDS
  • Reusable and adjustable – the ideal screw anchor for temporary fastenings, HUS4 can be reused multiple times

Applications

  • Temporary fastening to concrete – such as formwork props, tilt ups and prefab connectors
  • Non-structural baseplates, handrails, seats, balustrades and light duty industrial equipment to concrete in corrosive environments
  • Technical data available for fastening to hollow core slabs, lightweight concrete, masonry and aerated concrete, as well as fire resistance and stand-off installation with grout
  • Suitable for use in C3 corrosive environments based on Hilti internal technical data

For approval or certificate information, please see individual items.
