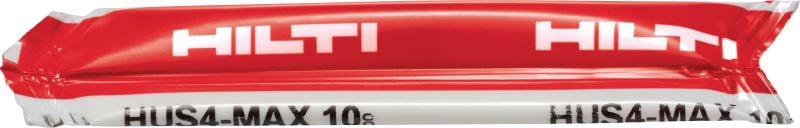

HUS4-MAX Hybrid Screw Anchor Capsule
Ultimate-performance foil capsule for fast and economical heavy-duty anchoring in concrete using HUS4 screw anchors
- Environmental conditions: Outdoor
- Approvals / test reports: ETA, Fire, Seismic
- Seismic loading: Yes
Choose options
Anchor size
- 10 mm
- 12 mm
- 14 mm
- 16 mm
Pack size
- 32 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 125.76
Technical Data
Environmental conditions
Outdoor
Approvals / test reports
ETA, Fire, Seismic
Seismic loading
Yes
Base materials
Concrete (non-cracked)
Base material condition
Dry
Installation direction
All
Drilling method
Rotary
Tested/approved for diamond drilling
No
SAFEset
Yes
Cleaning procedures
Manual cleaning
Installation tools
TE 6-22 Cordless rotary hammer, SIW 6-22 ½" cordless impact wrench
Removable
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
PROFIS software
Yes
Documents
Features & Applications
Features
- Up to 4x faster than conventional injectable mortars – two-step installation with no cleaning, shallower embedment, smaller diameters and immediate loading help you save time on every single fastening
- Easier and faster to install compared to traditional chemical anchors – HUS4-MAX achieves the tension resistance of traditional chemical anchors, without cleaning requirements
- Extensive applications covered combined with HUS4 screws – ETA (EAD 332795) with seismic C1 and C2 (with carbon steel HUS4 screws) and cracked and uncracked concrete and fire resistance for all steel types
- Screw anchor can be adjusted or removed even if the capsule was used
Applications

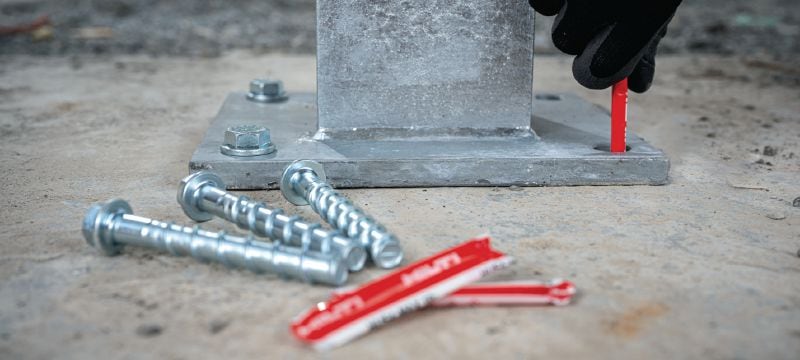

- Structural baseplates to concrete using HUS4 screw anchors (size 10-16)
- Safety relevant and designed secondary steel, platforms, staircases, balconies and industrial equipment to concrete using HUS4 screw anchors
For approval or certificate information, please see individual items.
