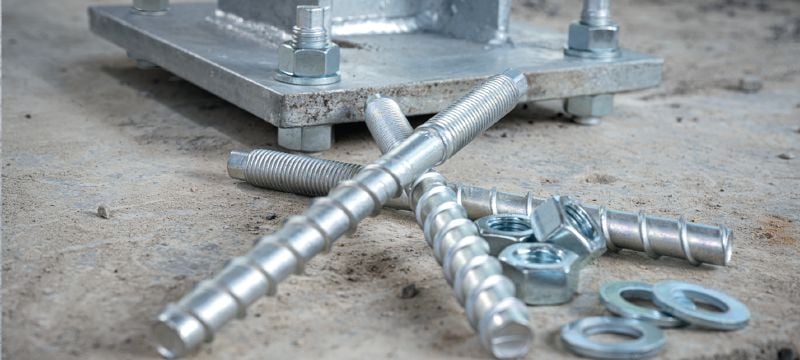

HUS4-AF screw anchor
High-performing threaded head screw anchor for fastening to concrete and masonry (multilayer corrosion protection)
- Material, corrosion: Carbon steel, multilayer coating
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, Seismic
Technical Data
Material, corrosion
Carbon steel, multilayer coating
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked)
Reusable (and removable)
Yes
Cleaning procedures
Manual cleaning, Non-cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, multilayer coating
Documents
Features & Applications
Features
- Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
- Simpler to instal – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
- Improved setting with less blocking – thanks to smaller core diameter and new thread design
- External metric thread – for pre-installation or to fasten stand-off baseplates
- Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs
Applications
- Fastening of baseplates – such as secondary steelwork, fences, handrails and racking systems
- Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 10-14), metal decks (size 10) and masonry (size 10)
- Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
- Suitable for permanent fastenings in dry indoor environments and outdoor use
For approval or certificate information, please see individual items.
