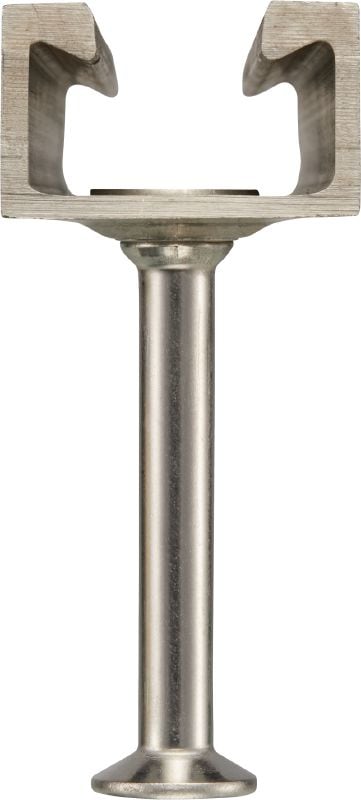

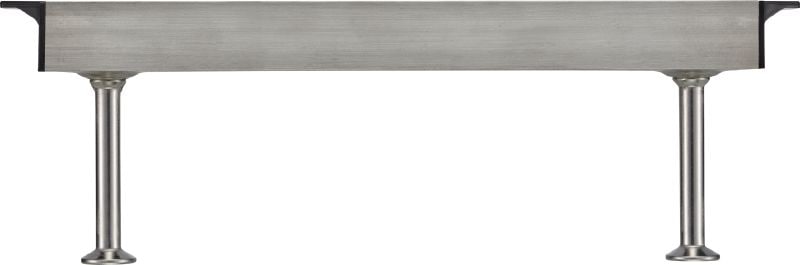

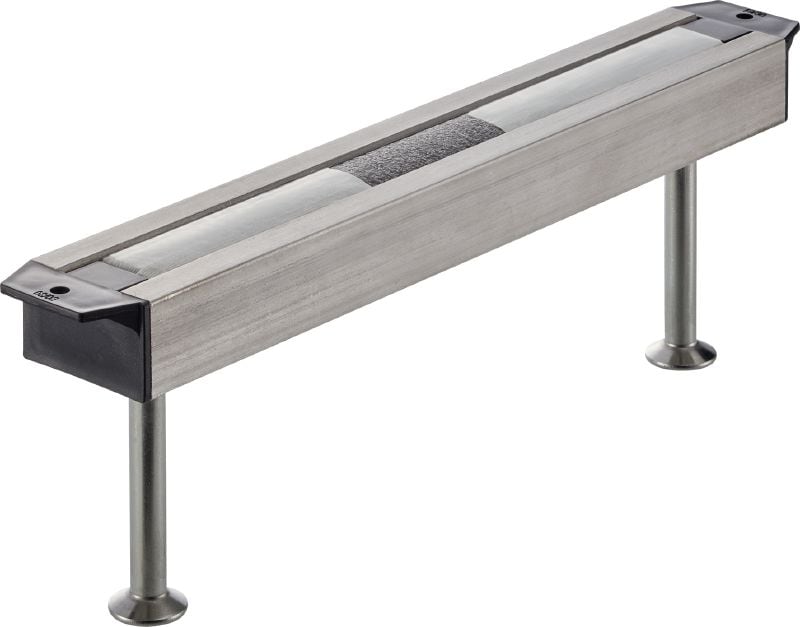

HAC-C-P Hot-rolled anchor channel
High performance hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications
- Material, corrosion: Stainless steel, A4, Carbon Steel, Hot-Dip Galvanised
- Channel profile: HAC-C-P 40/22, HAC-C-P 50/30
- PROFIS software: Yes
Choose options
Channel profile
- HAC-C-P 40/22
- HAC-C-P 50/30
Length
- 300 mm
- 350 mm
- 550 mm
- 800 mm
- 1050 mm
- 1300 mm
- 1550 mm
- 2050 mm
- 3050 mm
- 6070 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 19.62
Technical Data
Material, corrosion
Stainless steel, A4, Carbon Steel, Hot-Dip Galvanised
Channel profile
HAC-C-P 40/22, HAC-C-P 50/30
PROFIS software
Yes
Documents
Features & Applications
Features
- Upgraded load capacity – higher static tension and shear values mean you can specify the same cast-in channels for virtually any loading
- Engineering and software support – you can use Hilti PROFIS Anchor Channel software and our engineering services team to streamline your design work
- Designed for high-speed installation – end caps with nail holes, one-pull filler foam and many other features help to make these anchor channels faster and easier on-site
- Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions
Applications
- Fastening curtain wall façade brackets to concrete slabs
- Fastening overhead MEP installations and equipment
- Fastening infrastructure in tunnels, including safety equipment and overhead lines (curved and stainless steel versions available)
- Creating adjustable, retrofittable fastening points in concrete
- Fastening in lift shafts, such as fixing guiderails, sliding doors or divider beams
For approval or certificate information, please see individual items.
