HAC-C Hot-rolled anchor channel
A.-Channel HAC-C 50/30 1050 A4 #2170401

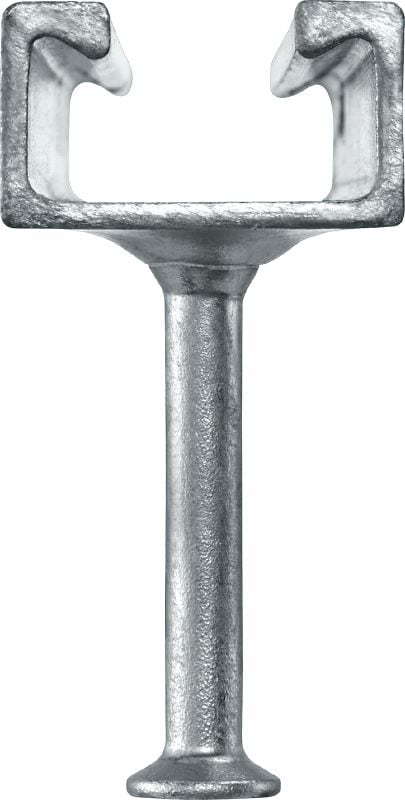

Hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications
- Material, corrosion: Stainless steel, A4
- Channel profile: HAC-C 50/30
- Length: 1050 mm
Choose options
Channel profile

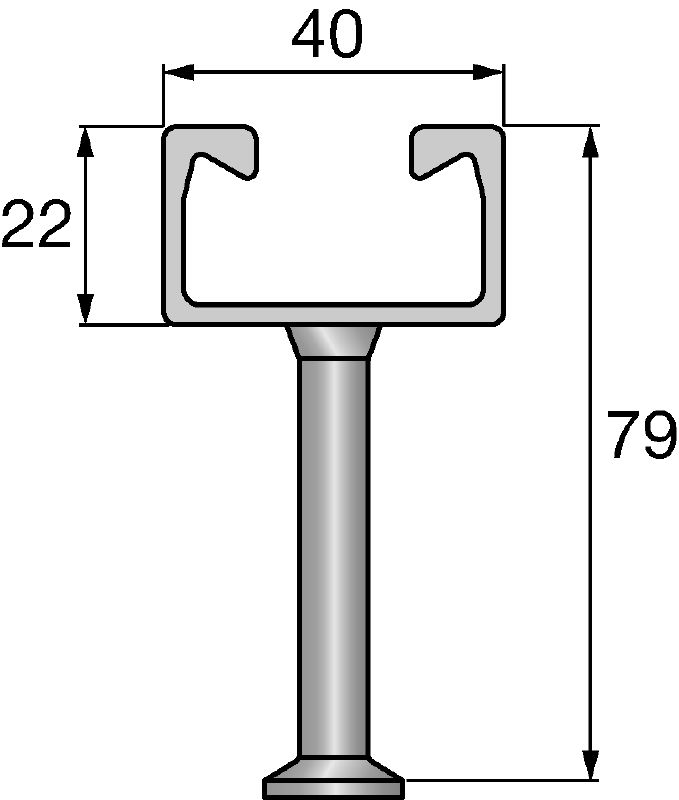

- HAC-C 40/22
- HAC-C 50/30
- HAC-C 52/34
Length
- 150 mm
- 200 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 1050 mm
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
AUD 436.00
AUD 436.00 / 1 Piece
Technical Data
Material, corrosion
Stainless steel, A4
Channel profile
HAC-C 50/30
Length
1050 mm
Standard embedment depth
94 mm
Anchor distance
250 mm
PROFIS software
Yes
Documents
Features & Applications
Features
- Hot-rolled channels with thick, sturdy profiles – engineered for high load resistance

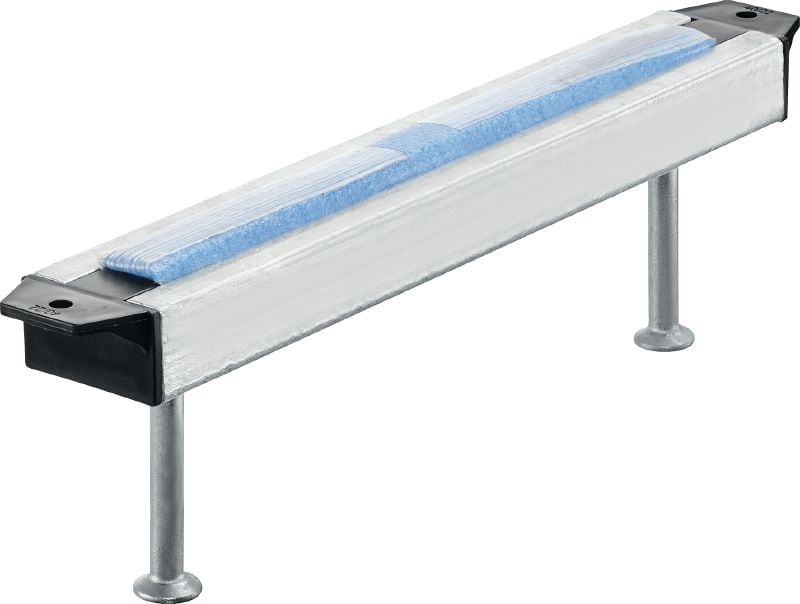

- LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
- Available in three sizes to fit virtually any installation – HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
- ETA and fire approval documents available
- Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions
Applications
- Fastening production equipment (e.g. machines, conveyor belts)
- Metro, railway or utility tunnels (e.g. fixing cantilever systems, supply pipes, signs, ventilation or support beams)
- Curtain wall façades (e.g. fixing curtain wall elements with brackets)
- Elevators (e.g. fixing guide-rails, sliding doors or divider beams)
- Power plants
