BUILDING INFORMATION MODELLING (BIM)

Accessing the Hilti BIM/CAD Library

Hilti BIM/CAD library

BIM – building information modelling – is revolutionising the way projects are designed and managed.

It’s not just 3D design software, it’s a process that makes collaboration easier for extended project teams.

Enable end-to-end workflow solutions for your building projects with integrated BIM digital tools and engineering services.

BIM IS CHANGING THE CONSTRUCTION INDUSTRY

With BIM, you can:

Reduce errors and costs

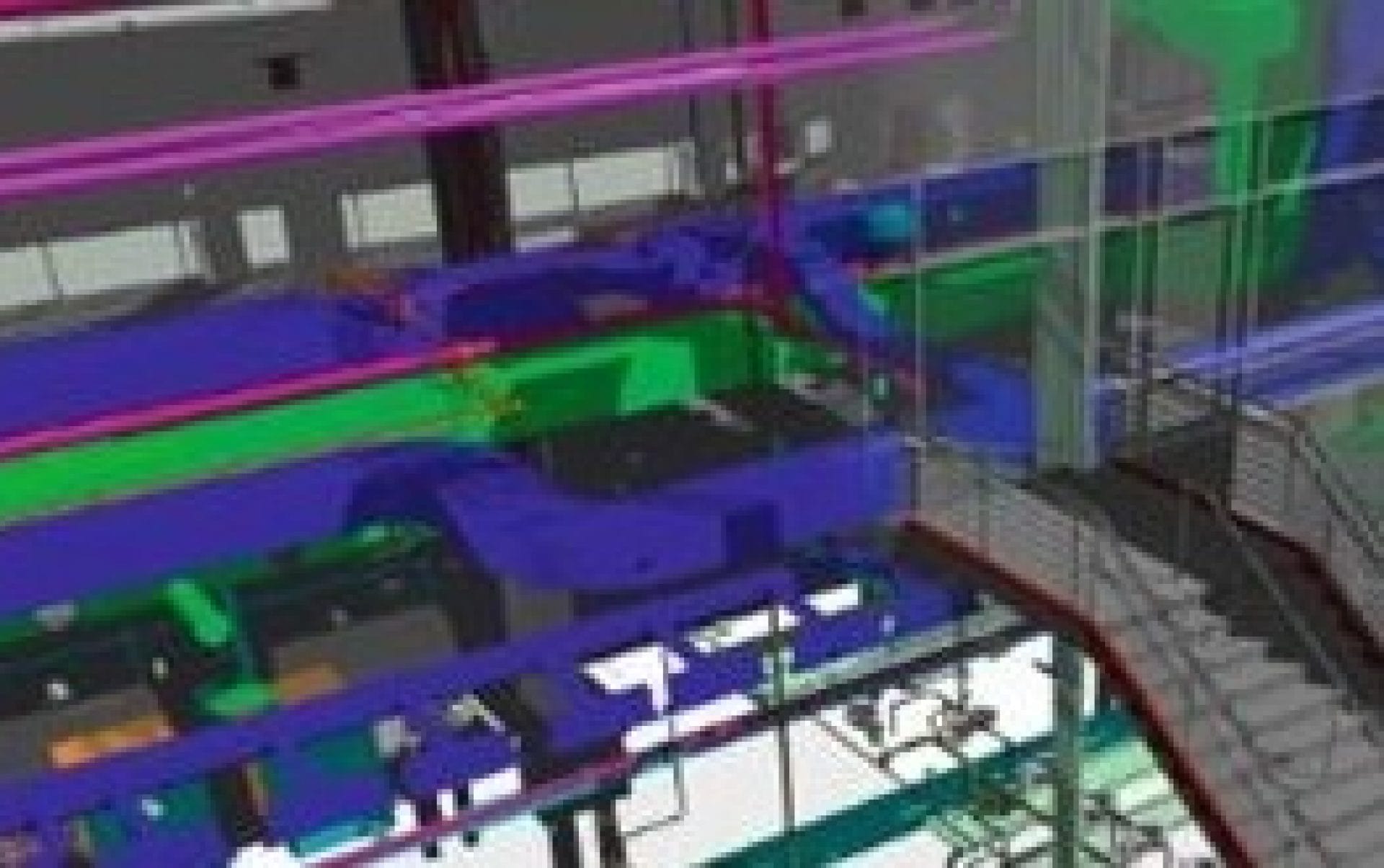

Spot potential clashes in 2D and 3D ensuring project accuracy.

Speed Collaboration in the Cloud

Increase teamwork and prevent errors by sharing your designs in real time. Save time in meetings or email exchanges, and help your different trade engineers check for clashes before you get to the jobsite.

Plug into a wider design ecosystem

Use the Hilti BIM/CAD libraries to easily insert 3D objects directly into AutoCAD®, Revit® and Tekla Structure – bringing your detailed Hilti application designs into the whole of your building design.

THE HILTI BIM/CAD LIBRARY

Integrating directly into AutoCAD®, Revit® and Tekla Structure

Hilti’s BIM/CAD library enables you to have an extensive library of Hilti products as 3D and 2D BIM/CAD objects – all able to integrate directly into leading construction design software, such as AutoCAD®, Revit® and Tekla Structure.

More than just a library of libraries, it allows you to choose which country you want to design and work in, ensuring global code compliance.

Explore Hilti’s BIM/CAD Library to:

Search for an object by name or by the type of object – such as anchors, direct fastenings, firestop systems, modular support systems.

Choose whether you want a 2D or 3D model – all objects include detailed technical data, such as size, material, Hilti product numbers, material information.

Insert the object directly into your design

Export the product model and save it for later use.

ACCESS HILTI’S BIM/CAD OBJECTS

Connect to Hilti’s BIM/CAD objects or access Hilti objects through other BIM software systems, including:

Open Hilti BIM/CAD library

GET IN TOUCH

Partner with us to see how end-to-end digitisation can benefit your business

Even if you're a seasoned BIM user, we can show you new ways to extend its benefits beyond the design team. High-tech construction equipment can save labor, time, administration and reduce the scope for errors.

By leveraging new technologies and processes, we integrate your workflow into one, cohesive end-to-end structure.
