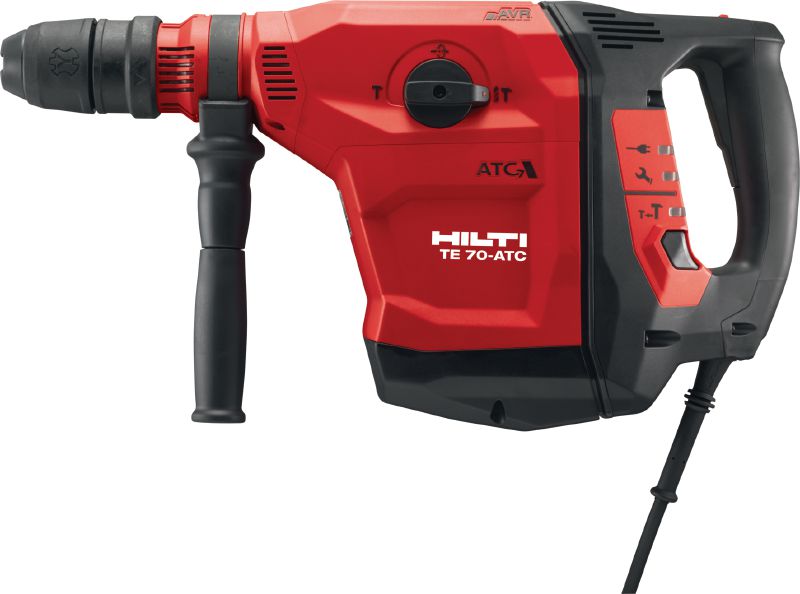

TE 70-ATC/AVR Rotary hammer
Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty drilling and chiselling in concrete
- Weight according EPTA-Procedure 01/2003 without battery: 10 kg
- Weight class: 7 kg
- Single impact energy: 14.5 J
Technical Data
Weight according EPTA-Procedure 01/2003 without battery
10 kg
Weight class
7 kg
Single impact energy
14.5 J
Hammer drilling diameter range
12 - 150 mm
Optimum hammer drilling range
20 - 55 mm
Hammer drilling RPM
245 rpm
Full hammering frequency
2830 impacts/minute
Functionality
Active Torque Control (ATC), Chiselling, Power reduction, Active Vibration Reduction (AVR)
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.6 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D
Triaxial vibration for chiselling in concrete
7.8 m/s² 2
Rated input power
2100 W
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
103 dB (A) 4
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Virtually maintenance-free brushless SR motor and double-chamber lubrication systems for longer service intervals and tool lifetime

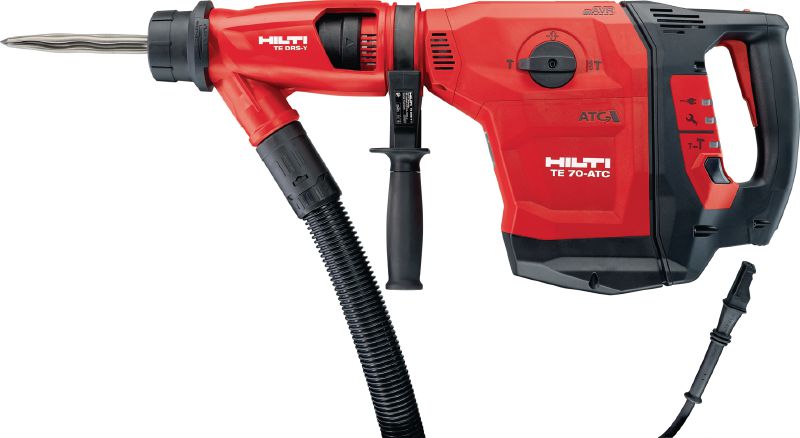

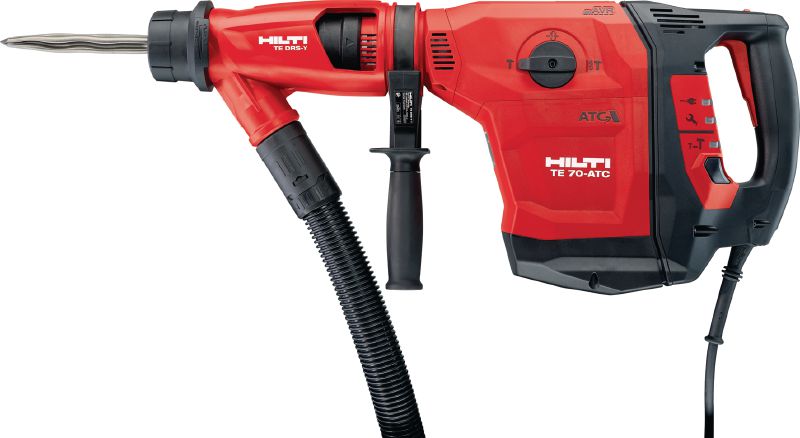

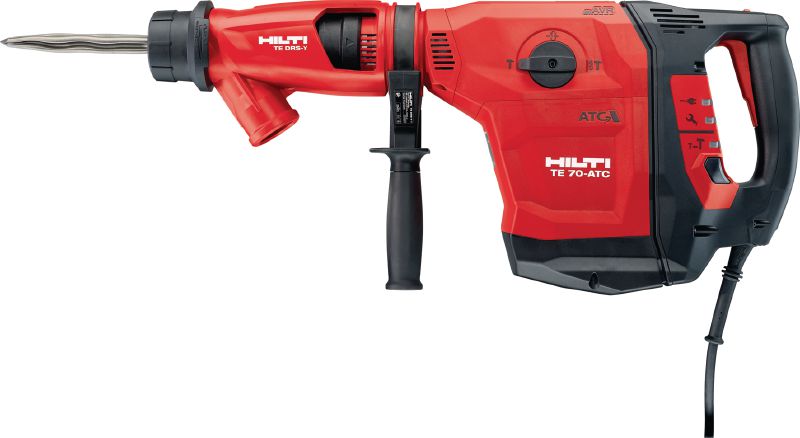

- Optional DRS-Y dust removal system collects up to 95% of dust
- Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite
Applications

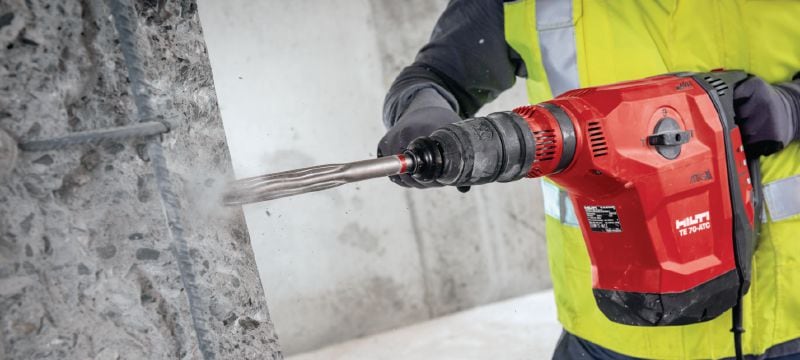

- Hammer drilling in concrete, masonry and natural stone with drill bits 12 - 150 mm in diameter
- Drilling holes for heavy-duty anchors from 20-40 mm in diameter

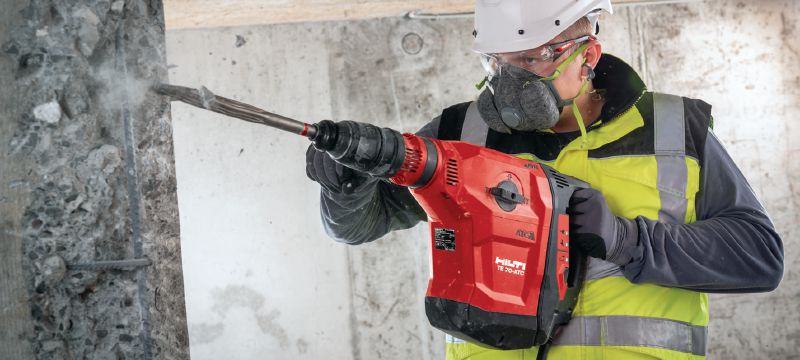

- Breaching and demolition with pointed and flat chisels
- Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter
- Drilling holes for heavy-duty anchors from 3/4" - 1-3/4" in diameter
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
- After the no-cost period, repair costs are capped
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Theft coverage helps to reduce financial risk and unexpected expenses.
- Loan tools during repair to reduce downtime.
- Individual labels and online visibility provide tool fleet transparency
