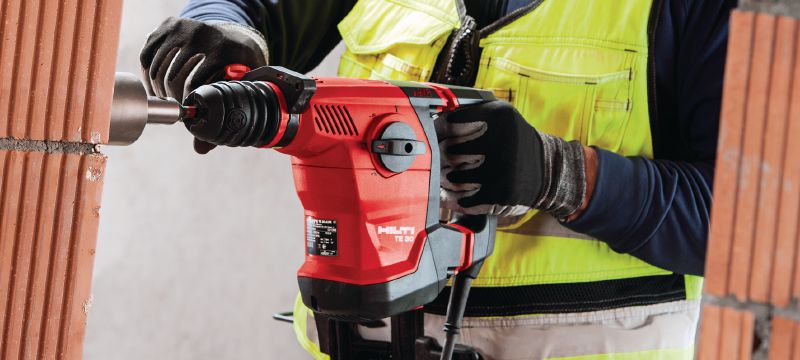

TE 30-AVR Rotary hammer

Combihammer TE 30-AVR 240V case #2160224

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

AUD 2,470.00

AUD 2,470.00 / 1 Piece

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

4.2 kg

Optimum hammer drilling range

10 - 20 mm

Single impact energy

3.6 J

Working mode

Hammer drilling, Drilling, Chisel setting, Chiselling

Hammer drilling diameter range

5 - 28 mm

Hammer drilling RPM

1100 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

9.7 m/s² ¹

Triaxial vibration for chiselling in concrete

8.8 m/s² ²

A-weighted emission sound pressure level

95 dB (A) ³

Rated input power

1010 W

Dimensions (LxWxH)

371 x 113 x 225 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (EN) [ 722.8 KB ]

Download

Features & Applications

Features

Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
Quick-change chucks – changing bits is fast and tool-free
Extra-long lifetime thanks to a highly robust chuck, motor components and casing
Active Vibration Reduction (AVR) makes working with the tool less tiring and increases productivity
Perfect balance, low weight and compact design for superior working comfort

Applications

Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm
Chiselling in brick and block, corrective chiselling and surface finishing on concrete
Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
Driving anchor screws and concrete screw anchors
