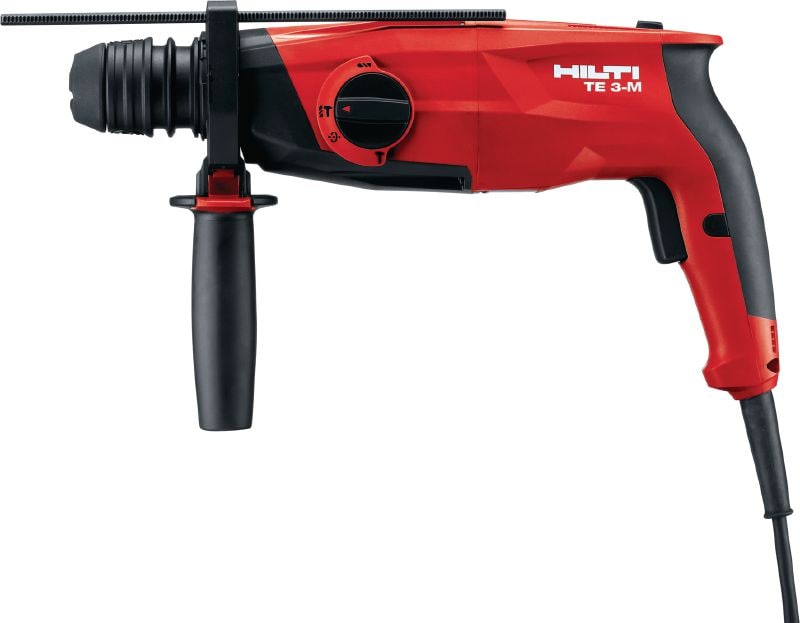

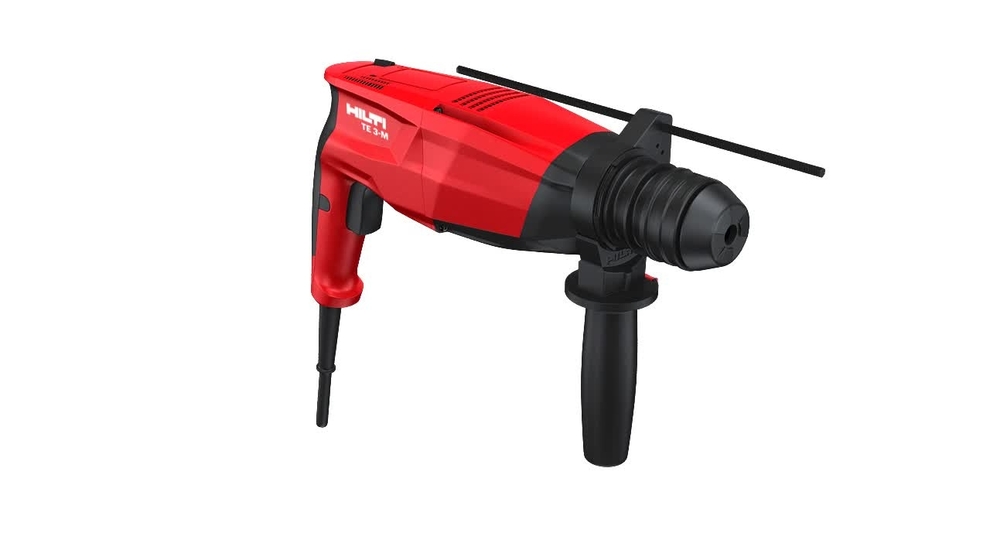

TE 3-M Rotary hammer

Rotary hammer TE 3-M 240V case #2198255

Configurator

Technical Data

Documents

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

AUD 715.00

AUD 715.00 / 1 Piece

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

3.1 kg

Optimum hammer drilling range

6 - 16 mm

Single impact energy

2.5 J

Working mode

Chiselling, Drilling, Hammer drilling, Chisel setting

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

1070 rpm

Full hammering frequency

5160 impacts/minute

Functionality

Removable chuck, Reverse mode, Depth gauge, Chipping, 2nd gear for drilling in metal

Triaxial vibration value for hammer drilling into concrete (ah,HD)

15.2 m/s² ¹

Triaxial vibration for chiselling in concrete

11.1 m/s² ²

A-weighted emission sound pressure level

94 dB (A) ³

Rated input power

850 W

Dimensions (LxWxH)

377 x 88 x 204 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Material safety datasheet

Operating Instruction

pdf Material safety datasheet Hilti Grease (EN) [ 722.8 KB ]

Download

Features & Applications

Features

Triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling, rotary-only drilling and chiselling
850 W motor provides high performance and overload protection
Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
360° side handle with quick-set depth gauge – easily adjustable for a firm grip in any position, even in tight spaces
Electronic switch for precise hole-starting

Applications

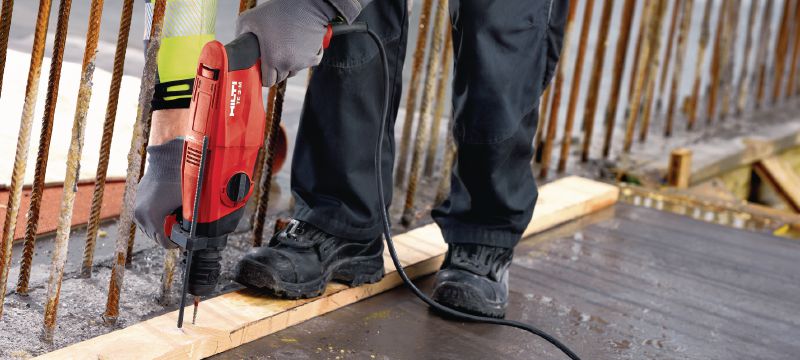

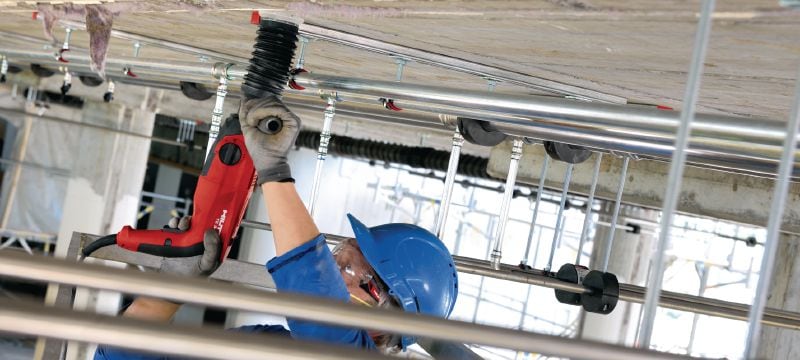

Drilling and hammer drilling in concrete and masonry

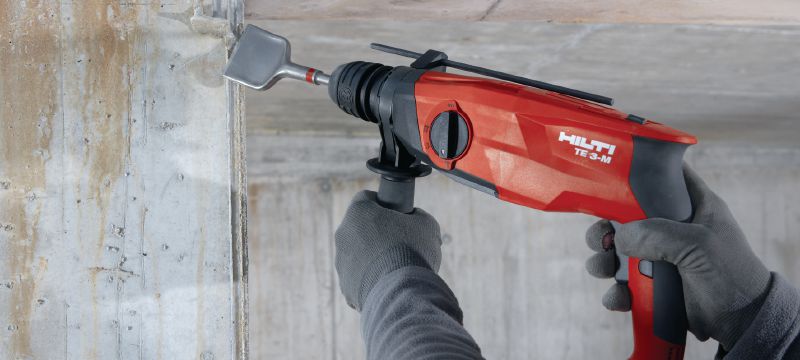

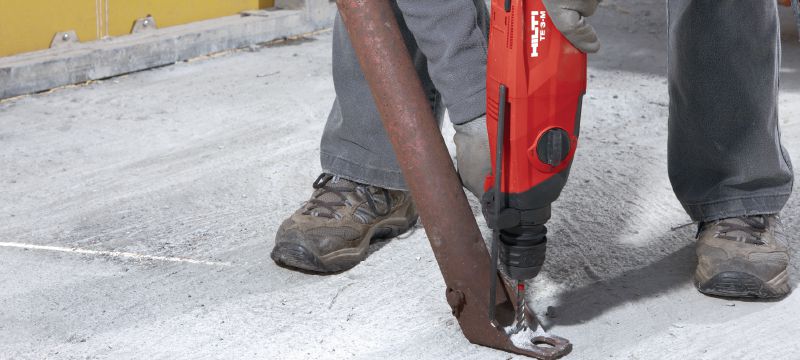

Corrective chiselling and light channel chasing in concrete and masonry
Occasional drilling in wood and steel with the optional quick-release chuck
Cutting socket recesses in masonry
Driving screws using optional bit holders
