TE 4-A22 Cordless rotary hammer

TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd generation (68189)

TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69379)

TE 4-A22,TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69374)

TE 4-A22, TE 4-A22 (HNA) Cordless rotary hammers G02 2nd Generation (69375)

Compact D-grip 22V cordless rotary hammer with superior handling in serial applications

Weight according EPTA-Procedure 01/2003 without battery: 3.3 kg
Optimum hammer drilling range: 4 - 14 mm
Single impact energy: 2 J

Customers also searched for SDS drill, drill or hammer drill.

Customise your kit

Tool Body

Tool body with cardboard box Includes: 1x Comfort side handle assy, 1x Hilti Grease

How many kits do you want to order?

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

AUD 212.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

3.3 kg

Optimum hammer drilling range

4 - 14 mm

Single impact energy

2 J

Hammer drilling diameter range

4 - 18 mm

Hammer drilling RPM

1050 rpm

Full hammering frequency

5200 impacts/minute

Functionality

Integrated Dust Removal System (DRS), Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

13.1 m/s² ¹

A-weighted emission sound power level

99 dB (A) ²

A-weighted emission sound pressure level

88 dB (A) ³

Dust removal system available

TE DRS-4-A, TE DRS-D, TE DRS-S

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 722.8 KB ]

Download

Features & Applications

Features

Ergonomically designed D-grip for comfortable use over long periods
Robustly built and engineered specifically for high-performance cordless drilling
Excellent performance-to-weight ratio and compact design
Virtually dustless drilling when used with the DRS-4-A dust removal system
Electronic switch for precise hole-starting

Applications

Drilling and hammer drilling in concrete and masonry
Occasional drilling in wood and steel with optional chuck adapter
Screwdriving using the special bit holder with TE-C (SDS Plus) connection end

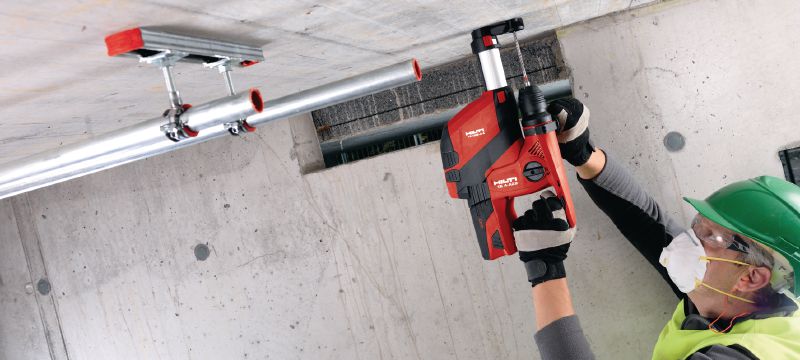

Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)

For approval or certificate information, please see individual items.
