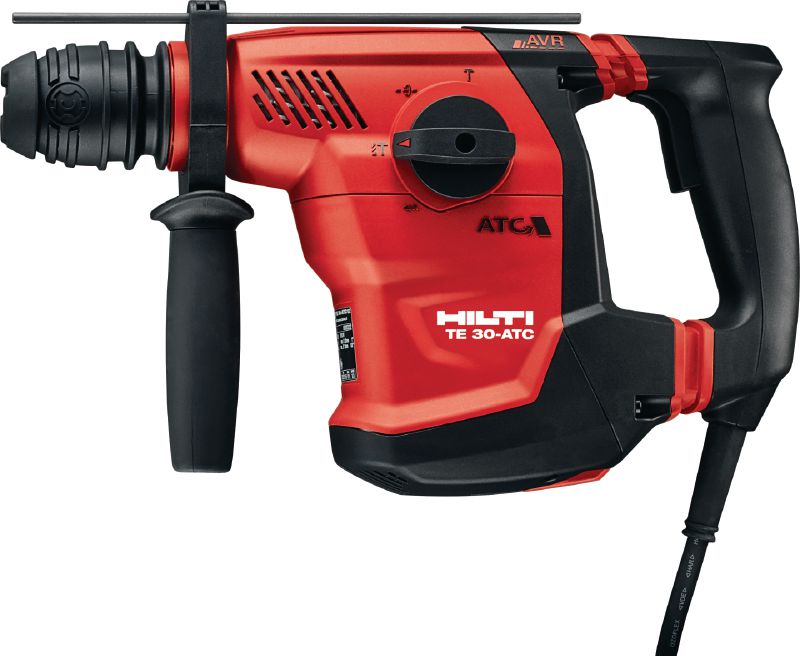

TE 30-ATC/AVR Rotary hammer

Combihammer TE 30-ATC 240V case #2069953

L062670.tif
L067642.tiff
L067648.tiff
L067677.tiff
L069220.tiff

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Torque Control (ATC) and Active Vibration Reduction (AVR)

  • Weight according EPTA-Procedure 01/2003 without battery: 4 kg
  • Optimum hammer drilling range: 10 - 28 mm
  • Single impact energy: 3.6 J

Customers also searched for rotary hammer drill,  roto hammer,  sds plus hammer drill or corded rotary hammer.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 3,170.00
AUD 3,170.00
/
1 Piece

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
4 kg
Optimum hammer drilling range
10 - 28 mm
Single impact energy
3.6 J
Working mode
Hammer drilling, Chiselling, Drilling
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
850 rpm
Full hammering frequency
4500 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Removable chuck, Reverse mode, Depth gauge, Hammer drilling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10 m/s² 1
Triaxial vibration for chiselling in concrete
10.2 m/s² 2
A-weighted emission sound pressure level
91 dB (A) 3
Rated input power
1010 W
Dimensions (LxWxH)
371 x 109 x 218 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 722.8 KB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Brushless motor for exceptionally high performance and superior system efficiency
  • Quick-change chucks – changing bits is fast and tool-free
  • Extra-long lifetime thanks to a highly robust chuck, motor components and casing

Applications

  • Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 10-20 mm
  • Drilling holes for rebar doweling, diameter range 4 - 28 mm, recommended range 10 - 20 mm
  • Corrective chiselling
  • Drilling in wood, metal and other materials using the quick-release chuck
  • Driving and removing screws using the quick-release chuck

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
  • 3-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Loan tools during repair to reduce downtime.
  • Individual labels and online visibility provide tool fleet transparency
More information about Fleet Management
