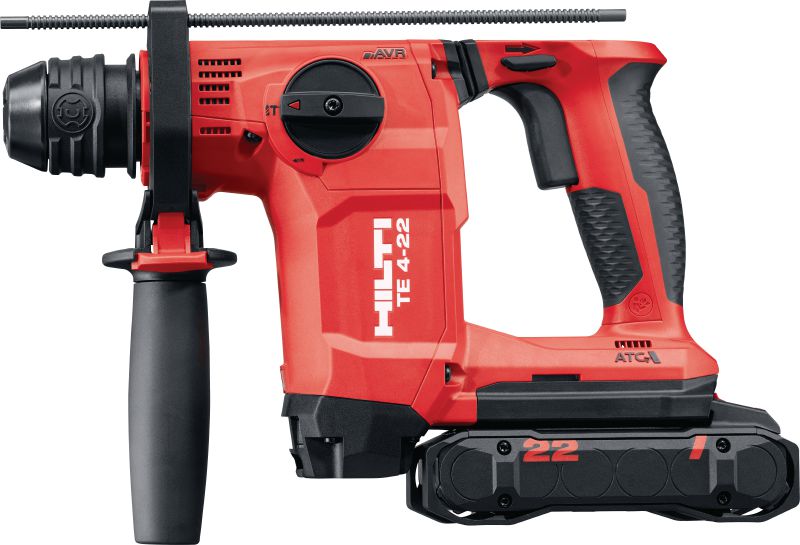

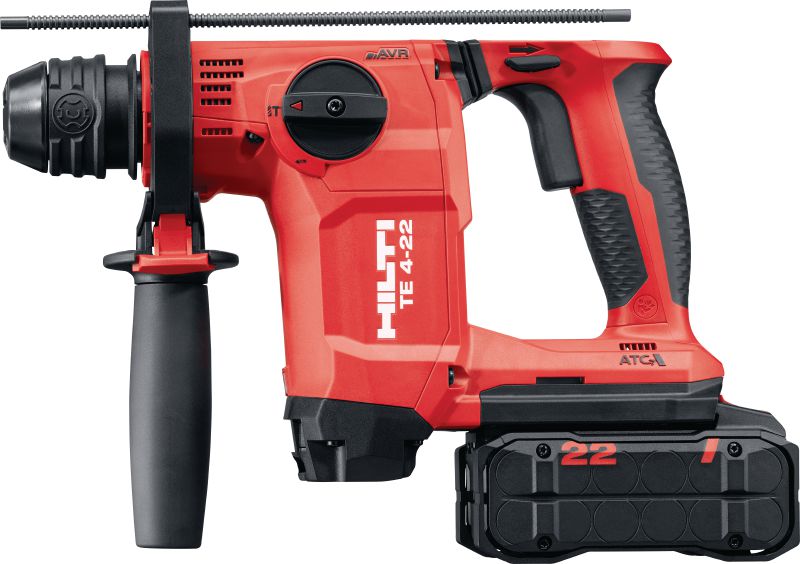

TE 4-22 Cordless rotary hammer

Compact SDS Plus cordless rotary hammer with our best performance-to-weight ratio for overhead drilling (Nuron battery platform)

Weight according EPTA-Procedure 01/2003 without battery: 2.45 kg
Optimum hammer drilling range: 4 - 14 mm
Single impact energy: 2.3 J

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 684.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

2.45 kg

Optimum hammer drilling range

4 - 14 mm

Single impact energy

2.3 J

Hammer drilling diameter range

4 - 28 mm

Hammer drilling RPM

1050 rpm

Full hammering frequency

5100 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Reverse mode, LED working light

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.3 m/s² ¹

A-weighted emission sound power level

98 dB (A) ²

A-weighted emission sound pressure level

90 dB (A) ³

Dust removal system available

TE DRS-4/6, TE DRS-C, TE DRS-D

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 722.8 KB ]

Download

Features & Applications

Features

Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

Drilling and hammer drilling in concrete and masonry

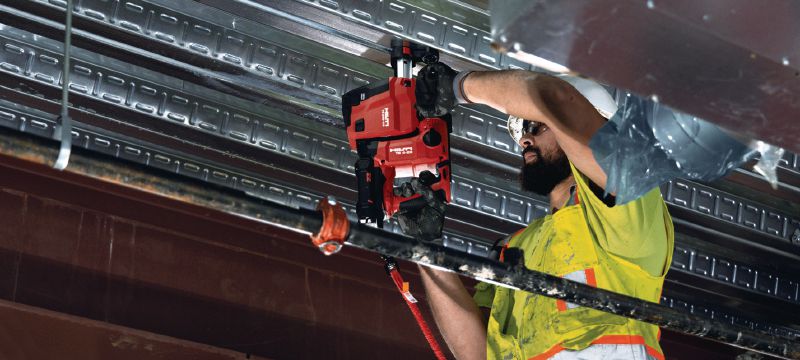

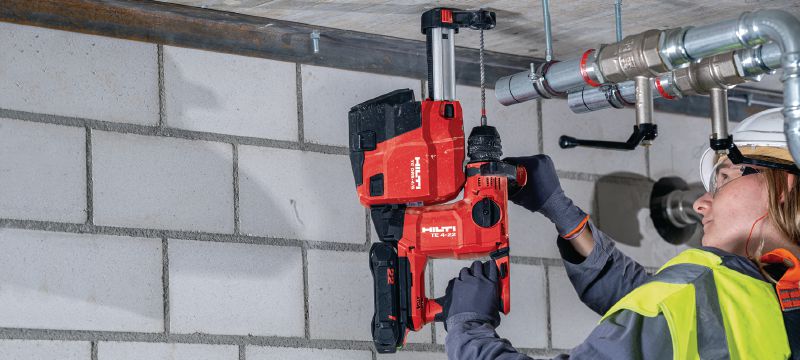

Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings

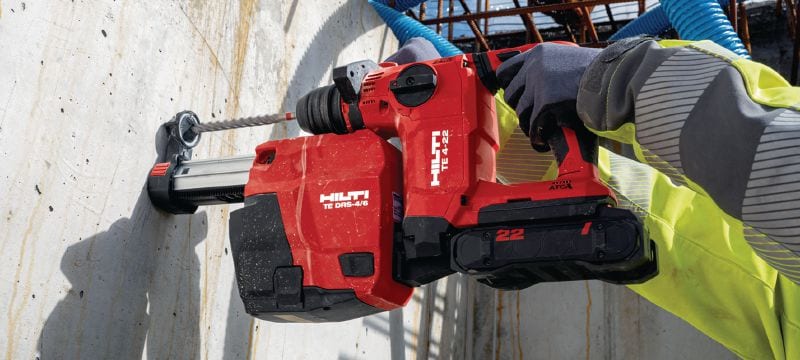

Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)

For approval or certificate information, please see individual items.
