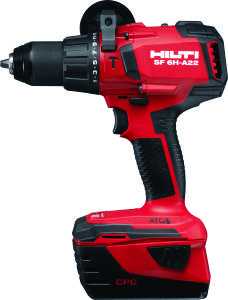

SF 6H-A22 Cordless hammer drill driver

SF 6H (02) + 2 x 22V/5.2Ah + Chgr #3671630

L116190 (197159)
L116207 (197168)
L116808_cropped (199919)
L116827_cropped (199894)
L116844_cropped (199948)
L117233_cropped (199914)
L117246_cropped (199909)
L117262_cropped (199895)
L117342_cropped (199912)
L117471_cropped (199915)

Power-class cordless 22V hammer drill driver with Active Torque Control and electronic clutch for universal use on wood, metal, masonry and other materials

  • Maximum torque (soft/hard joint): 65 Nm (soft joint), 80 Nm (hard joint)
  • No load RPM: gear 1: 490 rpm; gear 2: 2000 rpm
  • Chuck clamping range: 2 - 13 mm

Customers also searched for sf 6h, drill driver, sf, drill or battery drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 1,950.00
AUD 1,950.00
/
1 Piece

Technical Data

Maximum torque (soft/hard joint)
65 Nm (soft joint), 80 Nm (hard joint)
No load RPM
gear 1: 490 rpm; gear 2: 2000 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
209 x 87 x 212 mm
Tool body weight
1.686 kg
A-weighted emission sound pressure level
91 dB (A) 1
Rated voltage
21.6 V
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet LI-ION-BATTERIES >100Wh (EN) [ 215.6 KB ]

Features & Applications

Features

  • Outstanding performance-to-size ratio
  • Hilti’s exclusive Active Torque Control provides additional protection from tool over-rotation when bits stick
  • All metal gearbox, rubber bumpers and glass fibre reinforced housing ensure maximum robustness
  • Brushless motor provides high torque and application speeds while efficiently using battery power
  • Dual LED work lights in the tool foot illuminate your work area with minimal shadows

Applications

  • Hammer drilling in diameters up to 14 mm in brick, masonry, sand-lime block and aerated concrete

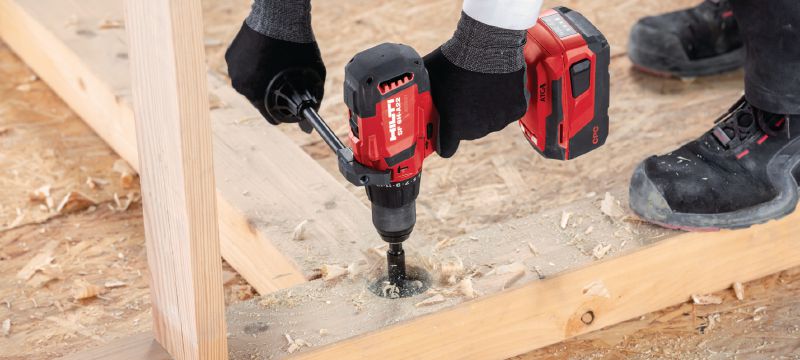

  • Drilling with auger and spade bits up to 32 mm diameter in wood
  • Cutting recesses and through-holes with hole saws up to 125 mm diameter
  • Fast drilling with high torque in diameters up to 13 mm in metal
  • Driving self-drilling screws up to 6.3 mm diameter at high speed in metal

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
  • 3-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Loan tools during repair to reduce downtime.
  • Individual labels and online visibility provide tool fleet transparency
More information about Fleet Management
