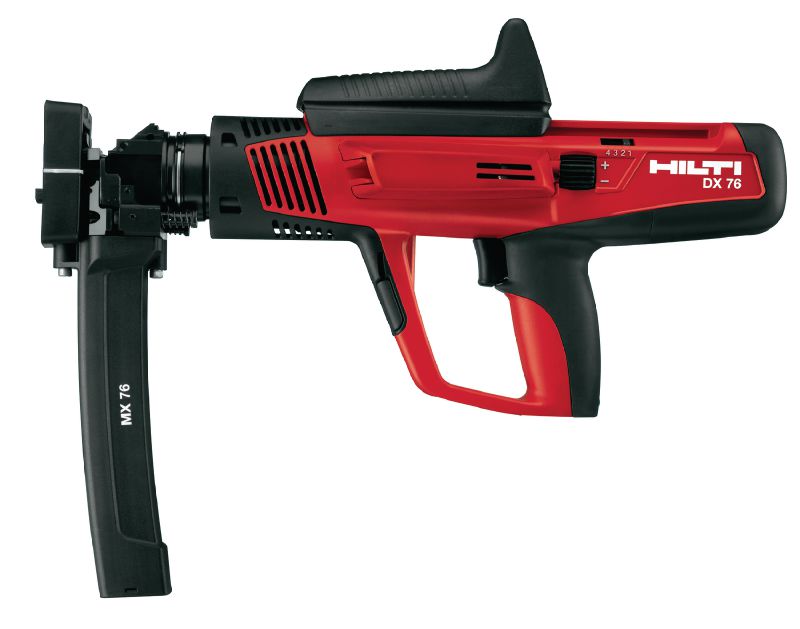

DX 76 Powder-actuated tool




Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks
- Dimensions (LxWxH): 450 x 101 x 352 mm
- Weight: 4.35 kg
- Fastener intake: Collated
Customers also searched for decking, siding, decking gun or decking nailer.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
You can not see your company prices
Discounted net
From AUD 7,950.00
Technical Data
Dimensions (LxWxH)
450 x 101 x 352 mm
Weight
4.35 kg
Fastener intake
Collated
Fastener length range
19 - 21 mm
Cartridge type
6.8/18 M10
Automatic piston return
No
Bluetooth
No
Hilti Connect
No
Power (max.)
609 J
Power regulation
Yes
Piston type
X-76-P-ENP
Documents
pdf DX 76 Quick Start Guide [ 10.6 MB ]
Features & Applications
Features
- Outstanding ergonomic design – padded, non-slip cycling grip and excellent balance means less fatigue during use
- Built-in safety mechanisms – for safer and more reliable operation
- Easy to clean and maintain on jobsites
- Ruggedly built to withstand extreme use
- Adjustable power regulator – precise control for more reliable fastenings
Applications
- Fastening composite metal decks to steel structures with a minimum thickness of 6 mm (1/4") for composite decking

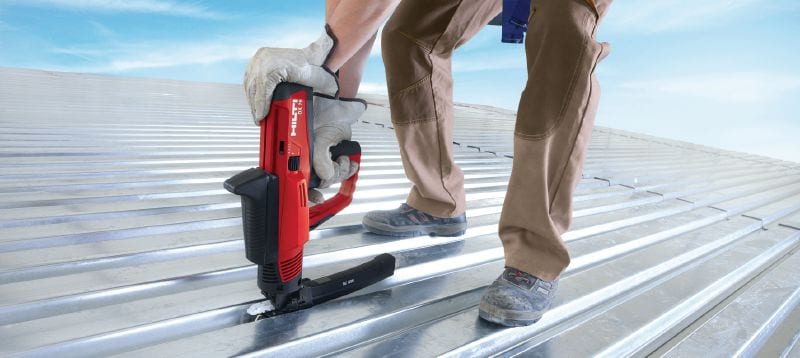

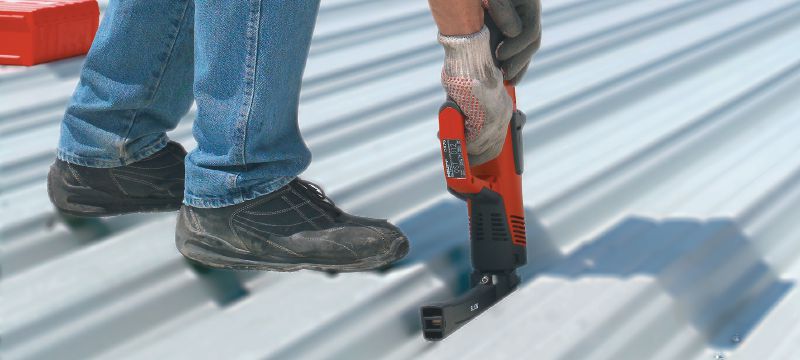

- Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

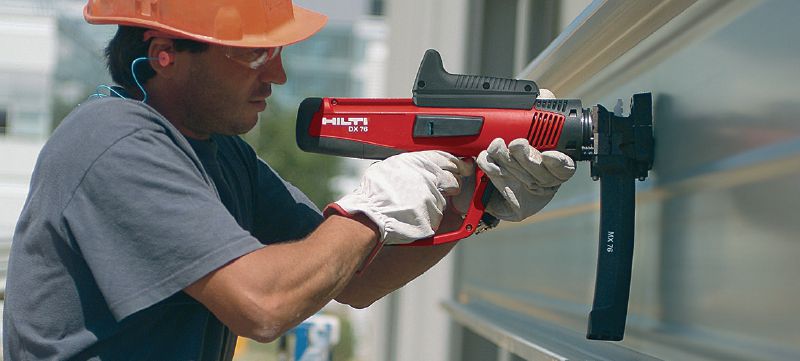

- Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
- Fastening grating elements to steel structures using grating accessories
- Fastening shear connectors on steel structures with HVB accessories
For approval or certificate information, please see individual items.
Related Products
Collated nail for fastening metal decks to steel structures using the DX 76 and DX 9 powder-actuated nailers
Collated .27 calibre long Clean-Tec cartridges for use with powder-actuated nailers for fastening metal decks
