Nuron

DD 150-U-22 Cordless core drill

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L601425 (3518593)
L601446 (3518645)
L150162_cropped (3583081)
L150173_cropped (3583083)
L150186_cropped (3583085)
L134126_cropped (4116331)
L134142_cropped (4116307)

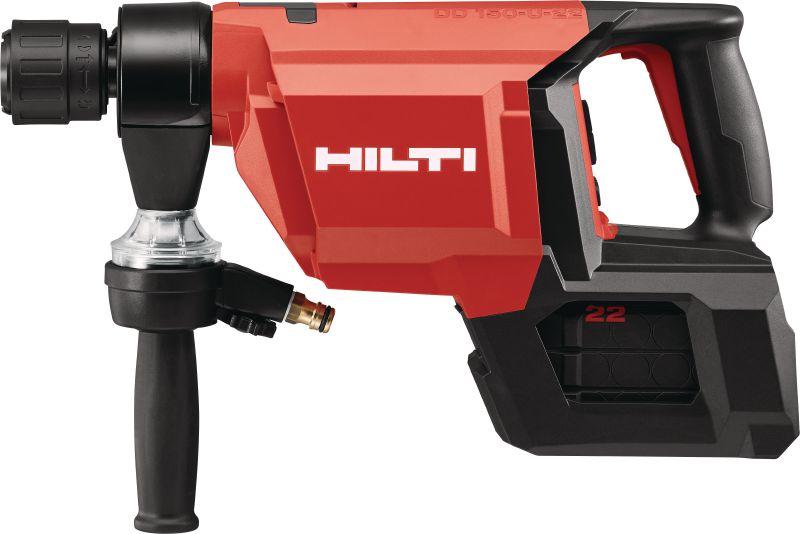

Cordless diamond coring machine for handheld or rig-based coring from 52-162 mm (2 – 6-3/8") in concrete or up to 252mm (10") in masonry (Nuron battery)

  • Diameter range: 52 - 162 mm
  • Base material: Masonry, Asphalt, Concrete, Reinforced concrete, Wood
  • Operation mode: Hand-held and rig-mounted drilling system

Customers also searched for Battery Core Drill, Core Drill, DD 150 or DD 150-U-22.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 4,200.00

Technical Data

Diameter range
52 - 162 mm
Base material
Masonry, Asphalt, Concrete, Reinforced concrete, Wood
Operation mode
Hand-held and rig-mounted drilling system
Rated input power
1650 W
Number of gears
20
Weight according EPTA-Procedure 01/2003 without battery
7.4 kg
Weight of complete system
19 kg
Dimensions (LxWxH)
453 x 150 x 254 mm
A-weighted emission sound pressure level
92 dB (A) 1
Corner accessibility
166 mm
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Operating Instruction
Material safety datasheet
Battery Recycling Information
pdf Operating Instruction DD 110-U-22 01, DD 150-U-22 01, Bulgarian, Czech, Greek, English, Hebrew, Croatian, Hungarian, Polish, Romanian, Slovak, Slovenian, Serbian [ 8.1 MB ]
pdf Operating Instruction DD 110-U-22 01, DD 150-U-22 01, Danish, German, English, Spanish, Estonian, Finnish, French, Italian, Lithuanian, Latvian, Dutch, Norwegian, Portuguese, Swedish [ 8.3 MB ]
pdf Operating Instruction C 6-22 / C8-22 (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.3 MB ]
pdf Operating Instruction Hilti Li-Ion, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 2.6 MB ]

Features & Applications

Features

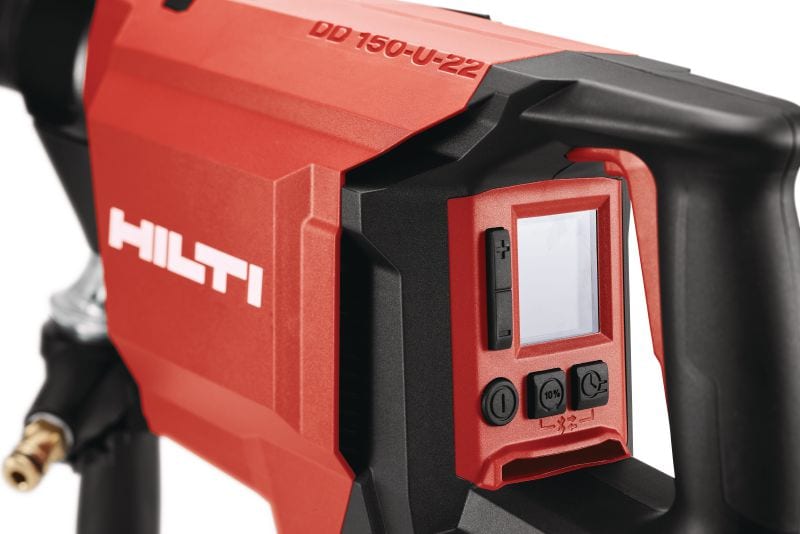

  • E-gears for higher performance – electronic gears set RPM/torque combinations for optimised drilling speeds at every diameter
  • Safer handheld coring – Active Torque Control (ATC) helps protect you from uncontrolled spinning if the core bit jams
  • More coring per charge – pair with new cordless optimised core bits for up to 30% more battery reach
  • Easier core removal – oscillating function helps shake loose stuck cores to save downtime
  • Less multi-tasking – Bluetooth® connects information from your water management system and vacuum all in one real-time display

Applications

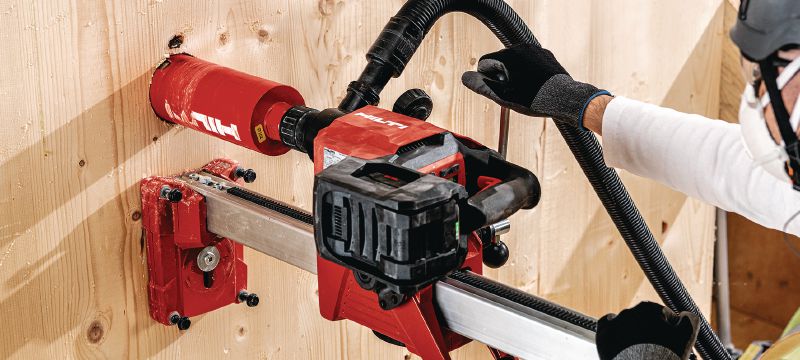

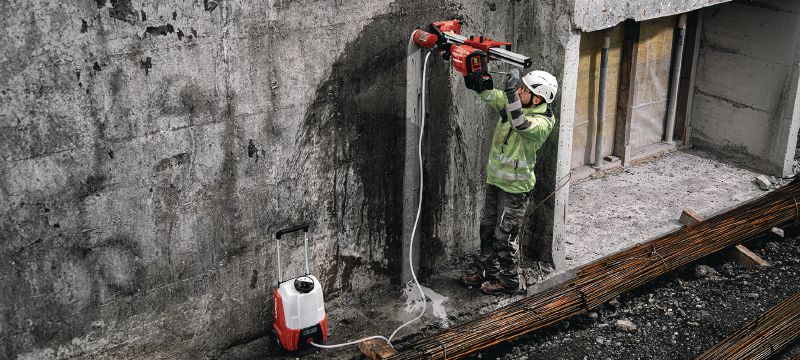

  • Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers

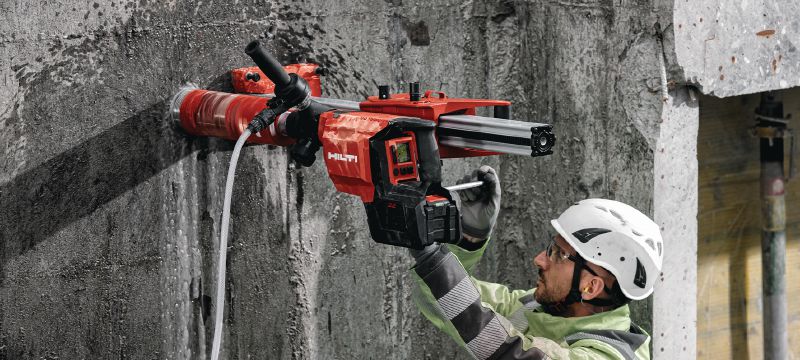

  • Handheld wet drilling for small pipe penetrations in plumbing applications

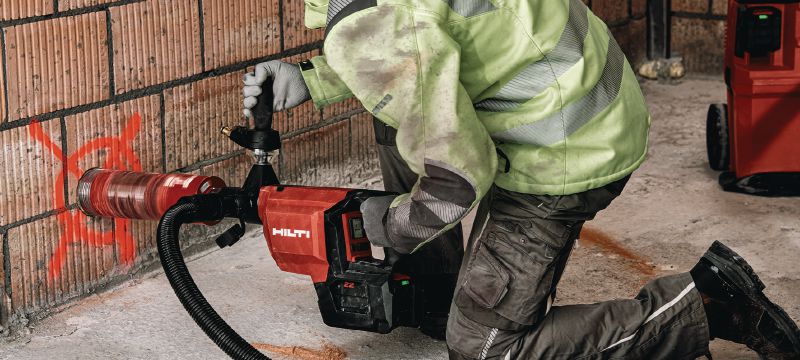

  • Handheld dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations
  • Handheld coring for large diameter sewage pipes, chimneys and cooker installations

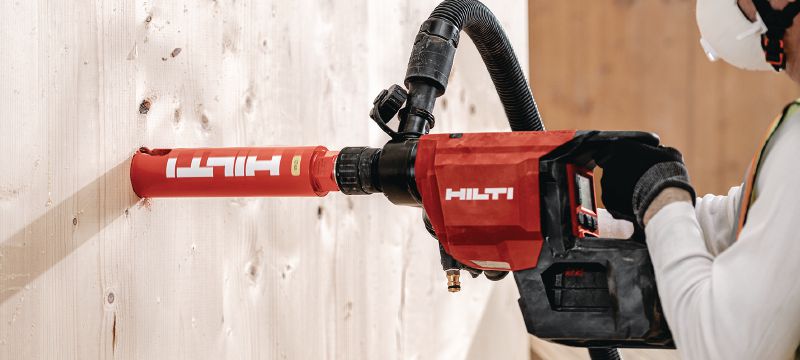

  • Hand-held core drilling in wood up to 202 mm (8") diameter and rig-based core drilling in wood up to 162 mm (6 1/4") diameter

For approval or certificate information, please see individual items.
