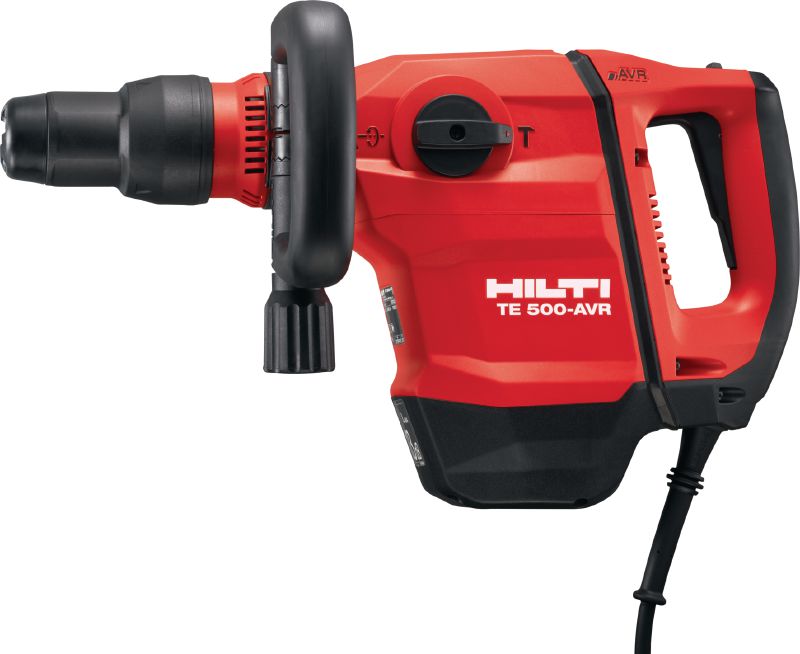

TE 500-AVR SDS-Max chipping hammer

L601737 (4390518)
L104297 (184530)
L108977_cropped (187930)
L108991_cropped (187933)
L109020_cropped (187947)

Versatile SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS-max)
  • Weight according EPTA-Procedure 01/2003 without battery: 6.3 kg

Customers also searched for te 500, breaker, wall breaker or chiseller.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 3,210.00

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS-max)
Weight according EPTA-Procedure 01/2003 without battery
6.3 kg
Single impact energy
8.5 J
Full hammering frequency
3510 impacts/minute
Max. chiselling performance
1000 cm³/min
Dimensions (LxWxH)
467 x 118 x 265 mm
Triaxial vibration for chiselling in concrete
8.2 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
96 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 722.8 KB ]

Features & Applications

Features

  • High versatility for a wide range of chiseling applications
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers

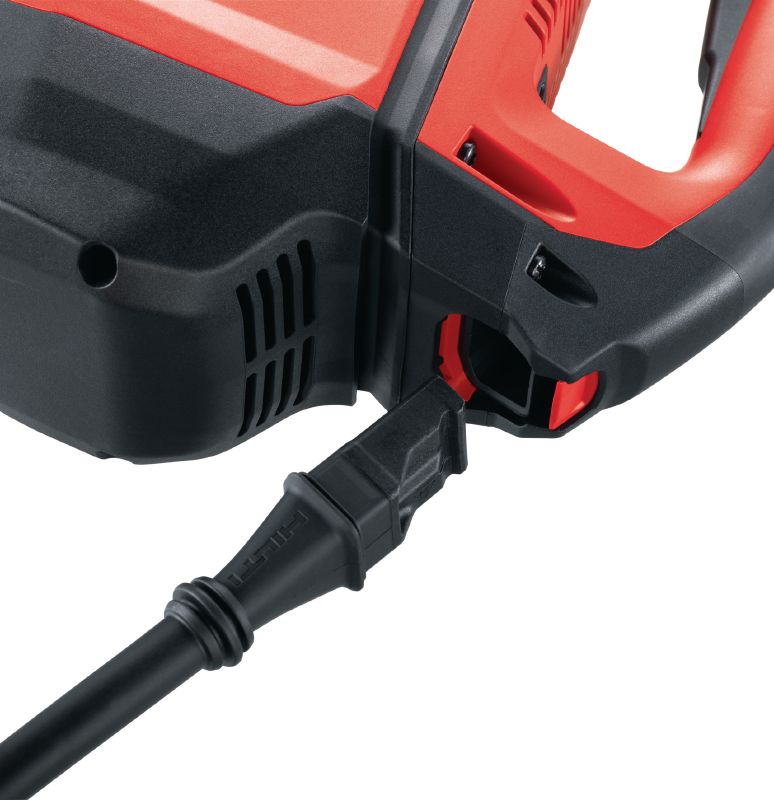

  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
  • Optional DRS-B dust removal system collects up to 95% of dust

Applications

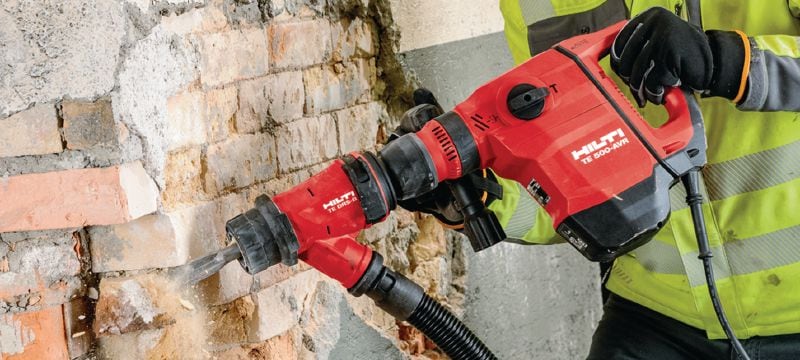

  • Chiseling on concrete and masonry walls
  • Channeling on concrete and masonry
  • Repairing concrete
  • Enlarging breaches
  • Light chipping on concrete or masonry

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
  • 3-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Loan tools during repair to reduce downtime.
  • Individual labels and online visibility provide tool fleet transparency
More information about Fleet Management
