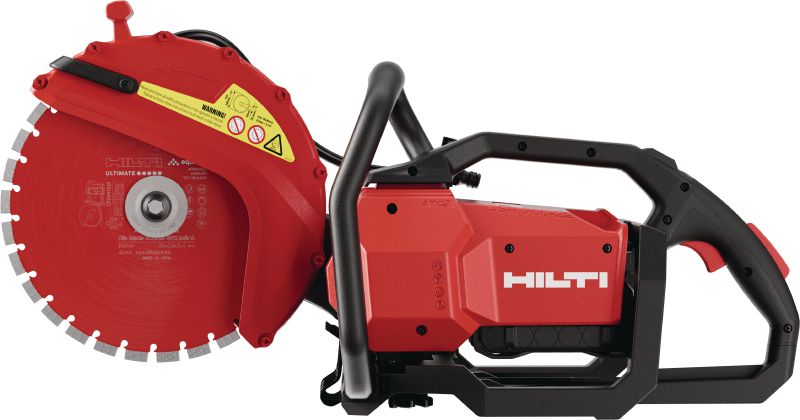

DSH 700-22 ATC Battery-powered cut-off saw (300mm)
Versatile rear-handle battery cut-off saw, for cutting up to 120 mm with 300 mm blades in concrete, masonry and metal (Nuron battery platform)
- Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
- Dimensions (LxWxH): 740 x 290 x 350 mm
- Protection class: IEC Battery operated
Customers also searched for Battery Saw, Demo Saw, Cut-Off Saw or Cordless Saw.
Technical Data
Base materials
All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
Dimensions (LxWxH)
740 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
107 dB (A) 1
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Matching power-class – our second generation offers improved power to help match the performance and feel of a 70cc gas cut-off saw, all without the fumes, noise or high vibration rate
- Advanced safety features – new 3D Active Torque Control (ATC) stops unexpected saw kickback in under 1 second and fast-acting blade brake stops the blade in ≤ 4 seconds after releasing the trigger
- Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimised blades (see technical data below)
- Push button start – green LED power button indicates whenever the tool is ON and automatically turns the tool OFF after 1 minute
- Versatile handling – weighing 13.5 kg (with two B 22-255 batteries and a 300 mm blade), this cut-off saw can be used for both ground-facing and front-facing applications
Applications

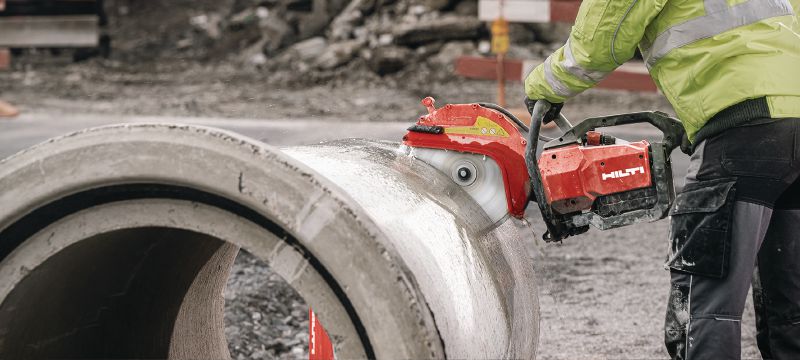

- Construction work – cutting out openings in brick or concrete walls

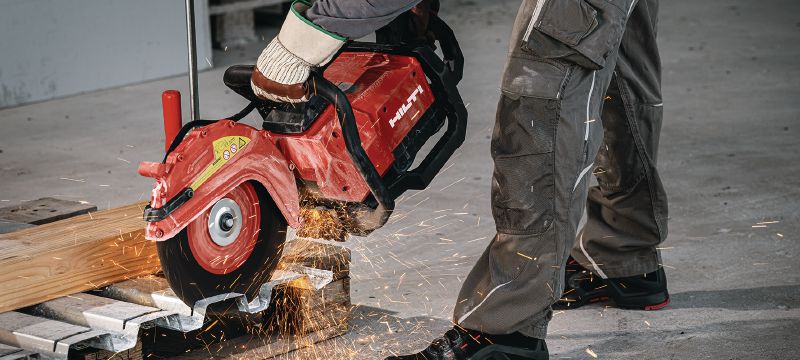

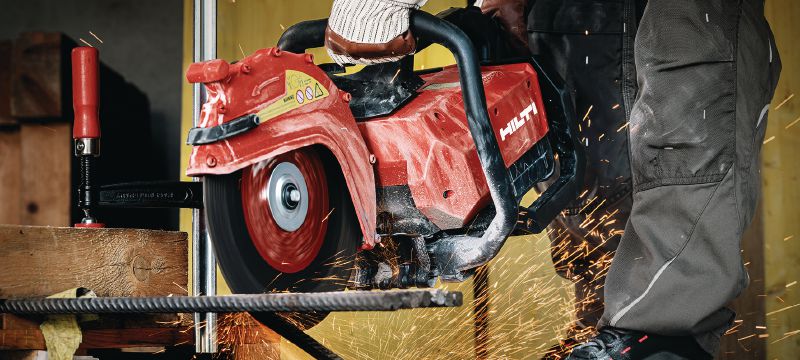

- Metalwork – cutting steel profiles, pipes and steel sheets
- Laying paving – cutting curbstones and paving slabs to size

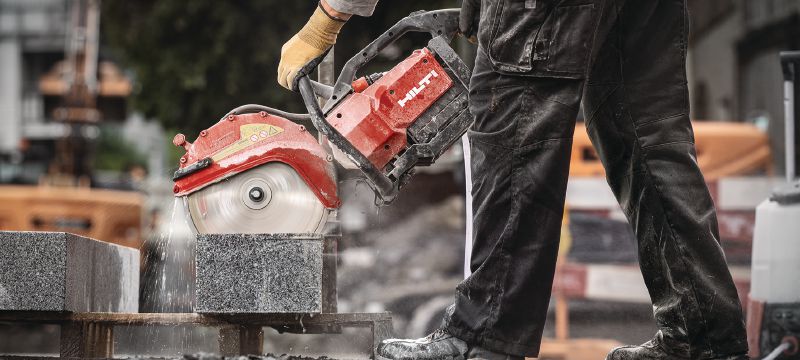

- Masonry work – cutting bricks and blocks to size
- Floor construction – cutting expansion joints in fresh concrete
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
- Smooth on-site pick-up and delivery thanks to our strong partnerships with trusted carriers
Fleet Management
- Individual labels and online visibility provide tool fleet transparency
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
- Loan tools during repair to reduce downtime.
- Temporary tools for peak times and special applications help to reduce investments.
