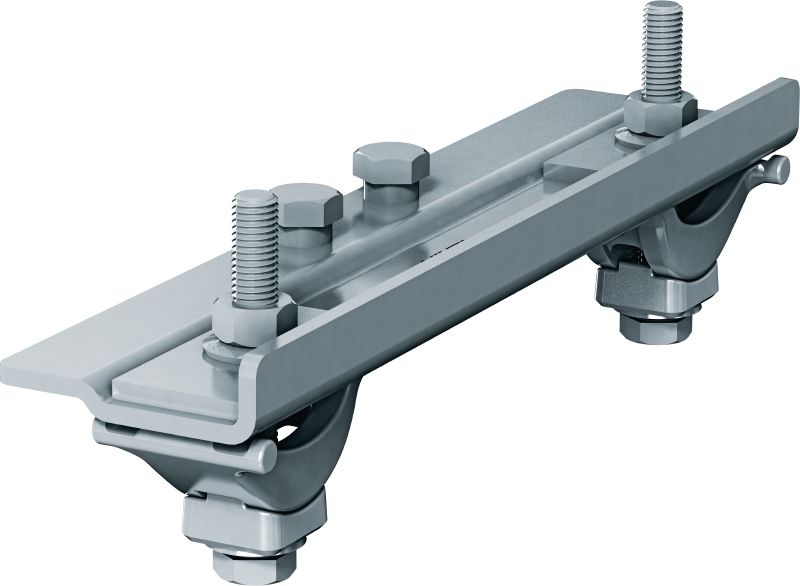

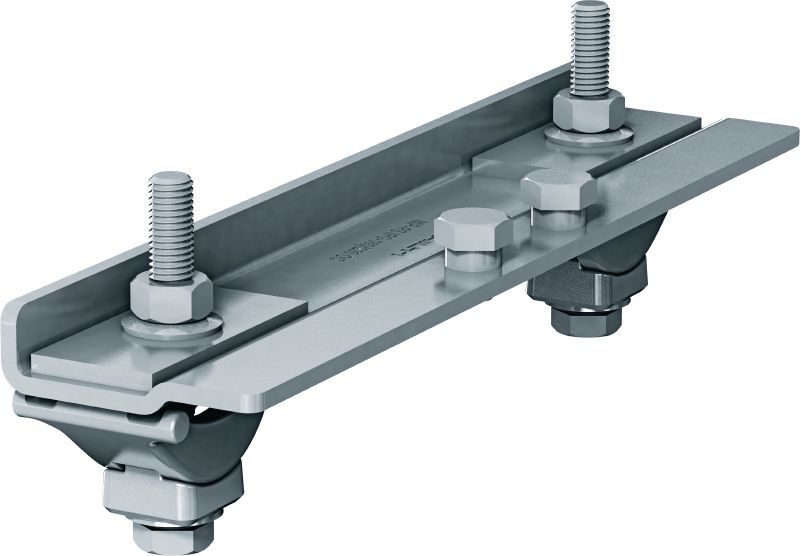

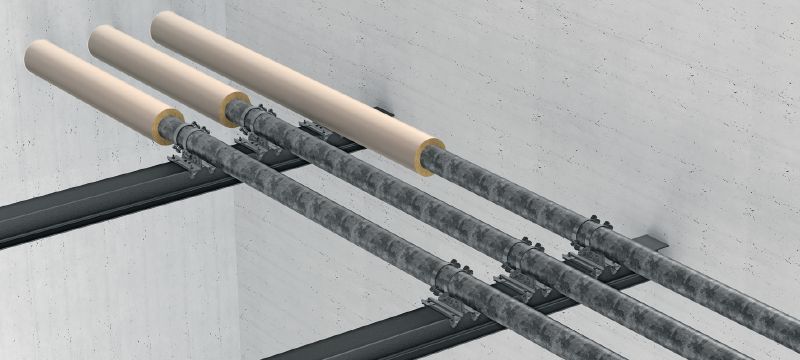

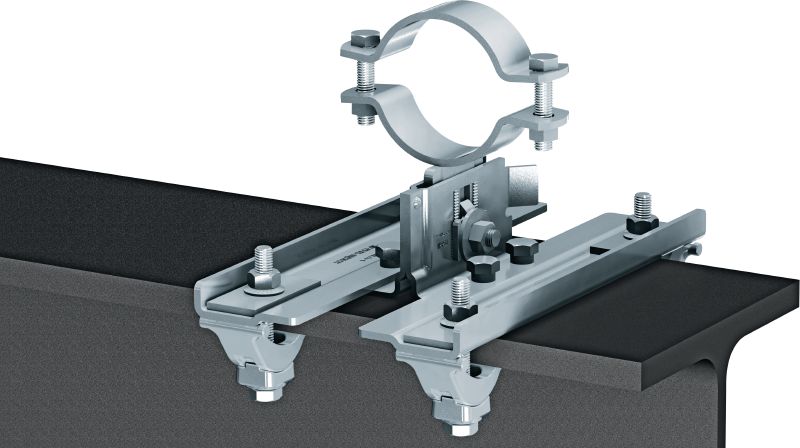

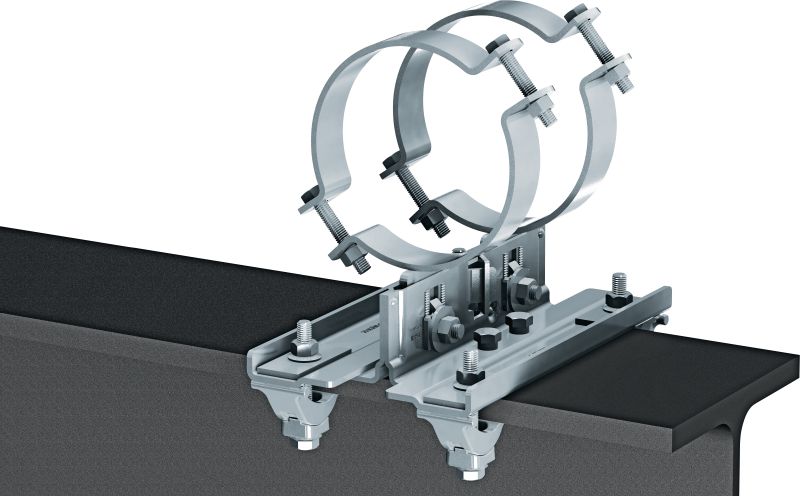

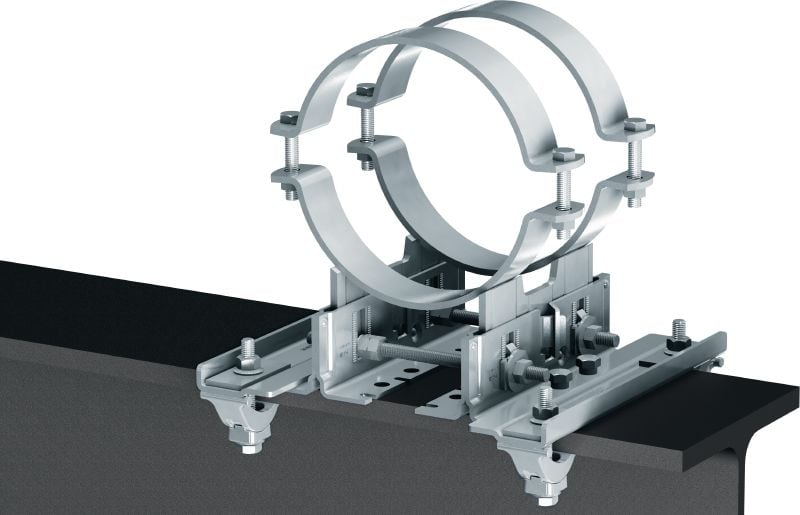

Beam connector MP-PS IFG 160/230 OC #2331073
- Fire resistance (yes/no): No
- Temperature resistance: -20 - 300 °C
- Material composition: Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3, Cylindrical washers: Stainless Steel X5CrNi18-10 per EN10088-3
Choose options
Pack size
- 4 pc
Quantity
Packs
Total Piece
4
Discounted net
AUD 424.00
AUD 106.00 / 1 Piece
Technical Data
Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3, Cylindrical washers: Stainless Steel X5CrNi18-10 per EN10088-3
Material thickness
All sheet metal parts: 5mm
Surface finish
Beam clamps and rectangular washer: DIN EN ISO 1461, baseplate: ZM300, bolts/nuts: ISO 10684, Retaining washers: ISO 10683, Cylindrical washer: Stainless Steel
Hot-dip galvanized
Yes
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Modular Support
Clamping screw
M12x95
Tightening torque
84 Nm
Wrench size
19 mm
Cross section width - b
77.33 mm
Height - H
103 mm
Width - B
77 mm
Length
330 mm
Weight
2.23 kg
Steel beam thickness
3 - 36 mm
Steel beam thickness min.
3 mm
Steel beam thickness min. (conversion inch fractional)
1/8 in
Steel beam thickness max.
36 mm
Steel beam thickness max. (conversion inch fractional)
1-7/16 in
Steel beam width min
160 mm
Steel beam width max
230 mm
Steel beam width
160 - 230 mm
