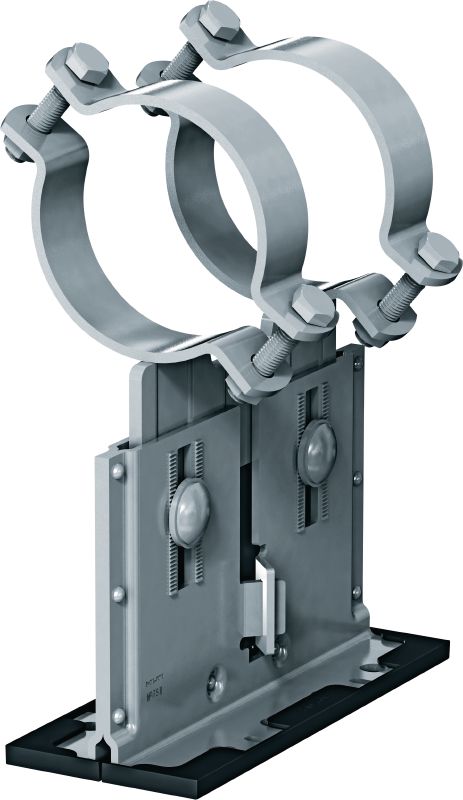

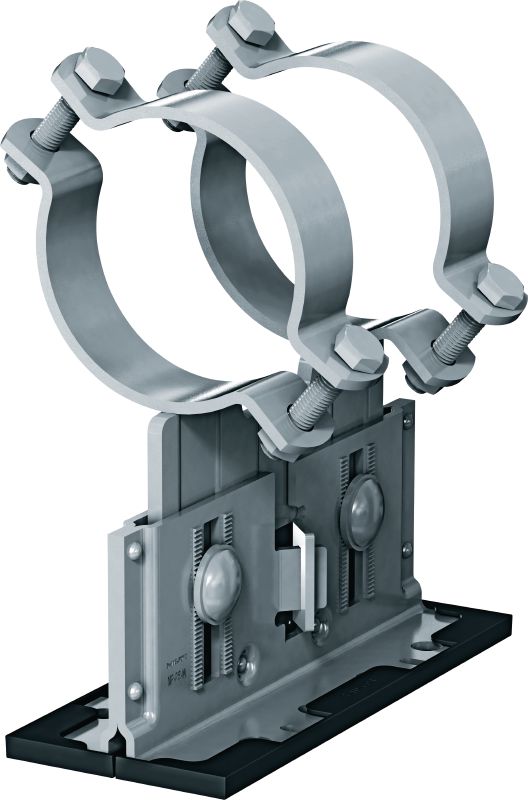

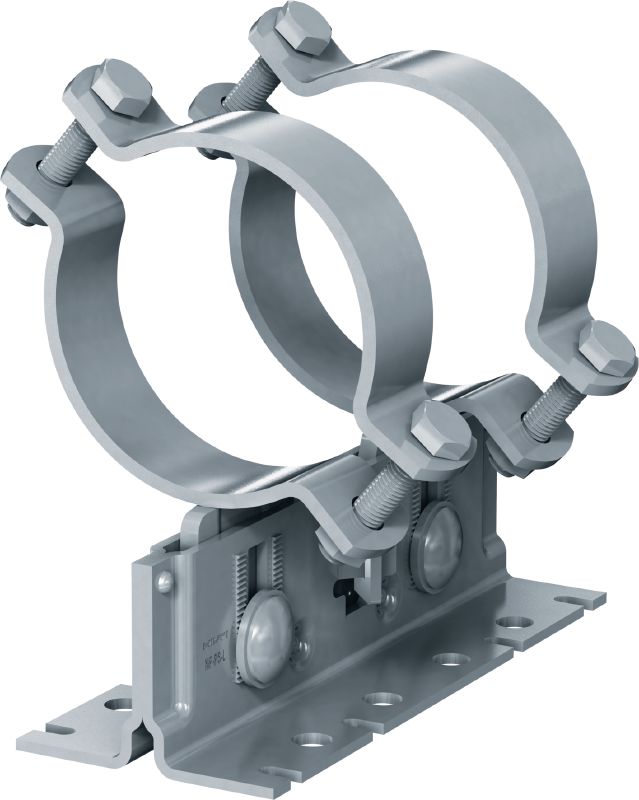

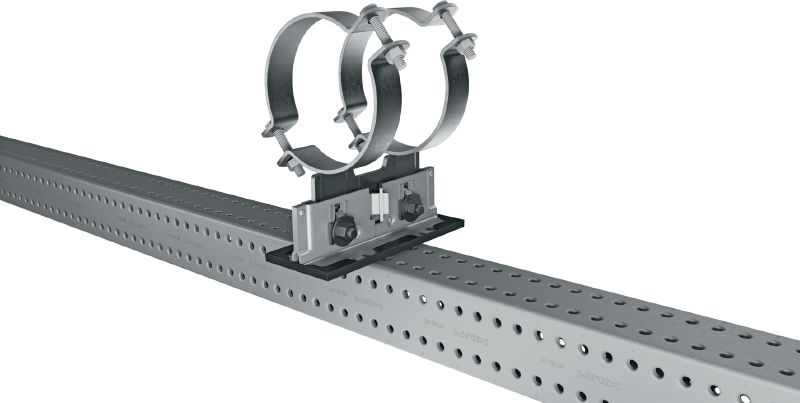

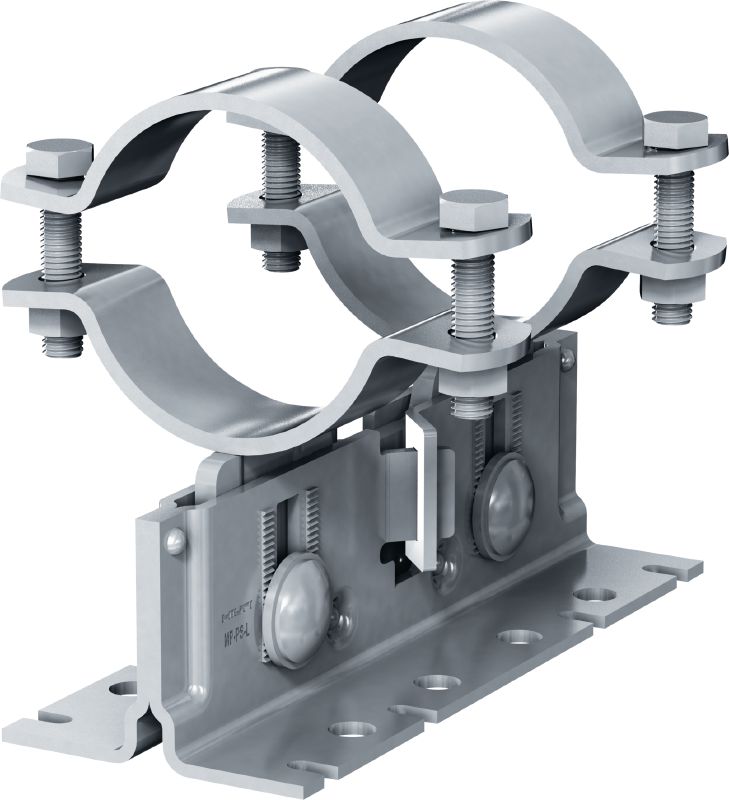

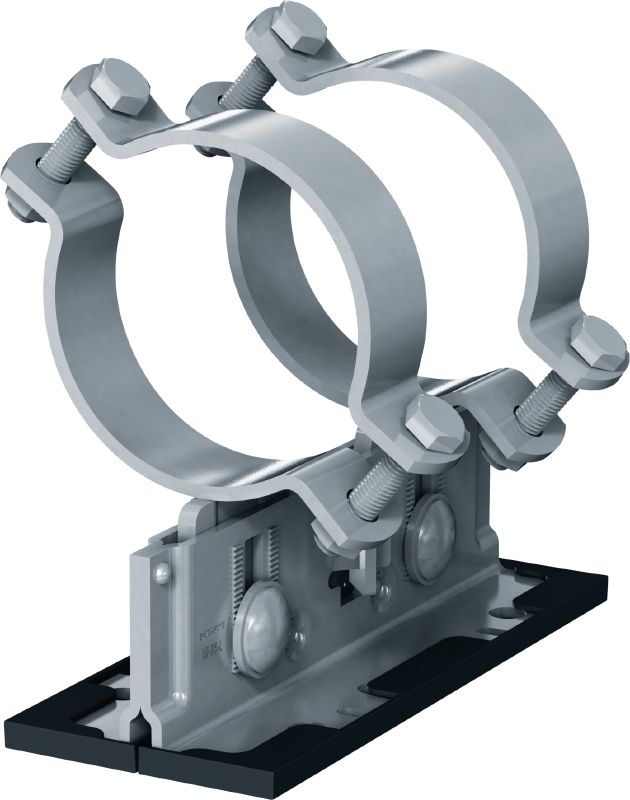

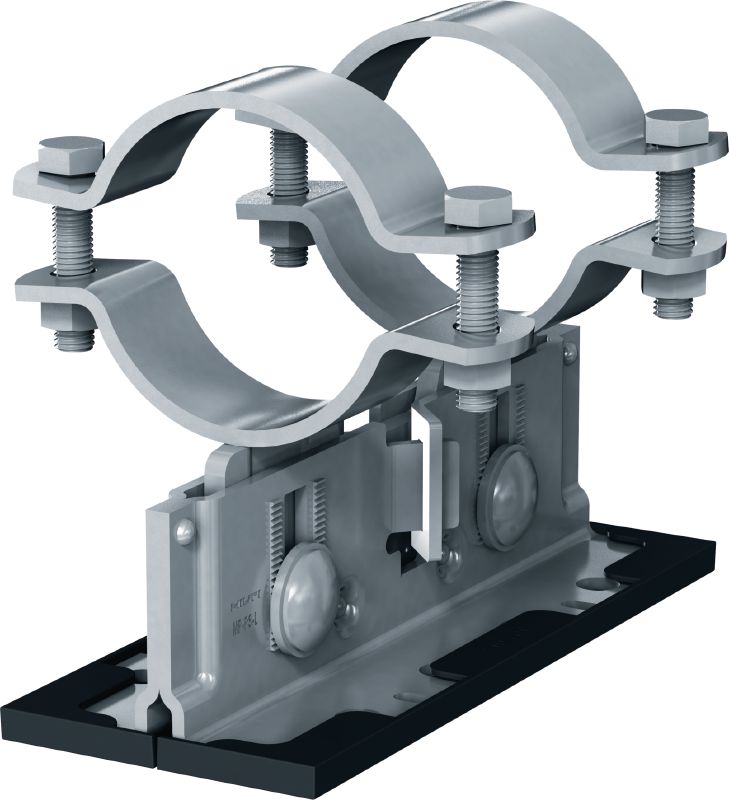

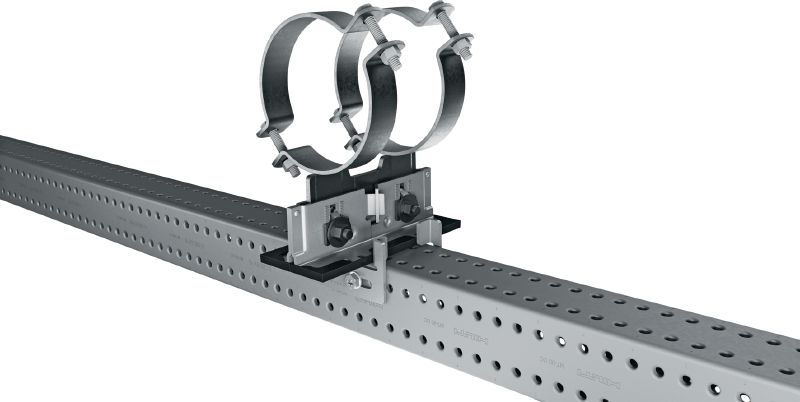

MP-PS 2-2 pipe shoe
Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-328 mm (1/2" to 12")
- Fire resistance (yes/no): No
- Temperature resistance: -20 - 300 °C
- Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Choose options
Clamping range - D
- 110 - 118 mm
- 163 - 173 mm
- 217 - 227 mm
Height above ground to base of pipe
- 88.5 - 116 mm
Nominal pipe size (imperial)
- 4 in
- 6 in
- 8 in
Nominal pipe size
- 100 mm
- 150 mm
- 200 mm
Pack size
- 2 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 322.00
