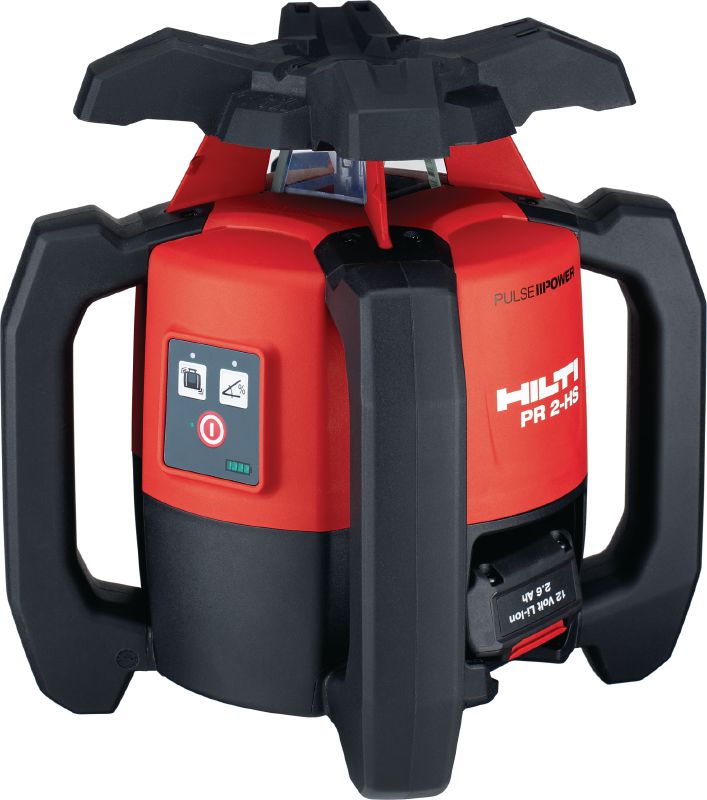

PR 2-HS A12 Outdoor rotating laser level
Robust outdoor rotary laser level for horizontal levelling
- Accuracy: ±0.5 mm at 10 m
- Operating range with laser receiver (diameter): 2 - 600 m
- Laser class: <4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Customers also searched for rotating laser, horizontal laser, rotary laser, slope laser or laser level.
Technical Data
Accuracy
±0.5 mm at 10 m
Operating range with laser receiver (diameter)
2 - 600 m
Laser class
<4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling range at room temperature
± 5 °
Rotation speed
300 rpm
Operating temperature range
-20 - 50 °C
Maximum operating time
16 h
Documents
Features & Applications
Features
- One button, one function design makes this rotating laser extremely easy to use
- Built to last – engineered to US Military standards (MIL-STD-810G) with head-mounted bumpers, four shock-absorbing handles and IP66 protected housing to maintain laser accuracy in rough jobsite conditions
- Lithium-ion battery, featuring Cordless Power Care (CPC) for longer-lasting power output, charges within 35 minutes
- Extended 12 cm laser receiver window for quick detection of the laser beam over the entire working range
- PulsePower technology enables clear laser visibility even in bright daylight
Applications
- Excavation
- Levelling formwork and pouring concrete
- Transferring and checking reference heights
- Setting out slopes
For approval or certificate information, please see individual items.
