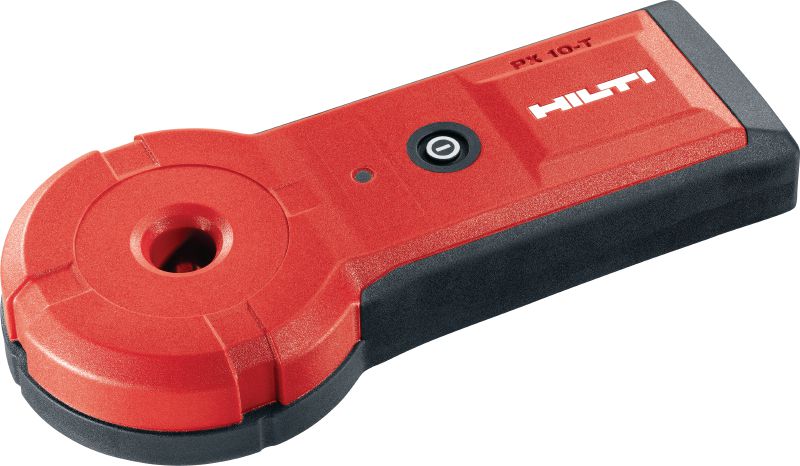

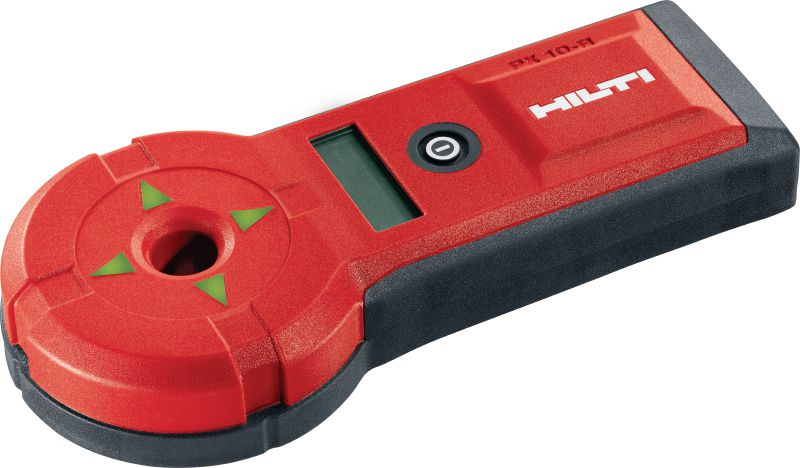

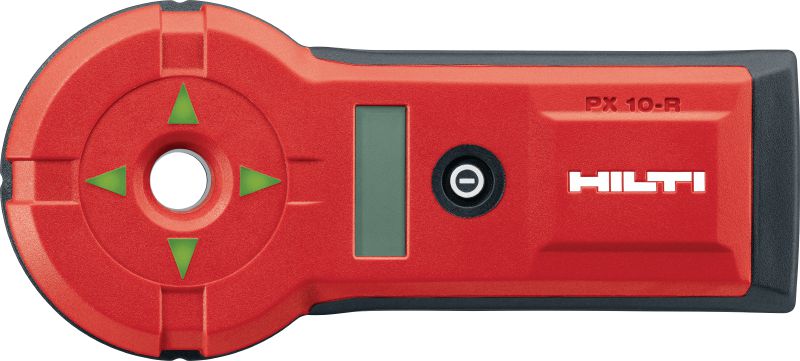

PX 10 Transpointer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L128503 (2317088)
L128504 (2317093)
L128505 (2317106)
L128584_cropped (2327259)
L128565_cropped (2327276)
L128571_cropped (2327270)

Precise transpointer to detect entry and exit points, as well as the distance between them

  • Operating temperature range: -20 - 55 °C
  • Maximum operating time: 17 h
  • Working temperature range: -20 - 55 °C

Customers also searched for hole transfer tool, or hole marker tool.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 2,330.00

Technical Data

Operating temperature range
-20 - 55 °C
Maximum operating time
17 h
Working temperature range
-20 - 55 °C
Dimensions (receiver)
210 x 95 x 33 mm
Dimensions (transmitter)
210 x 95 x 33 mm
Weight with batteries
1 kg

Documents

pdf Operating Instruction PX-10, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Japanese, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese [ 11.6 MB ]

Features & Applications

Features

  • Unique slope adapter shows start or exit point of drilling at any drilling angle
  • Position point can be transposed through floors, ceiling and walls – allowing any drilling work to be carried out quickly and efficiently
  • User-friendly direction indicators for easy operation
  • Measures wall thickness automatically – saving time by skipping trial-and-error pilot drilling
  • Direction arrows for easy, user-friendly operation

Applications

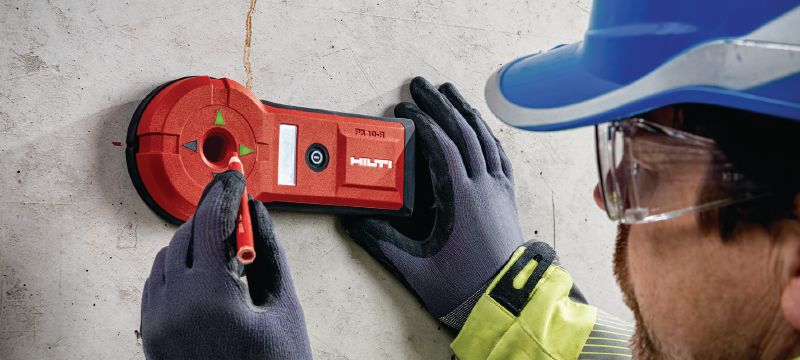

  • Transferring the starting point for drilling through-holes to the other side
  • Wall and ceiling thickness measurement for easy selection of the right drill bit or core bit length

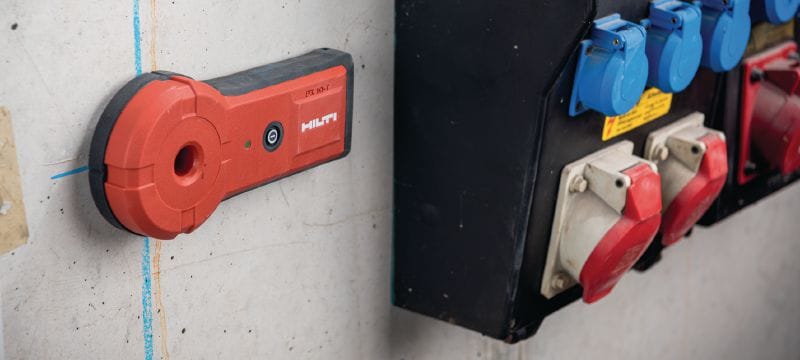

  • Determine drill bit exit position and transfer drilling positions when drilling through walls and ceilings in concrete and masonry

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
  • 3-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Loan tools during repair to reduce downtime.
  • Individual labels and online visibility provide tool fleet transparency
More information about Fleet Management
