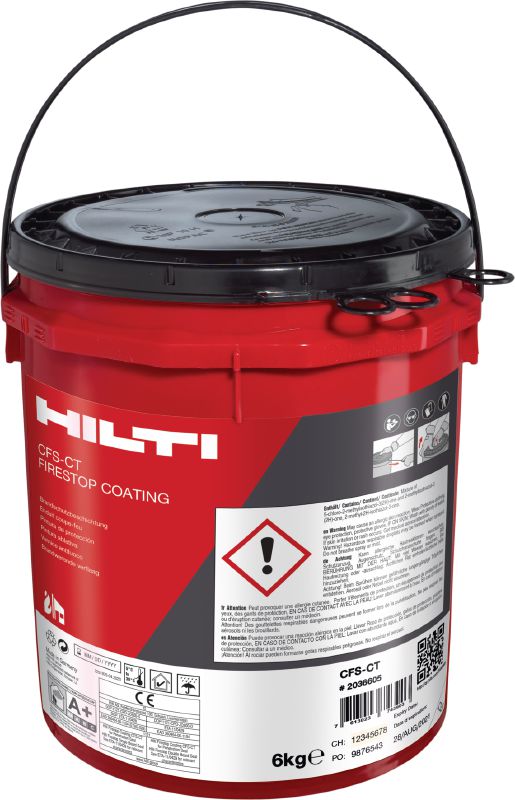

CFS-CT Firestop coating

L-2036607 (222370)
L-2036605 (222371)
L095618_cropped (180531)
L095619_cropped (180533)
L095620_cropped (180535)
L095622_cropped (180539)
L095623_cropped (180541)
L095624_cropped (180543)
L095625_cropped (180545)
L095626_cropped (180547)
L095627_cropped (180549)
L095628_cropped (180551)
L095629_cropped (180553)
L095630_cropped (180555)
L095631_cropped (180557)
L095632_cropped (180559)
L095633_cropped (180561)
L095634_cropped (180563)

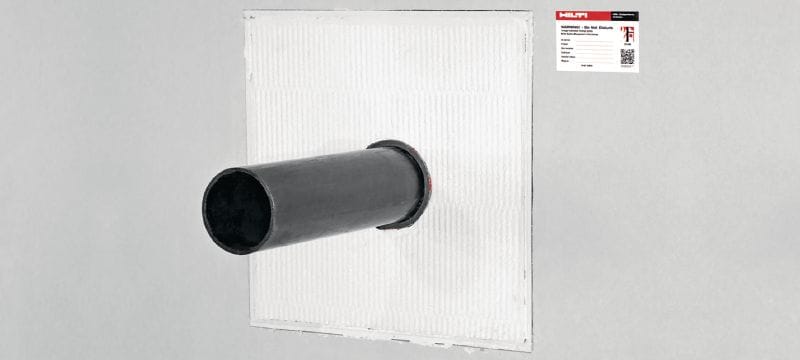

Firestop coated board system with wide approval range for sealing medium to large openings

  • Base materials: Gypsum board, Concrete, Masonry, Aerated Concrete
  • Colour: White
  • Approx. curing time: 1 mm/day
ultimate

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 141.00
AUD 141.00
/
1 Piece

Technical Data

Base materials
Gypsum board, Concrete, Masonry, Aerated Concrete
Colour
White
Approx. curing time
1 mm/day 1
Storage and transportation temperature range
5 - 30 °C
Application temperature range
5 - 40 °C
Temperature resistance range
-40 - 100 °C
Can be painted
Yes
Product class
Ultimate
  1. at 75°F/24°C, 50% relative humidity

Documents

pdf Technical_Manual_ETA-23/0267_CFS-CT_HDB_2023, English [ 3.8 MB ]

Features & Applications

Features

  • EN testing for wide range of applications
  • Single-layer coating – provides labour savings over multilayer coatings
  • Dry film thickness 0.7 mm – up to 30% material savings compared to multilayer coatings
  • Paintable, even on rough surfaces
  • Flexible coating dries quickly to form an elastic protective layer

Applications

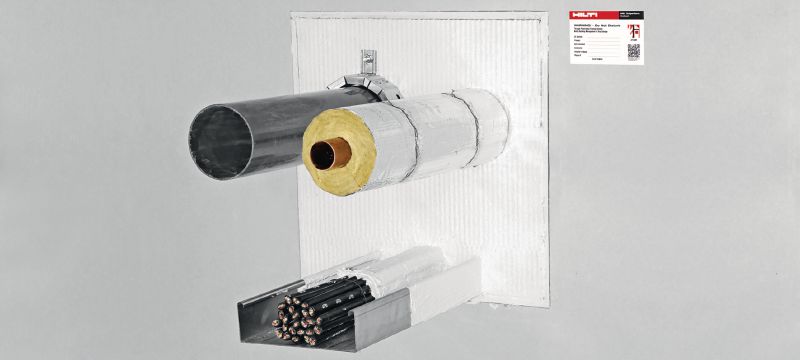

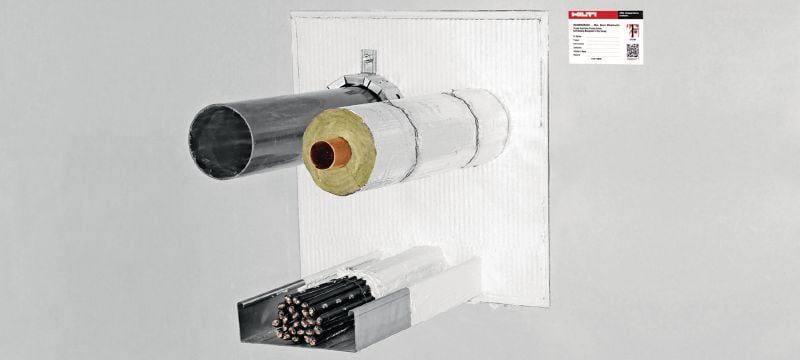

  • Mixed penetrations in flexible and rigid walls from 100 mm and rigid floors from 150 mm

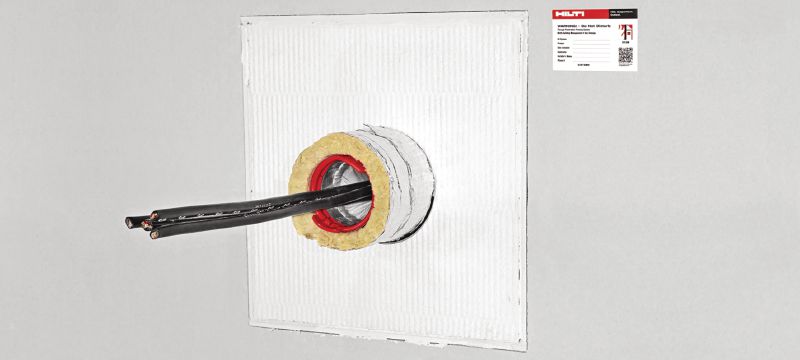

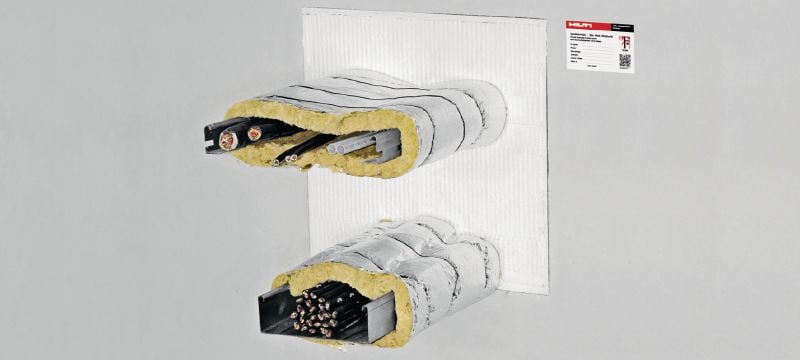

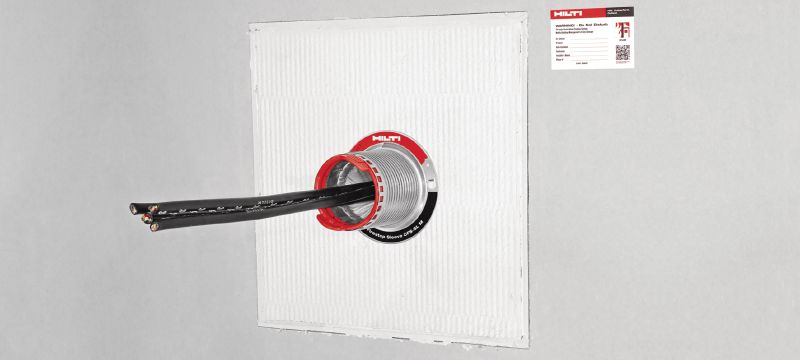

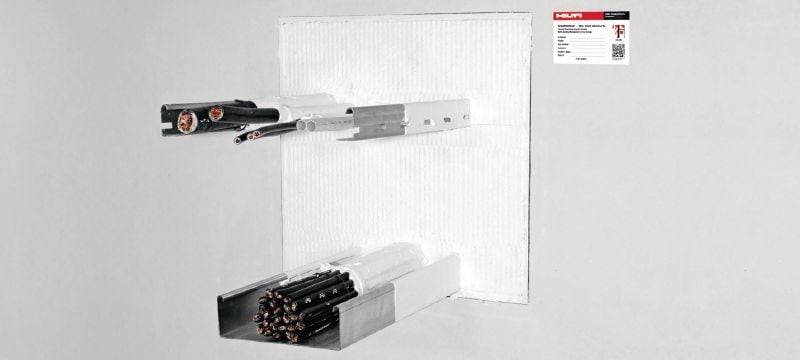

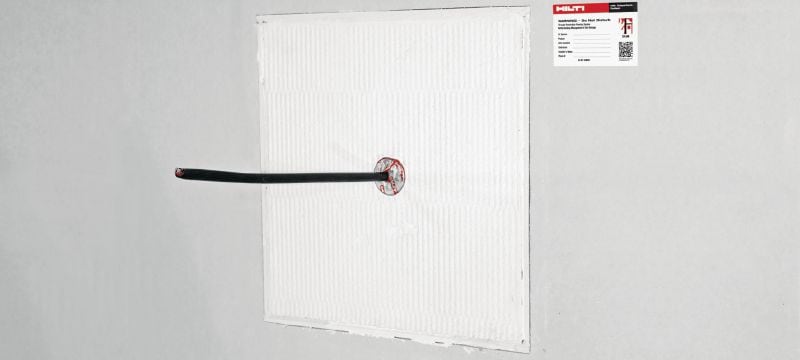

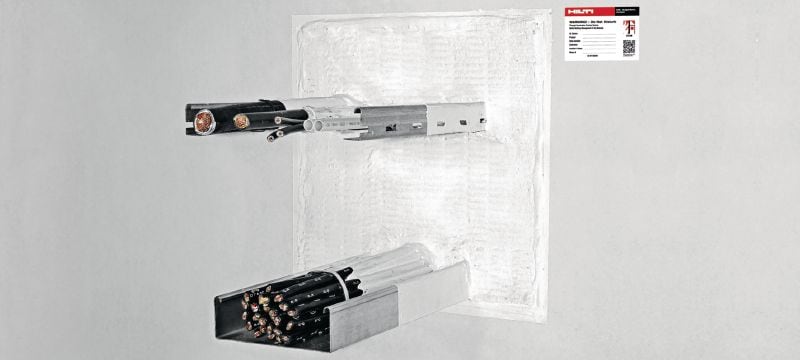

  • Cables, cable bundles, cable trays and cable conduits
  • Non-combustible (metal) pipes with non-combustible insulation

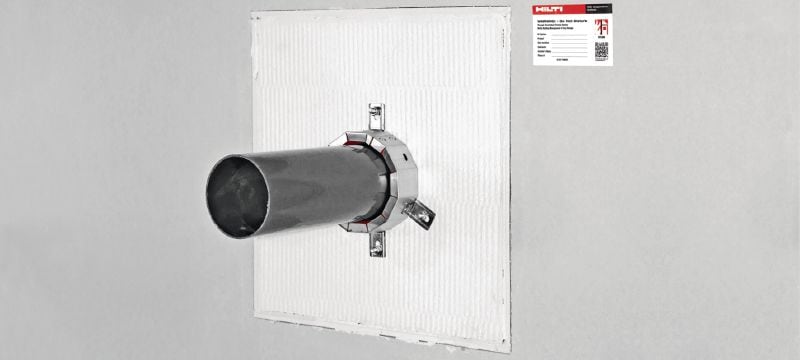

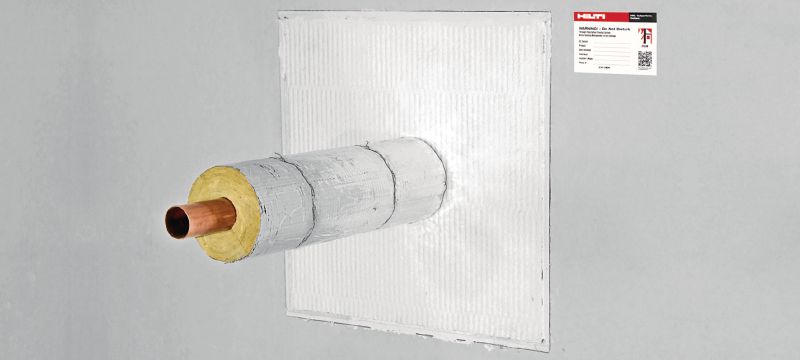

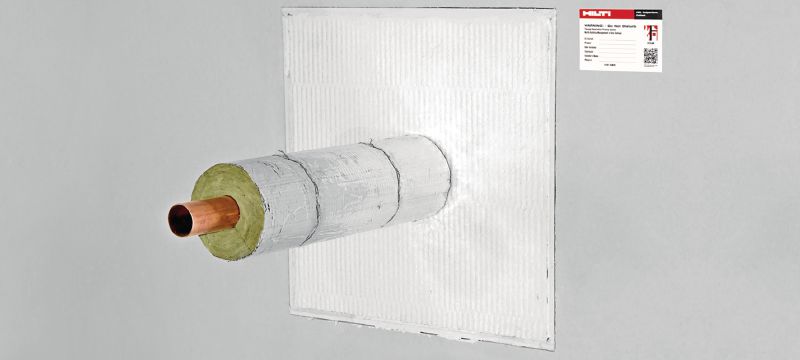

  • Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage or CFS-C P firestop collar

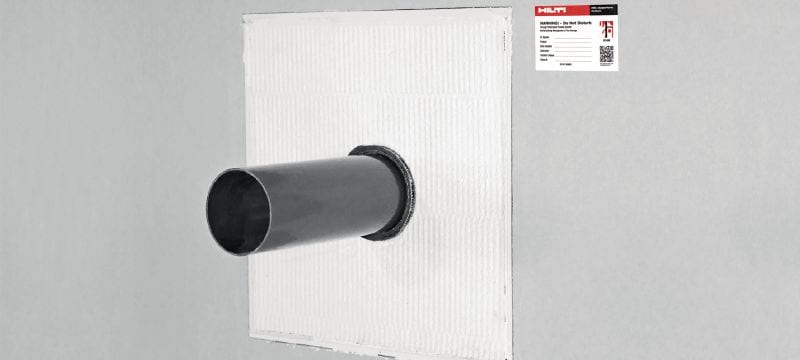

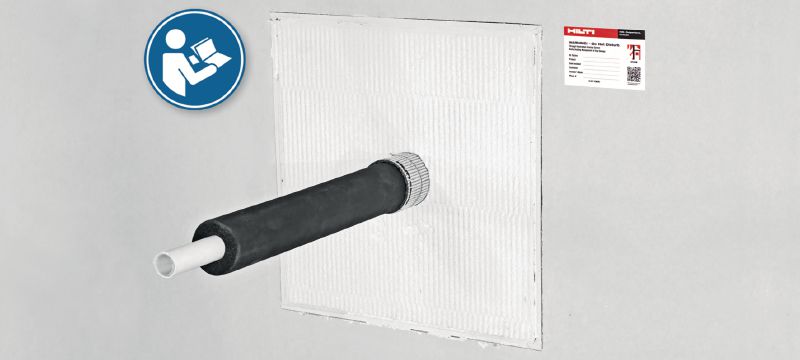

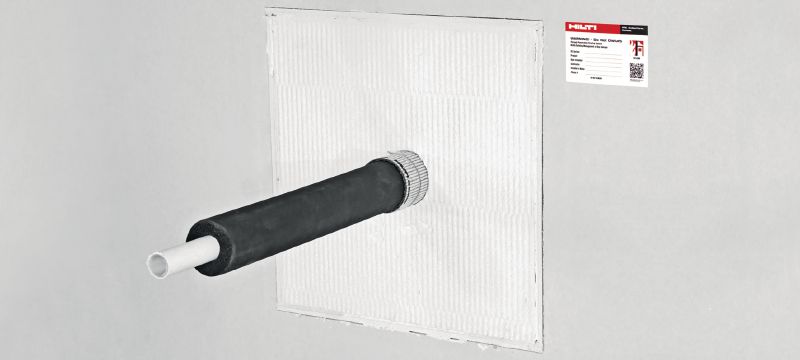

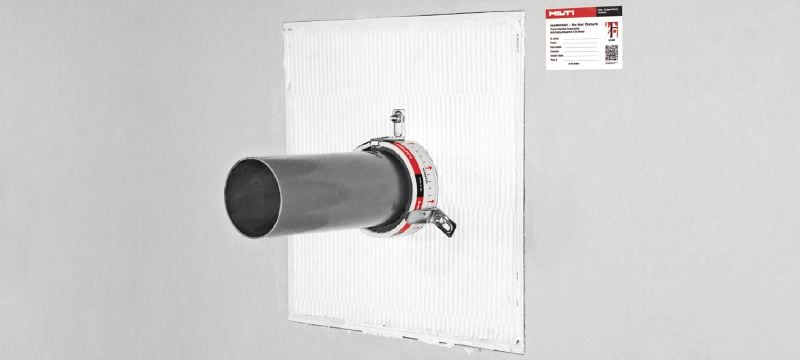

  • Combustible pipes in combination with CFC-C P or CFS-C firestop collars or CFS-W firestop wrap

For approval or certificate information, please see individual items.
