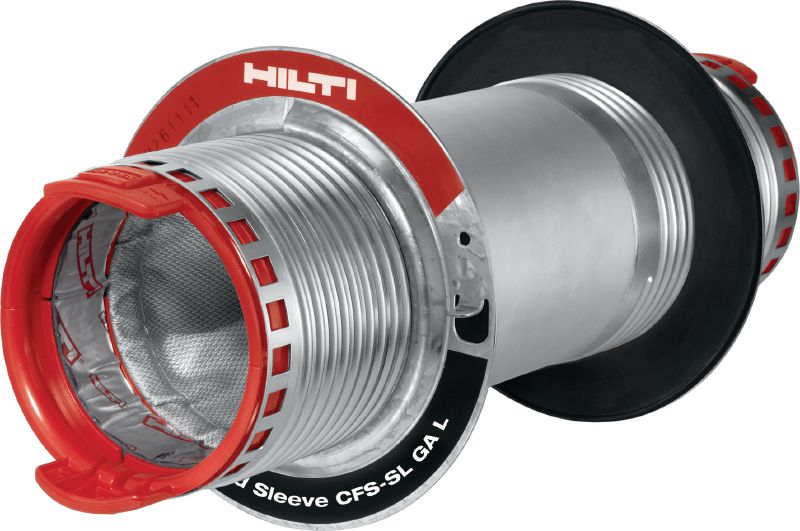

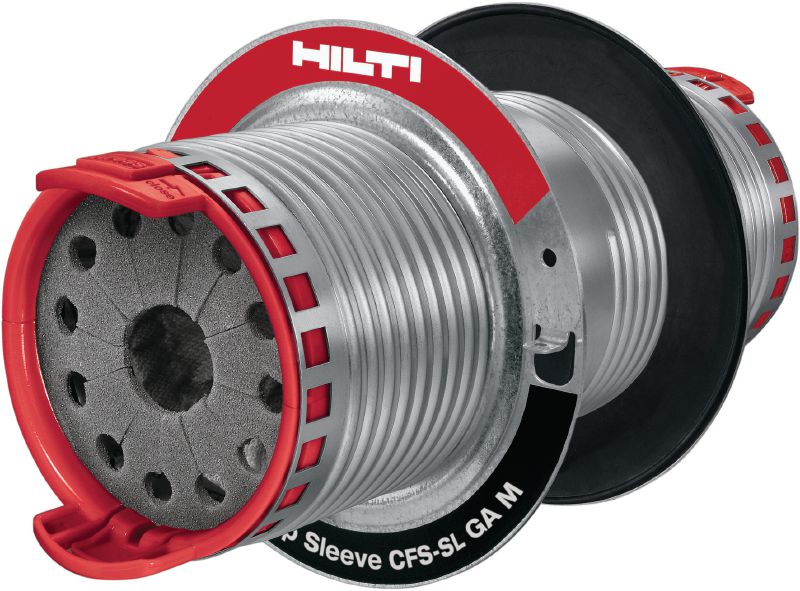

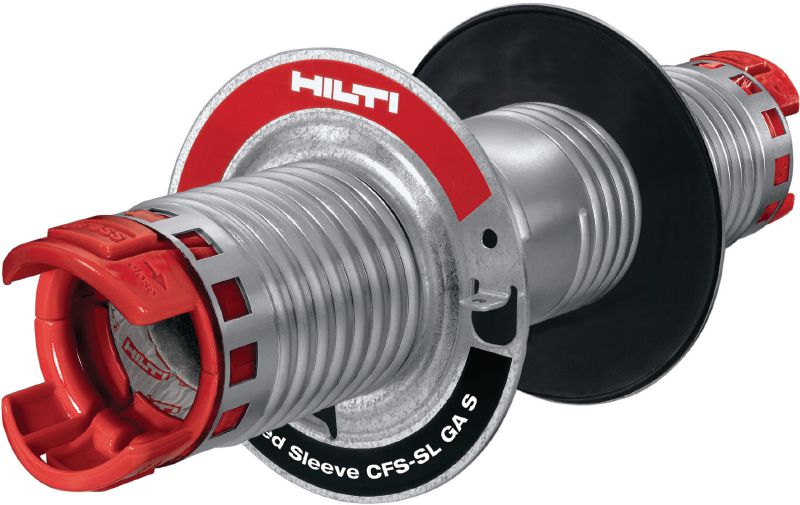

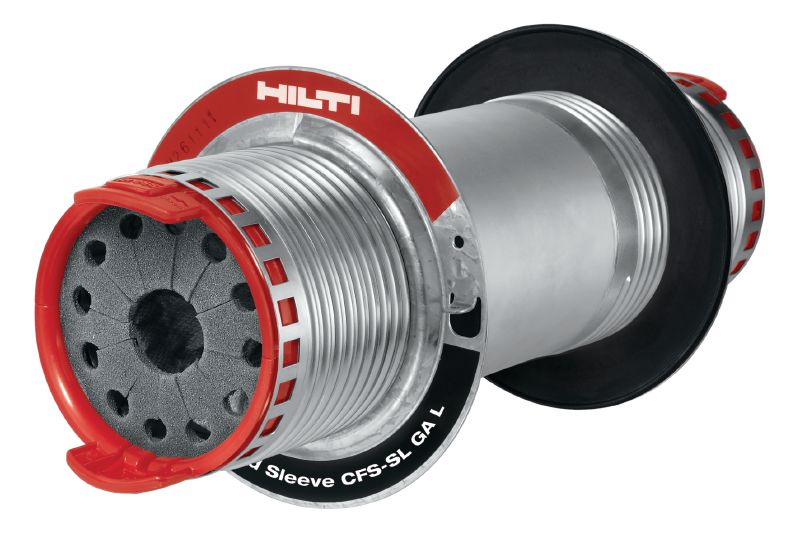

CFS-SL GA Extended Speed Sleeve

Pathway device for high-traffic cabling with optimal airflow control

Base materials: Drywall, Concrete, Masonry, Wood, Sandwich Panel, Aerated Concrete
Reaction to fire class (EN 13501-1): E
Product class: Ultimate

ultimate

Length

Outside diameter

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 268.00

Technical Data

Base materials

Drywall, Concrete, Masonry, Wood, Sandwich Panel, Aerated Concrete

Reaction to fire class (EN 13501-1)

Product class

Ultimate

Application temperature range

-5 - 50 °C

Storage and transportation temperature range

-5 - 50 °C

Temperature resistance range

-30 - 75 °C

pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]

pdf Hilti CFS-SL GA Firestop Sleeve Product Info [ 510 KB ]

Functional and compliant when properly installed
Twist-to-close mechanism – for easier and remote re-penetration while protecting cables
Straightforward inspection – you can see if the sleeve is closed without having to check behind a covering fringe above the ceiling
Superior smoke tightness and airflow control thanks to its twisting mechanism
Smoke gaskets eliminate need for sealant or putty

Sealing penetrations for single cables and cable bundles
Suitable for small to medium-sized circular openings in walls and ceilings
For use on drywall, concrete, masonry and sandwich panel
The ideal solution when cable configurations are regularly changed, such as in data centres, server rooms, hospitals, event halls or production plants

For approval or certificate information, please see individual items.
