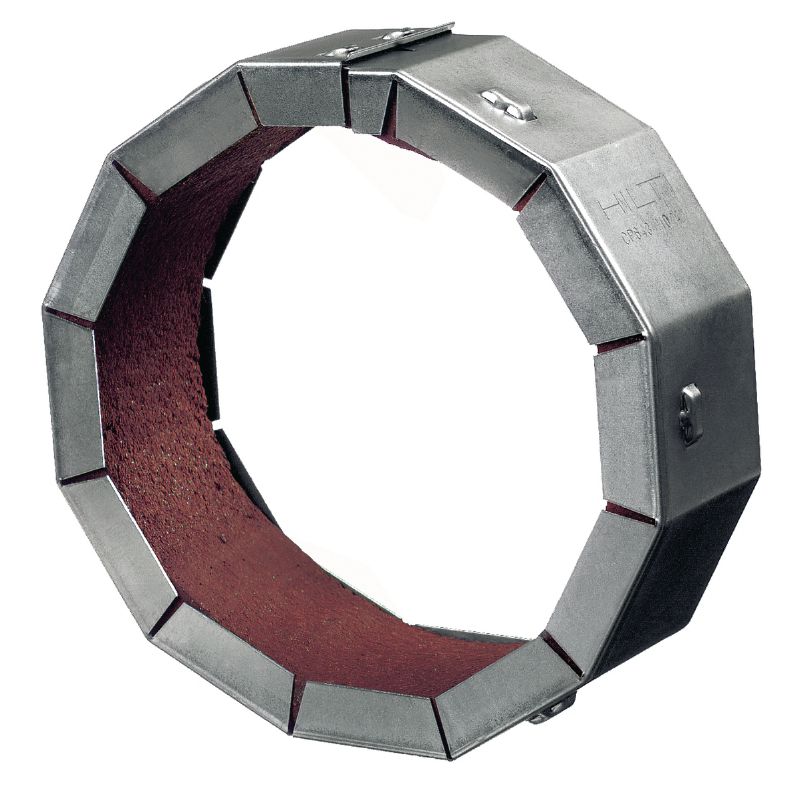

ETA-compliant retrofit premium firestop collar to help create a fire and smoke barrier around existing pipes between 50-250 mm

  • Base materials: Aerated Concrete, Concrete, Masonry, Drywall
  • LEED VOC: 7.6 g/l
  • Expansion ratio (unrestricted, up to): 1:17
ultimate

Customers also searched for Intumescent or Fire Collar.

Technical Data

Base materials
Aerated Concrete, Concrete, Masonry, Drywall
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:17
Expansion temperature (approx.)
210 °C
Can be painted
No
Product class
Ultimate
Application temperature range
-5 - 50 °C
Storage and transportation temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C

Documents

Features & Applications

Features

  • Designed to simplify firestopping of combustible pipes through fire-rated walls and floors

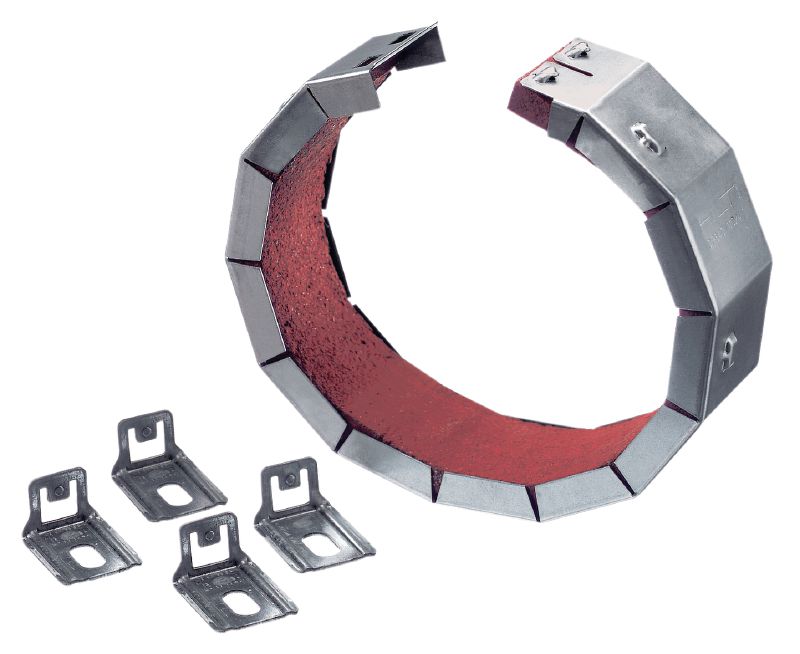

  • Latch mechanism for quicker and easier closure
  • Can be uninstalled

Applications

  • Suitable for use in openings in concrete, aerated concrete and masonry
  • Suitable for acoustic pipes

For approval or certificate information, please see individual items.
