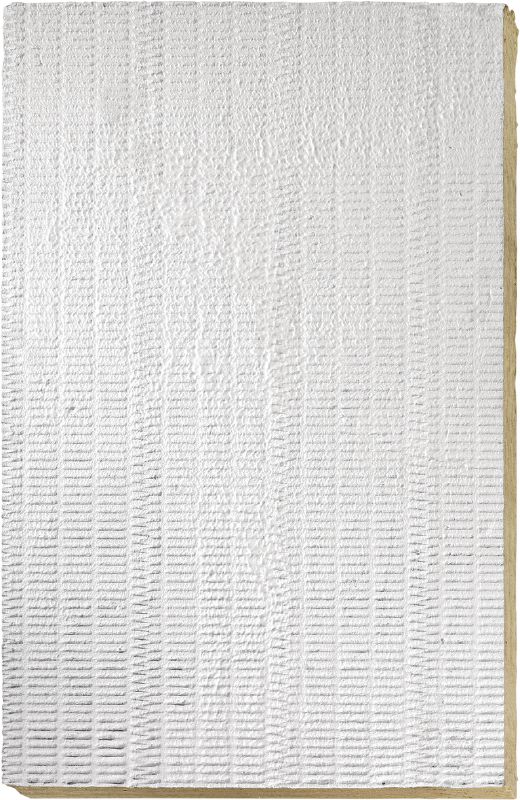

Firestop board, Coated board, Mineral wool, Batt, Panel 1000x600x50mm
L095618_cropped (180531)
L095619_cropped (180533)
L095620_cropped (180535)
L095622_cropped (180539)
L095623_cropped (180541)
L095624_cropped (180543)
L095625_cropped (180545)
L095626_cropped (180547)
L095628_cropped (180551)
L095629_cropped (180553)
L095630_cropped (180555)
L095631_cropped (180557)
L095632_cropped (180559)
L095633_cropped (180561)
L095634_cropped (180563)

Firestop coated board system with wide approval range for sealing medium to large openings

  • Base materials: Aerated Concrete, Concrete, Gypsum board, Masonry
  • Colour: White
  • Storage and transportation temperature range: -5 - 40 °C

Choose options

Dimensions (LxWxH)
  • 1000 x 600 x 50 mm
  • 1200 x 600 x 50 mm
Pack size
  • 1 pc
  • 5 pc
  • 16 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 650.00

Technical Data

Base materials
Aerated Concrete, Concrete, Gypsum board, Masonry
Colour
White
Storage and transportation temperature range
-5 - 40 °C
Application temperature range
5 - 40 °C
Temperature resistance range
-40 - 100 °C
Can be painted
Yes

Documents

Approval document
Brochure
pdf AU File - SDS_H_AU_Mineral_wool_product__FS_boards [ 134 KB ]

Features & Applications

Features

  • Board pre-coated for immediate use
  • Strong bonding of coating on board to reduce cracking and delamination while cutting
  • Broad approval range
  • Smoke-tight coating
  • Can be re-penetrated

Applications

  • Mixed penetrations in flexible and rigid walls from 100 mm and rigid floors from 150 mm
  • Cables, cable bundles, cable trays and cable conduits
  • Non-combustible (metal) pipes with non-combustible insulation
  • Non-combustible (metal) and composite pipes with combustible insulation in combination with CFS-B firestop bandage or CFS-C P firestop collar
  • Combustible pipes in combination with CFC-C P or CFS-C firestop collars or CFS-W firestop wrap

For approval or certificate information, please see individual items.
