CP 611A firestop intumescent sealant

Configurator
Technical Data
Documents
Features & Applications
Related Products

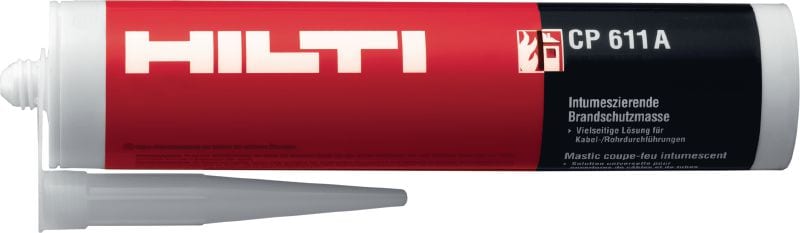

#382841, Intumescent Sealant, Cartridge

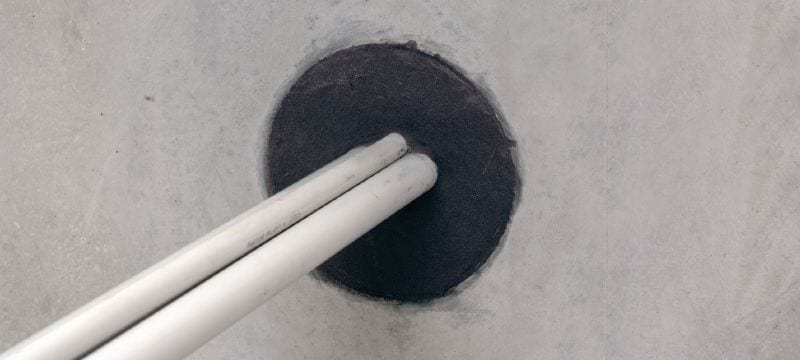

CP 611A cables wo ID plate, CP611_IS_00382841_36139.tif

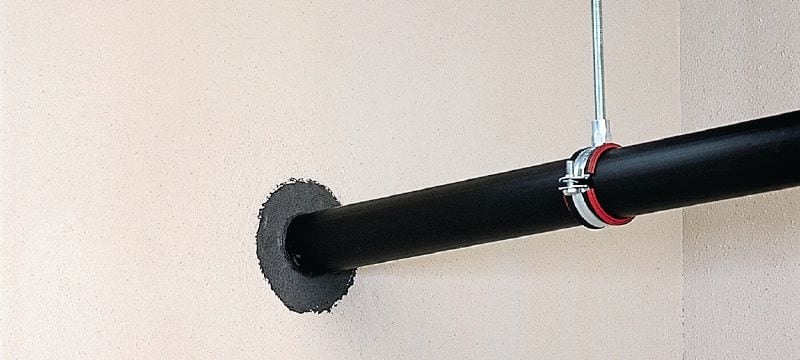

CP 611A Small pipe wo ID plate

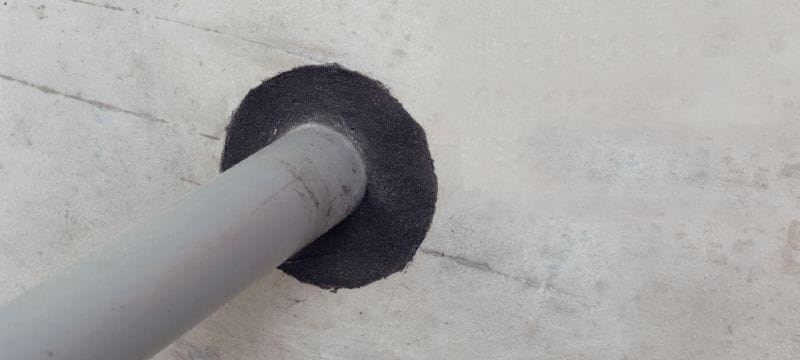

Cable penetration
11842.tif

water-based and silicone-free intumescent sealant for firestopping of electrical penetrations

  • LEED VOC: 56 g/l
  • Base materials: Concrete, Brick, Masonry, Drywall
  • Application temperature range: 40 - 5 °C
ultimate

Customers also searched for Fire or Mastic.

Choose options

Colour
  • Anthracite
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 54.92

Technical Data

LEED VOC
56 g/l
Base materials
Concrete, Brick, Masonry, Drywall
Application temperature range
40 - 5 °C
Approx. curing time
3 mm/3 days 1
Can be painted
Yes
Content per can/cartridge
310 ml
Product class
Ultimate
Colour
Anthracite
  1. at 75°F/24°C, 50% relative humidity

Documents

HSE Information
Approval document
Brochure
Firestop System Details
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf VOC_CDPH_CP611 A_EN, English [ 121.3 KB ]

Features & Applications

Features

  • Tested for firestopping of single cables, cable bundles and conduits
  • Smoke-tight sealant
  • Applicable on concrete, masonry or gypsum
  • Acoustically tested according to ISO 10140
  • Mold and mildew resistant according to ISO 846 and ASTM G21

Applications

  • Single cables and cable bundles
  • Irregular openings
  • Small openings
  • Sealing penetrations previously sealed with firestop mortar, after installing additional cables

For approval or certificate information, please see individual items.
