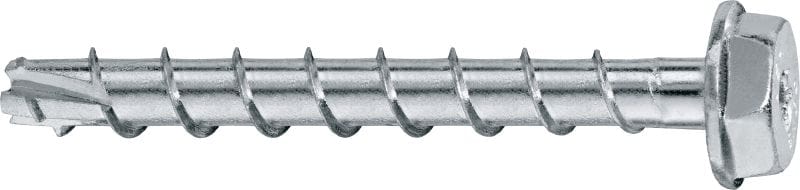

HUS3-H 6 Concrete screw anchor
Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Approvals / test reports: ETA, Fire, Seismic, VDS
Customers also searched for Seismic 1.
Choose options
Anchor size
- 6 mm
Anchor length
- 40 mm
- 45 mm
- 60 mm
- 80 mm
- 100 mm
- 120 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 150.00
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic, VDS
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Type of fastening
Through-fastening
Reusable (and removable)
Possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Neat head design, no further finishing required
- More reliable and easy to set – HSE product profile available
- Unbeaten for overhead installation – greatly simplifies the work
- Reduced edge and spacing distances
Applications

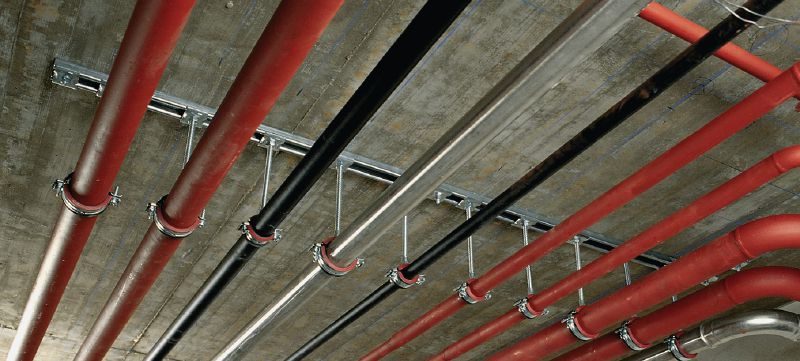

- Fastening channels directly to the ceiling for the installation of pipes or ventilation ducts
- Fastening handrails, railings and other ornamental steelwork
- Suitable for repetitive installation tasks
For approval or certificate information, please see individual items.
