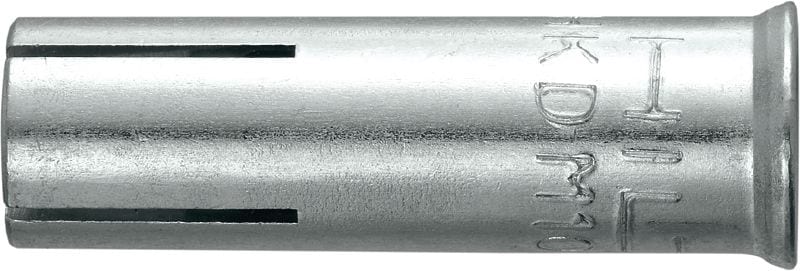

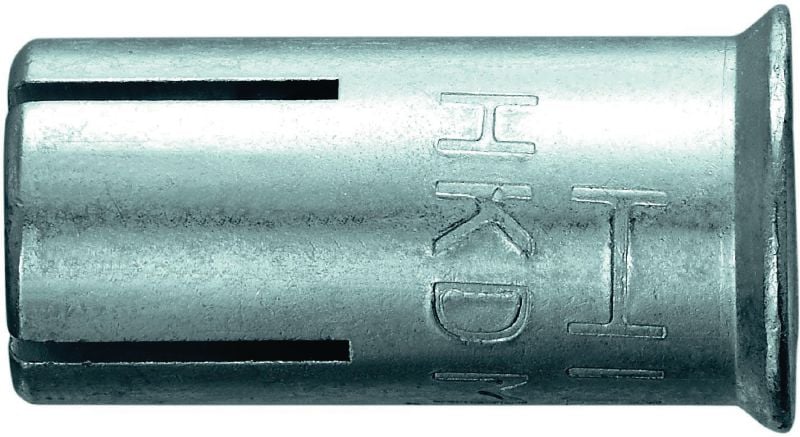

HKD Drop-in anchor (metric)
Flush anchor HKD M16x65 #382941
High-performance carbon steel tool-set drop-in anchor with metric thread
- Approvals / test reports: DIBt, ETA, Fire, FM (Factory Mutual)
- Material, corrosion: Carbon steel, zinc-plated
- PROFIS software: Yes
Choose options
Internal thread size
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 16 mm
- 20 mm
Anchor length
- 25 mm
- 30 mm
- 40 mm
- 50 mm
- 65 mm
- 80 mm
Anchor size
- M6
- M8
- M10
- M12
- M16
- M20
Pack size
- 25 pc
- 50 pc
- 100 pc
- 250 pc
- 500 pc
- 1000 pc
Quantity
Packs
Total Piece
25
Discounted net
AUD 97.25
AUD 3.89 / 1 Piece
Technical Data
Approvals / test reports
DIBt, ETA, Fire, FM (Factory Mutual)
Material, corrosion
Carbon steel, zinc-plated
PROFIS software
Yes
Drill bit diameter
20 mm
Documents
Features & Applications
Features
- “Intelligent” stepped expansion cone allows easy, correct setting even in harder materials
- Available in a variety of sizes for maximised coverage of applications
- Visual check for correct setting when used with the Hilti setting tool
- Features a lip for flush setting regardless of hole depth
- Shallow drilling depth (25 mm)
Applications

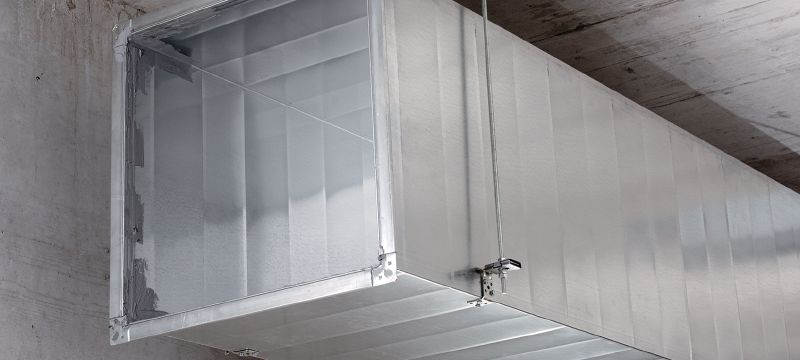

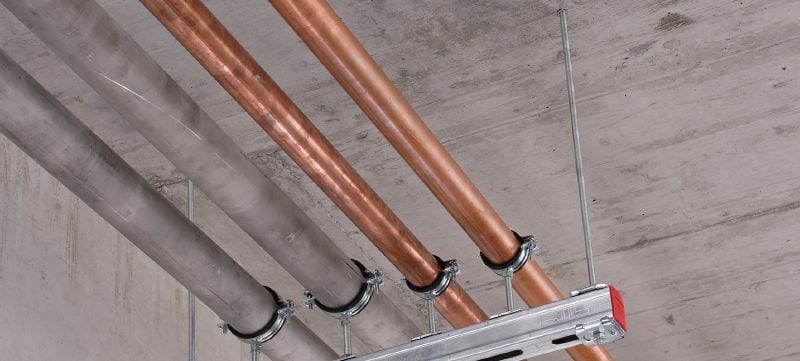

- Medium-duty loads with anchor bolts and threaded rods, e.g. suspension systems for pipes, air ducts, sprinkler systems, etc.
Related Products
Setting tool for short HKD anchors with an integrated SDS Plus (TE-C) stop hammer drill bit
