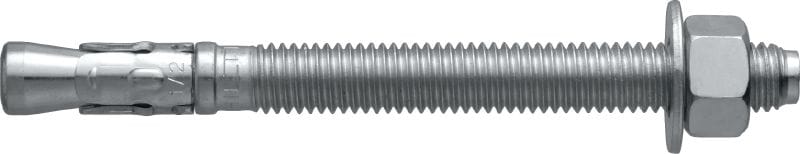

KBV Wedge anchor

KBV standard stud anchor
HSA stud anchor (Segmentanker)

Economical wedge anchor for fastening in uncracked concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: UL (Underwriters Laboratories)

Choose options

Anchor size
  • 1/4 in
Anchor length
  • 57 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
AUD 64.73
AUD 0.65
/
1 Piece

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
UL (Underwriters Laboratories)
Base materials
Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (non-cracked), Masonry (grout-filled CMU)
PROFIS software
No
Environmental conditions
Dry indoor

Documents

pdf IFU, KBV, 2080648, web, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.8 MB ]

Features & Applications

Features

  • Made from cold-formed carbon steel, zinc-plated to 5µm
  • Dog point impact section to prevent thread damage during installation
  • Two embedment depths for a wide range of fastening thicknesses

Applications

  • Fastening base plates, hand rails, signs, racking, equipment and formwork bracing

For approval or certificate information, please see individual items.
