X-HVB Shear connector

Configurator
Technical Data
Documents
Features & Applications
Related Products
X-HVB shear connector X-HVB Verbunddübel

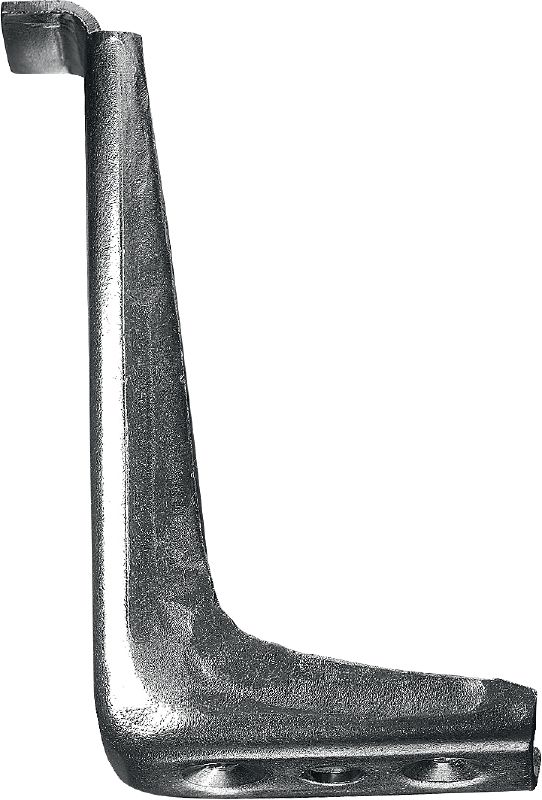

X-HVB 40, Shear Connector (88547)
X-HVB 40, Shear Connector (88706)

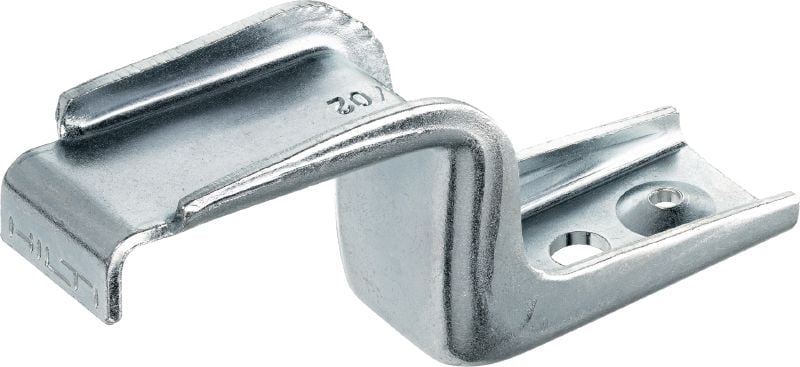

X-HVB 110 (Shear Connector) X-HVB 110 (Verbund-Dübel)
X-HVB, DX 76 PTR
L105752_cropped (187880)
L105805_cropped (187882)
L105827_cropped (187887)
L105902_cropped (187889)
L105924_cropped (187891)
L105933_cropped (187893)
L105963_cropped (187895)
L105978_cropped (187897)
L105995_cropped (187901)
L106002_cropped (187903)
L106014_cropped (187905)
L106016_cropped (187907)

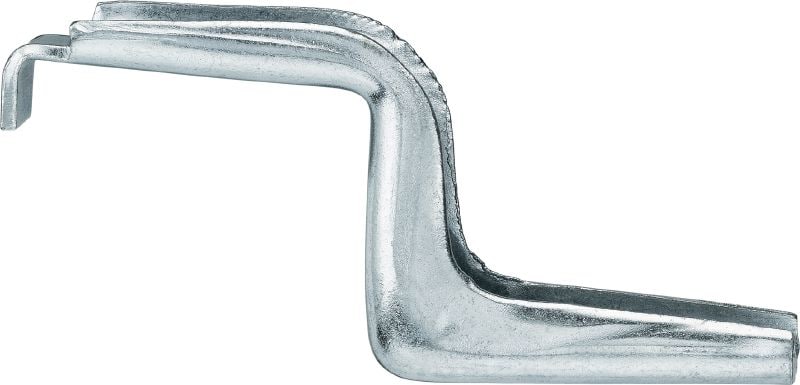

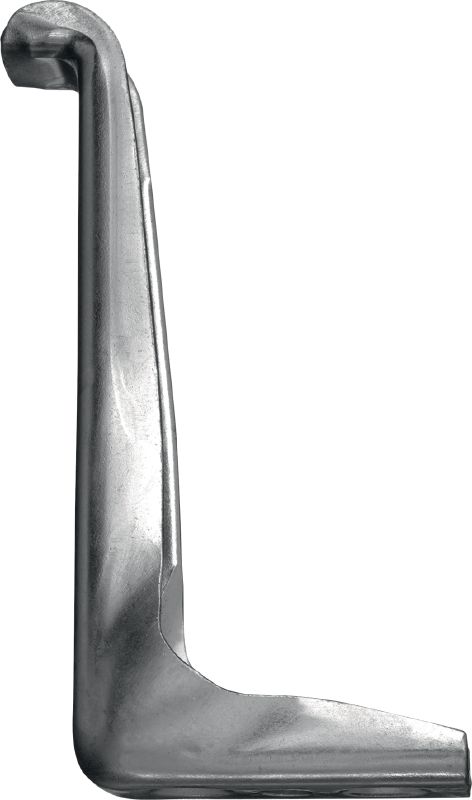

Shear connector for composite beam constructions

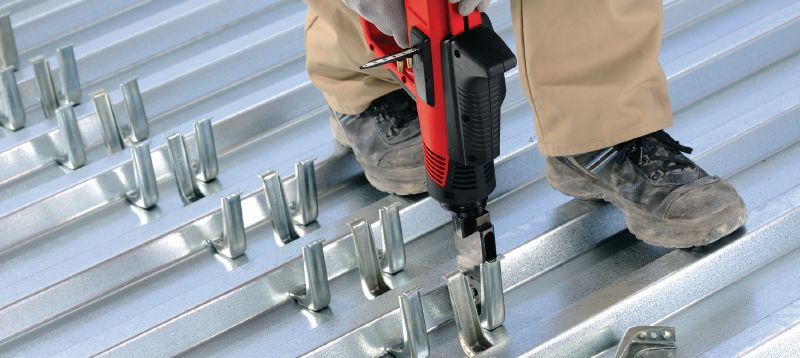

  • Application: Metal deck
  • For use with (tools): DX 76
  • Corrosion protection: Galvanised zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 26 mm
Height
  • 80 mm
  • 95 mm
  • 113 mm
  • 128 mm
Length
  • 60 mm
  • 63 mm
Pack size
  • 1 pc
  • 125 pc
  • 200 pc
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From AUD 918.75

Technical Data

Application
Metal deck
For use with (tools)
DX 76
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Approvals
DIBt, SCI, SOCOTEC, TZUS
Base materials
Steel
Product class
Ultimate

Documents

Approval document
Technical information
Operating Instruction
Material safety datasheet
pdf ETA-15/0876 for nail shear connector, German, English, French [ 8.4 MB ]

Features & Applications

Features

  • Economical alternative to stud welding – no expensive equipment required

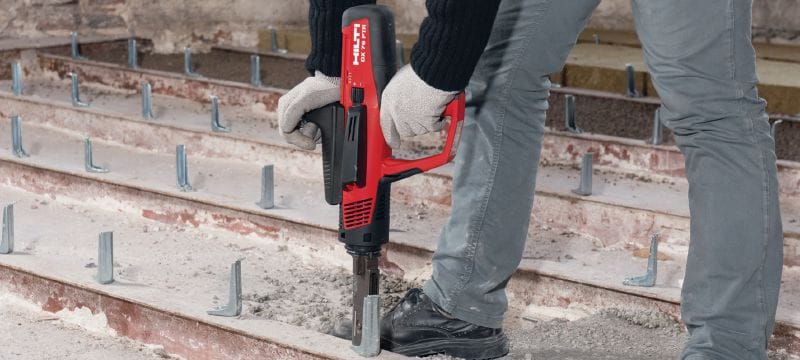

  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables

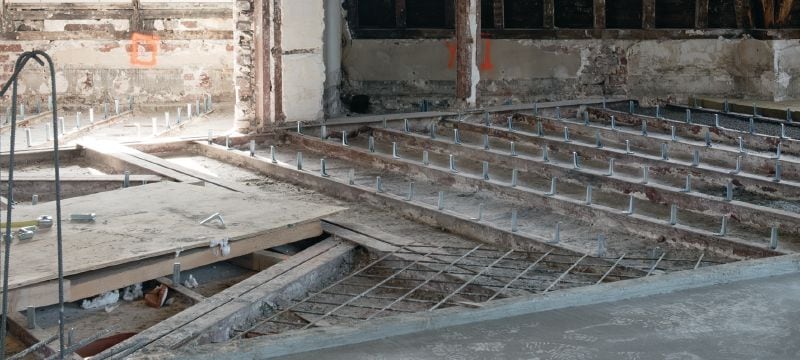

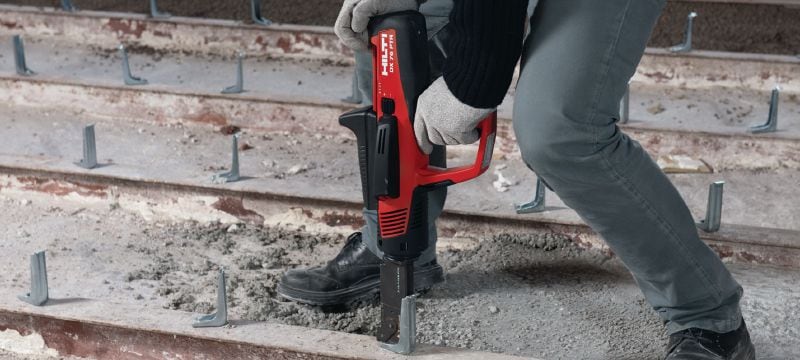

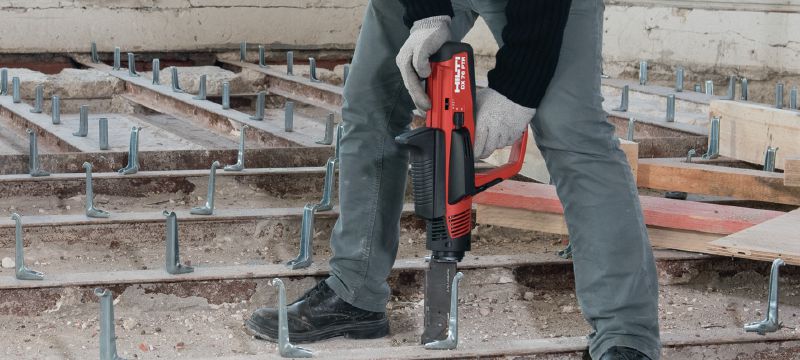

  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick set-up and usable in all weather conditions

Applications

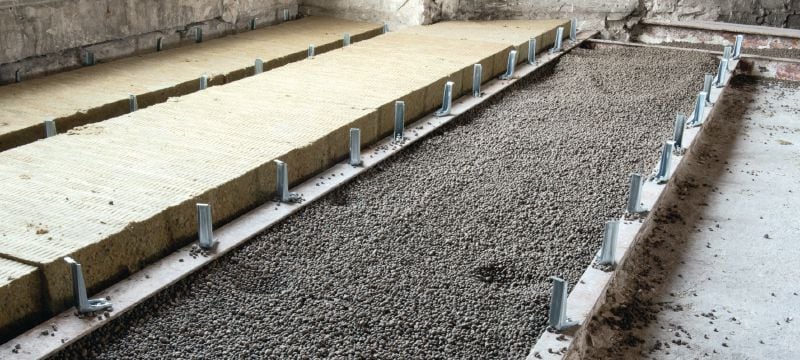

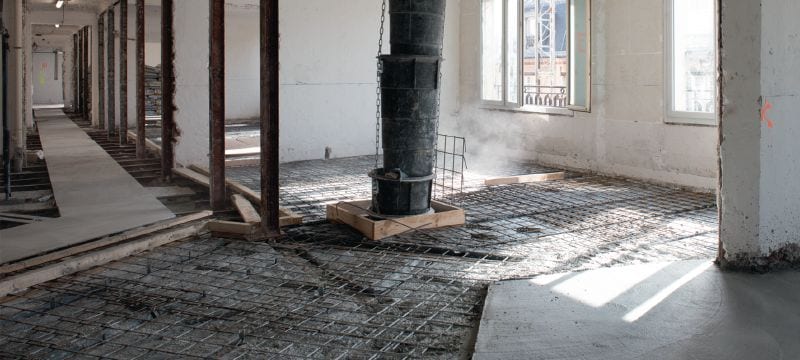

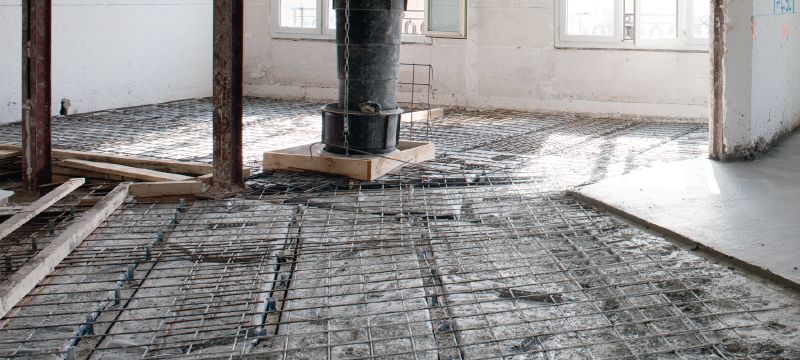

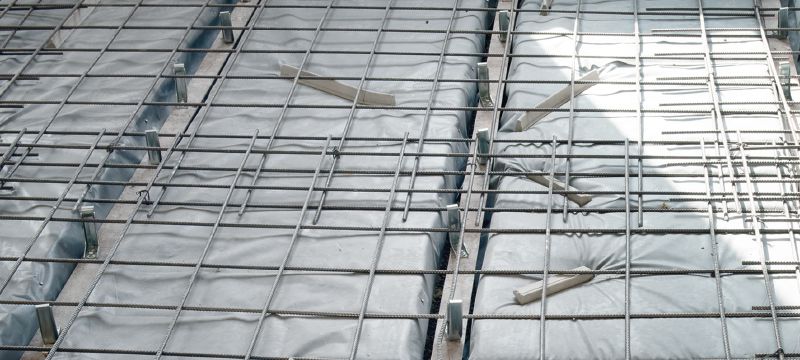

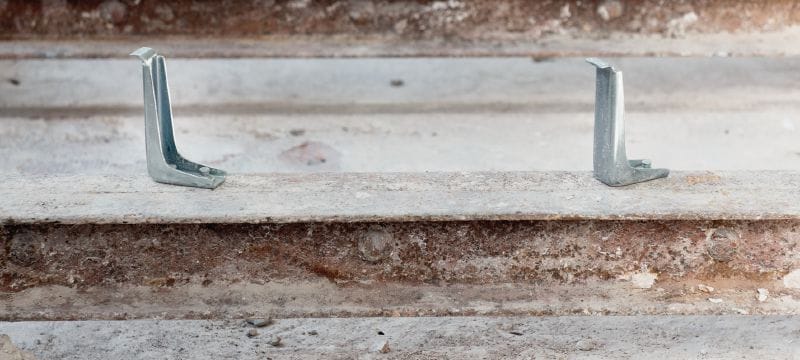

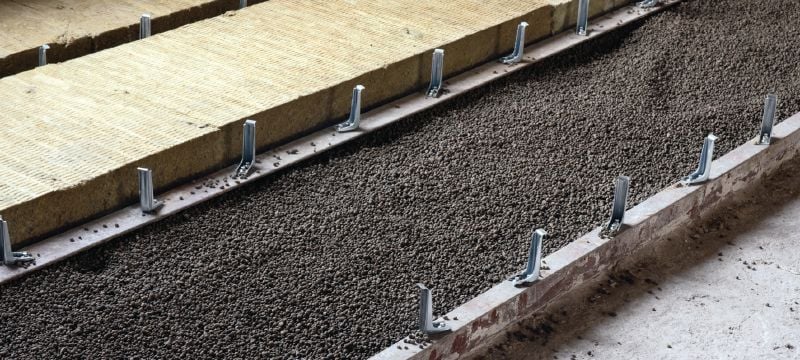

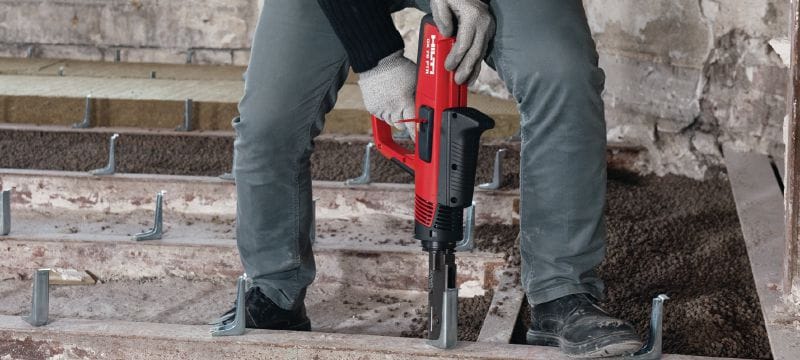

  • Holding concrete slabs to steel structures to resist shear forces and increase shear loading capacity in composite structures
  • Can be used on galvanised and painted beams

For approval or certificate information, please see individual items.
