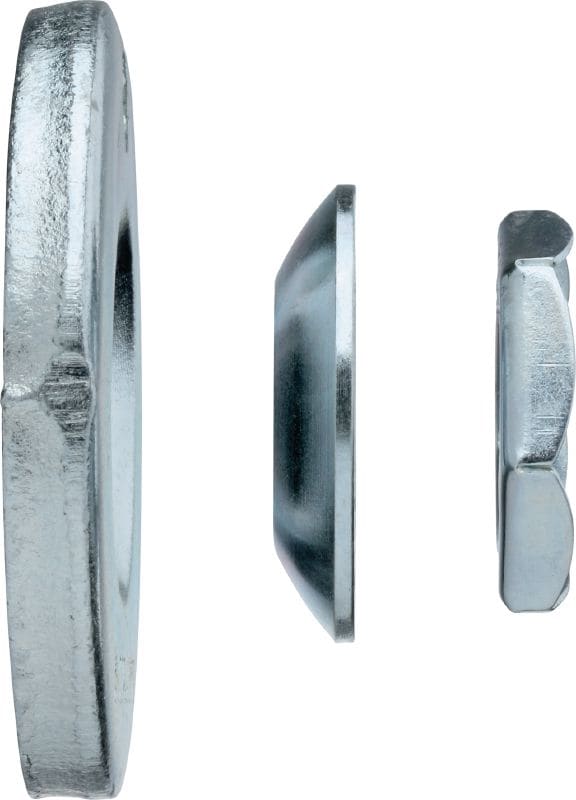

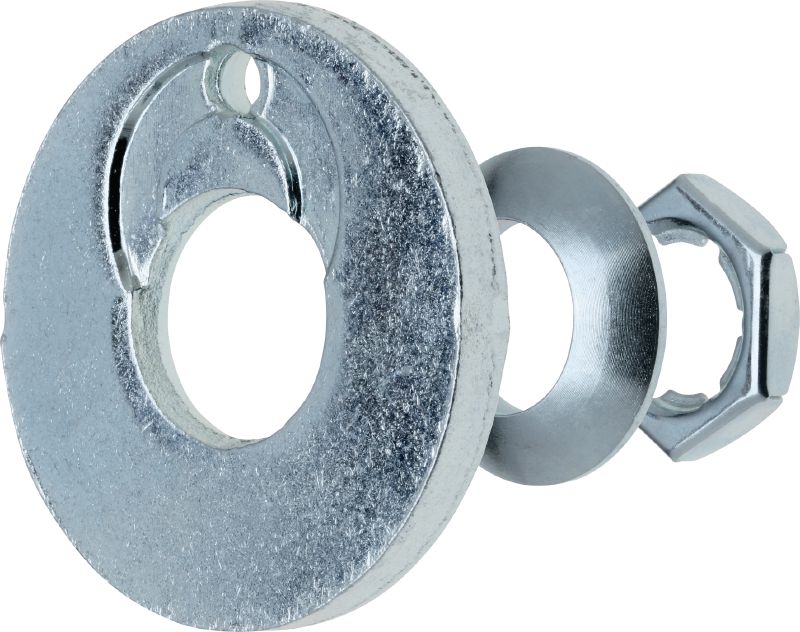

Filling washer (carbon steel)
Set for filling the annular gap in mechanical and chemical anchors (carbon steel)
Choose options
Diameter
- 10 mm
- 12 mm
- 16 mm
- 20 mm
- 24 mm
Outside diameter
- 42 mm
- 44 mm
- 52 mm
- 60 mm
- 70 mm
Pack size
- 5 pc
- 6 pc
- 16 pc
- 24 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 160.80
Documents
Features & Applications
Features
- Designed to fill the annular gap as required by code for seismic and fatigue conditions
- Through-fastening is possible
- Optimal load transfer through the spherical washing machine and filling of the annular gap

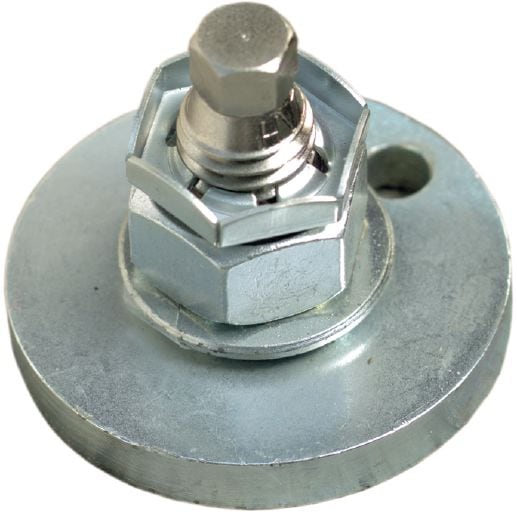

- Sizes M8-M24 include a lock nut (as shown on picture)
Applications
- Applications in which shear loads need to be taken up directly (gap to be filled with either HIT-HY or HIT-RE injectable adhesive mortars, depending on the steel element to be fastened)
- Seismic or fatigue applications
- The gap on expansion anchors (HST, HST2, HST3, HST4 HDA, HSL-4, HMU, HSA) must be filled with HIT-HY injectable adhesive mortars (HIT-RE is not suitable)
For approval or certificate information, please see individual items.
