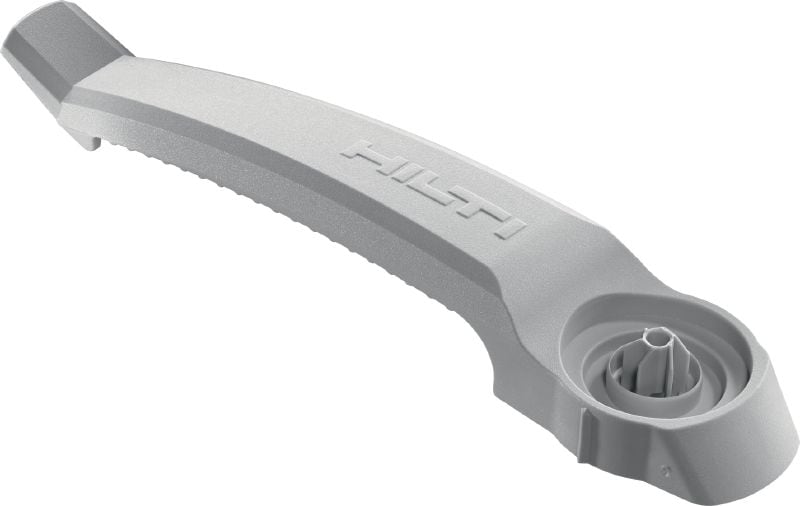

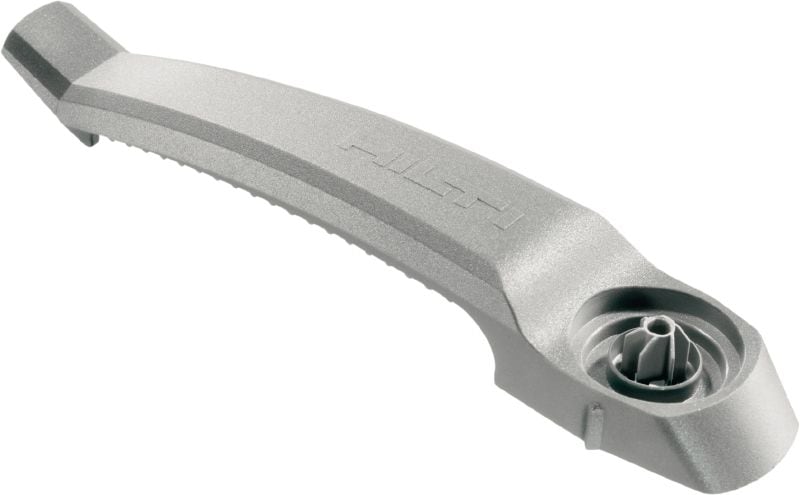

X-EKB MX Cable clamp
Plastic cable clasp for use with collated nails
- Application: Cable Fastenings, Conduit Fastening
- Material: Polyamide (PA)
- For use with (tools): BX 3, BX 4-22, DX 351, DX 460, DX 5, DX 6, GX 3
premium
Choose options
Cable capacity (10 mm cable)
- 5
- 10
Cable capacity (8 mm cable)
- 8
- 16
Cable capacity (6 mm cable)
- 10
- 21
Pack size
- 25 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 54.50
Technical Data
Application
Cable Fastenings, Conduit Fastening
Material
Polyamide (PA)
For use with (tools)
BX 3, BX 4-22, DX 351, DX 460, DX 5, DX 6, GX 3
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel
Approvals
CSTB, ETA, UL
Environmental conditions
Dry indoor
Product class
Premium
Documents
Features & Applications
Features
- Friction-fit in the nose of BX/GX/DX nailers for easy handling
- UL listed, plenum rated
- Flame-retardant version available
- Easy cable insertion
- Virtually dust-free fastening
Applications

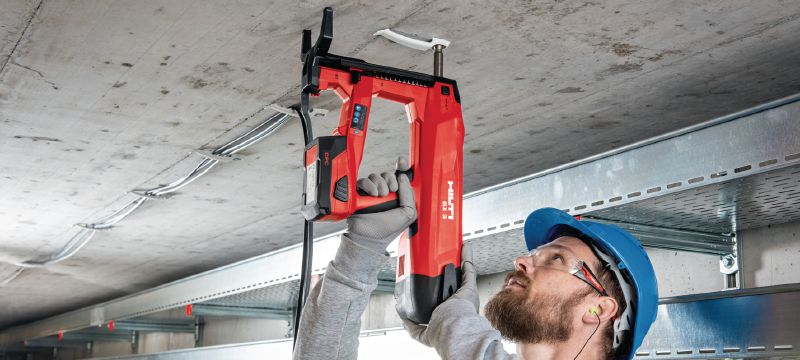

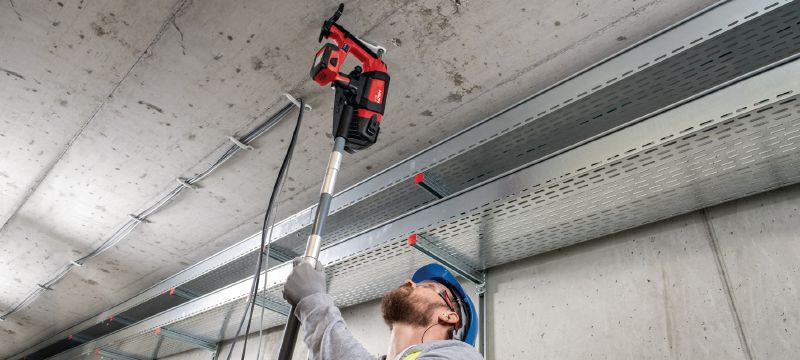

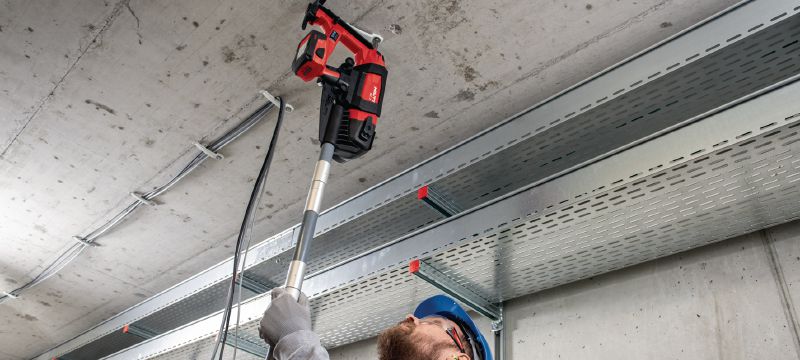

- Fastening multiple electrical cables flat on the working surface
- Typical spacing between cable clasps ranges from 50-100 cm – load and cable stiffness must be taken into account
- Typical spacing between fastening elements ranges from 50-100 cm – load and cable stiffness must be taken into account
For approval or certificate information, please see individual items.
