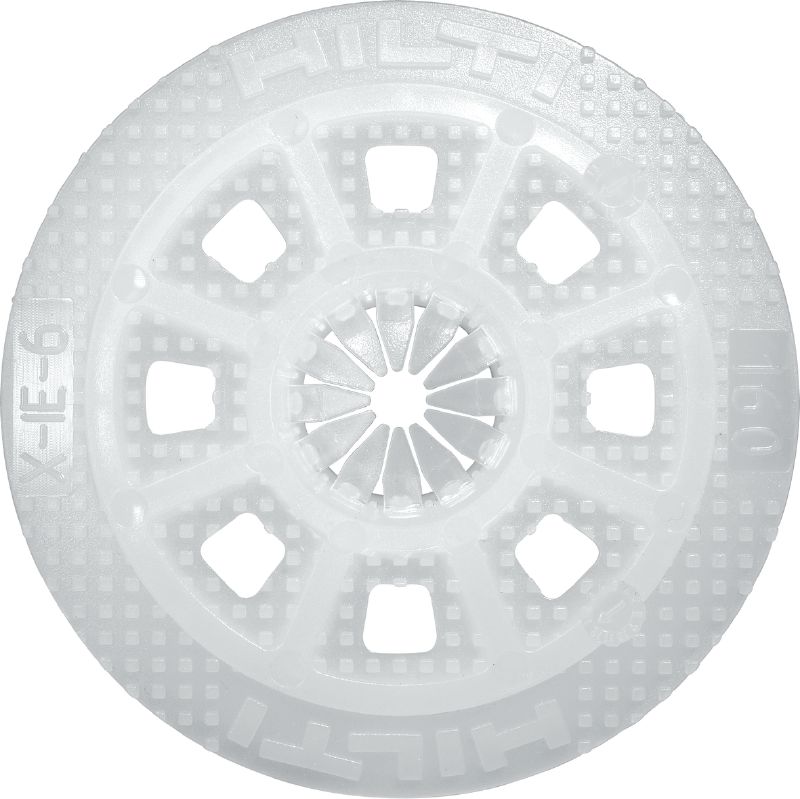

X-IE 6 EPS insulation fastener

White insulation fastener for EPS board on concrete

  • Application: Rigid Board Insulation, Mineral Wool Insulation
  • Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
  • Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate

Customers also searched for EPS, underslab insulation or soffit insulation.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Approvals
ITB
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
4 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Colourless
Product class
Ultimate

Documents

pdf Direct Fastening Technology Manual, English [ 10.9 MB ]
pdf X-IE Insulation fastener - Instructions for use, English [ 181.5 KB ]
pdf X-IE Insulation fastener, Data sheet, English [ 258.8 KB ]

Features & Applications

Features

  • Very fast insulation fastening system: up to five times quicker than conventional methods
  • High-strength fastener with low failure rate
  • Collapsible section: no crushing of the insulation material
  • Gauge included for easy visual control of fastener driving depth
  • No holes in the fastener shank – helping to prevent mold and moisture penetration in the insulation material

Applications

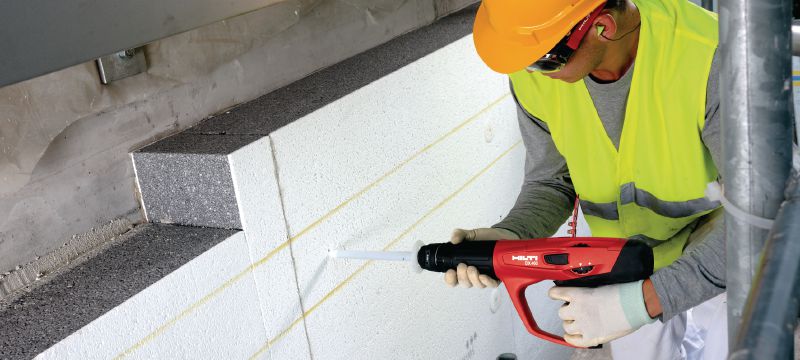

  • Fastening insulation on facades

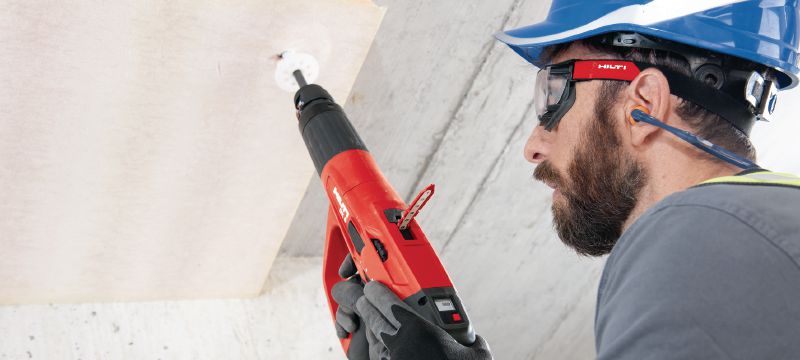

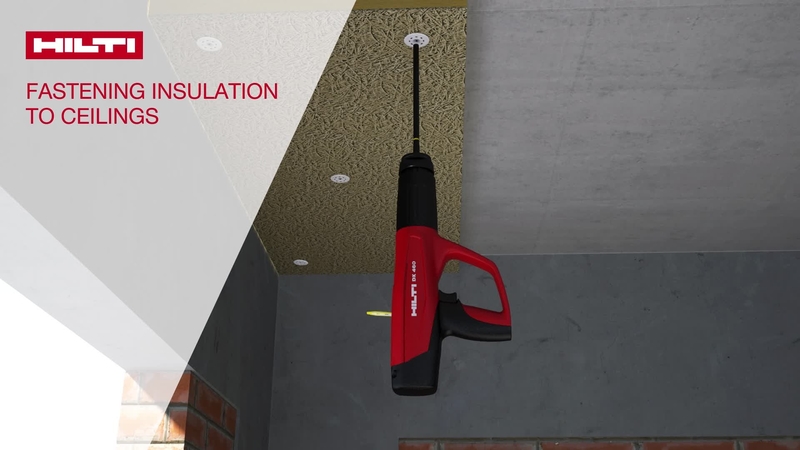

  • Fastening insulation on ceilings

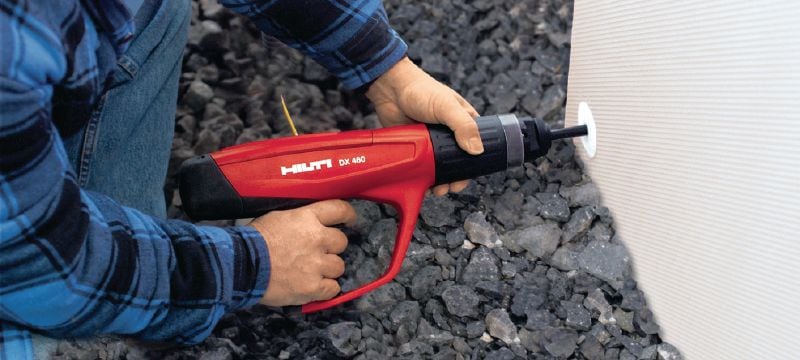

  • Fastening insulation on cellar exteriors

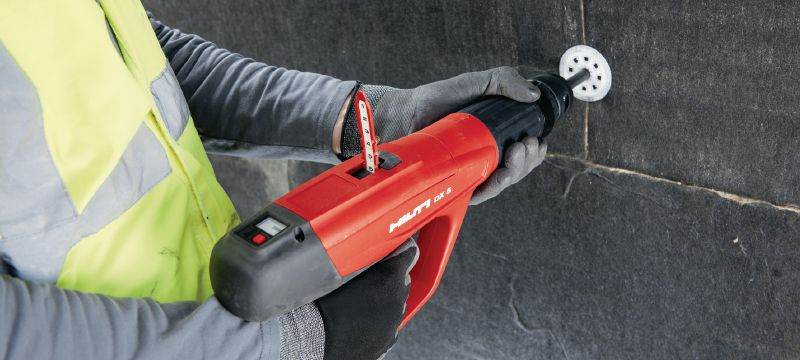

  • Fastening mineral wool insulation
  • Suitable for non ETICS insulation applications
