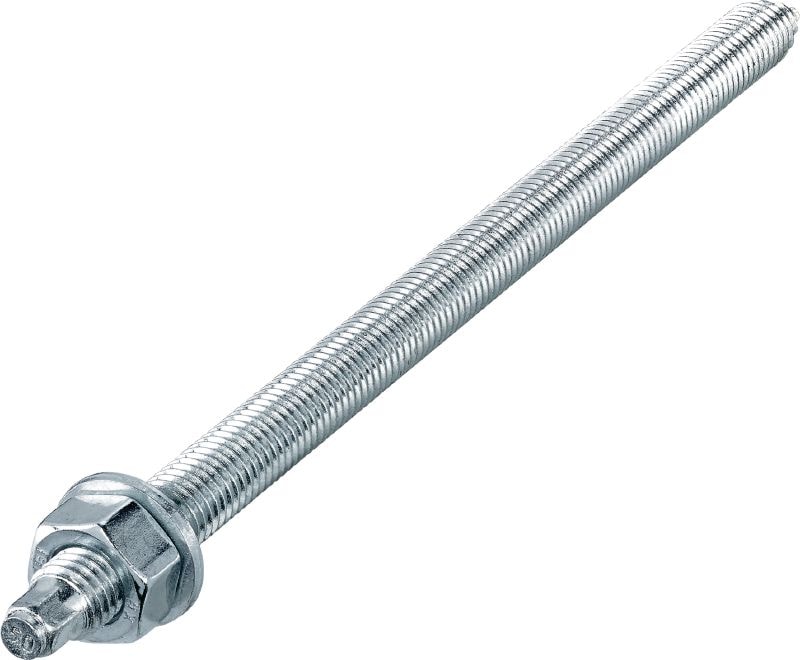

High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (5.8 carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
Anchor length
  • 80 mm
  • 95 mm
  • 110 mm
  • 120 mm
  • 130 mm
  • 150 mm
  • 160 mm
  • 180 mm
  • 190 mm
  • 240 mm
  • 260 mm
  • 300 mm
  • 350 mm
Material composition
  • Steel, strength 5.8 grade, zinc-plated (min. 5 µm)
Head configuration
  • Hex head
Pack size
  • 10 pc
  • 20 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From AUD 22.40

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS software
Yes
Approvals / test reports
ETA

Documents

Features & Applications

Features

  • Head marking for easy verification of steel grade and rod length, even after installation
  • Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
  • Replaces previous HIT-V & HAS / HAS-E rods
  • Large range of anchor rod diameters (M6-M39)
  • Custom lengths and additional diameters up to M39 available upon request

Applications

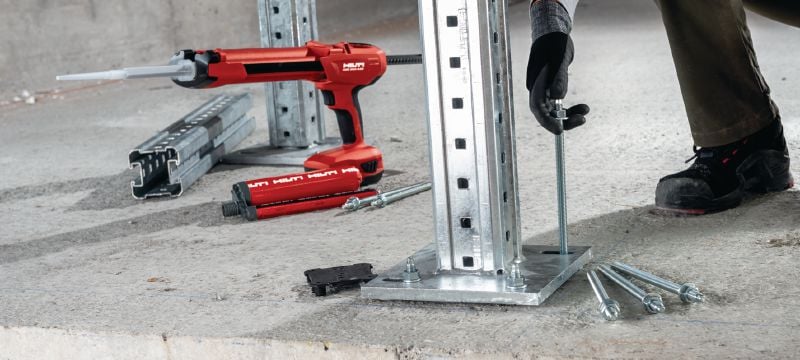

  • Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems

For approval or certificate information, please see individual items.
