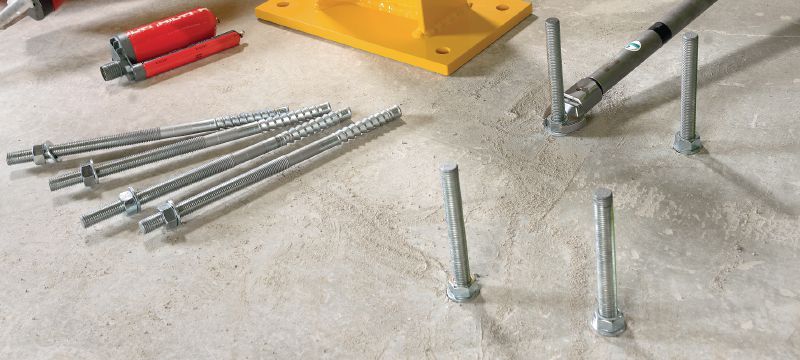

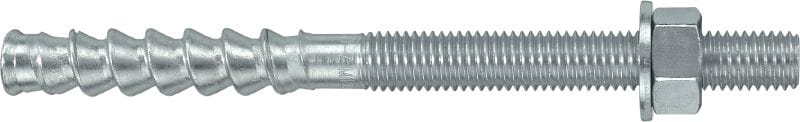

HIT-Z Anchor rod
Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Environmental conditions: Dry indoor
- Base materials: Concrete (cracked), Concrete (non-cracked)
Choose options
Anchor size
- M8
- M10
- M12
- M16
- M20
Anchor length
- 95 mm
- 100 mm
- 105 mm
- 135 mm
- 155 mm
- 160 mm
- 196 mm
- 205 mm
- 215 mm
- 240 mm
- 250 mm
Material composition
- Steel, zinc-plated (min. 5 µm)
Head configuration
- Externally threaded
Pack size
- 6 pc
- 12 pc
- 20 pc
- 40 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 98.40
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, ICC-ES report (concrete), Seismic
Cleaning procedures
Non-cleaning
Type of fastening
Pre-fastening, Through-fastening
Documents
Features & Applications
Features
- Suitable for very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
- No hole cleaning required (above 5°C/ 41°F) with HIT-HY 200
- More reliable and productive solution thanks to potential elimination of the hole cleaning process
- Variable depth of embedment to fully utilise the anchor capacity
- Head marking for easy verification of rod length, even after installation
Applications

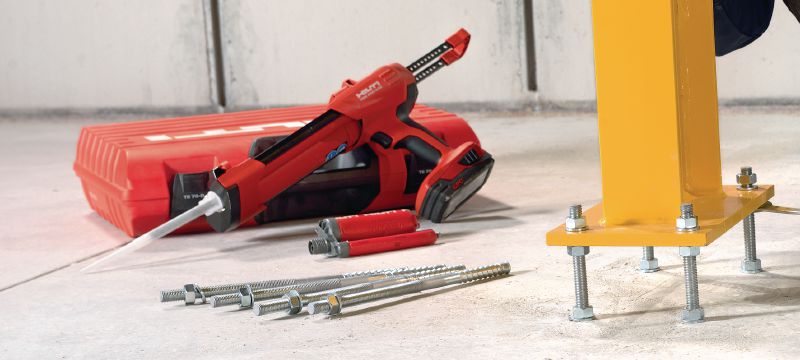

- Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
- Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)

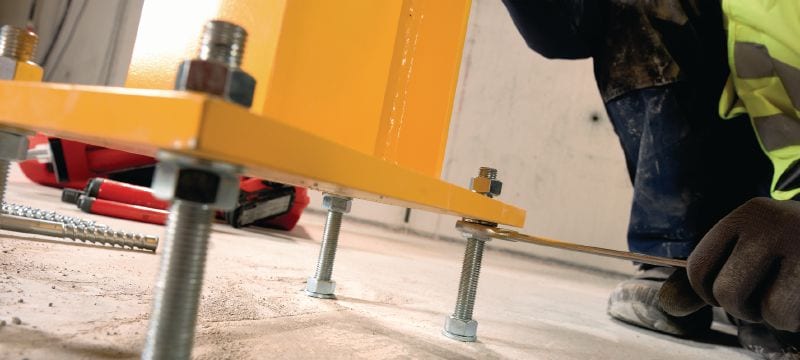

- Anchoring structural steel connections (e.g. steel columns, beams)
- Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
- Anchoring safety barriers, balustrades, fire escape staircases
For approval or certificate information, please see individual items.
