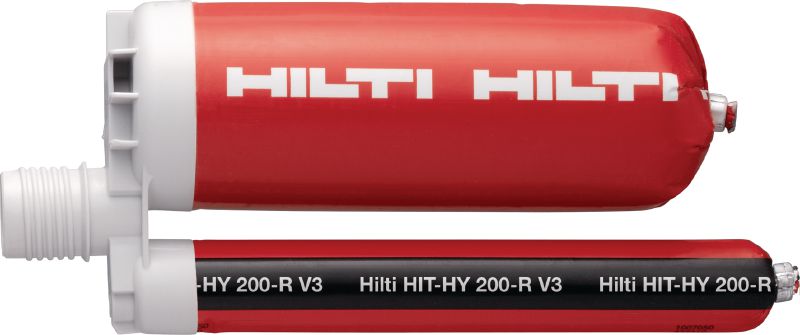

HIT-HY 200-R V3 Adhesive anchor
Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural baseplates
- Base materials: Concrete (cracked)
- Base material condition: Dry, Wet
- Approvals / test reports: ETA, ICC-ES report (concrete)
Customers also searched for AS5216.
Choose options
Content per can/cartridge
- 0.33 l
- 0.5 l
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 159.00
Technical Data
Base materials
Concrete (cracked)
Base material condition
Dry, Wet
Approvals / test reports
ETA, ICC-ES report (concrete)
Seismic loading
Yes
Fire resistance
Yes
PROFIS software
Yes
Anchoring elements
HAS threaded rods, HAS-U threaded rods, HIT-Z torque-controlled bonded anchors, Rebar
Environmental conditions
Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast)
Cleaning procedures
Compressed-air cleaning, Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 120 °C
Free of styrene
Yes
Documents
Features & Applications
Features
- Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range from -10 to +40°C
- Easier to specify and order – use PROFIS Engineering to design steel-to-concrete or concrete-to-concrete connections according to EC2, TR069, TR082 or the Hilti Design Method

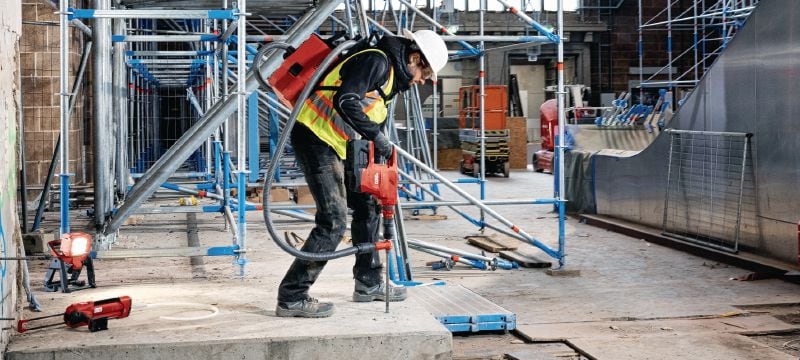

- Versatile adhesive anchor for wide-ranging conditions - approved for hammer-drilled, hollow-drilled and diamond-cored holes (with TE-YRT).
- Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
- Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor
Applications

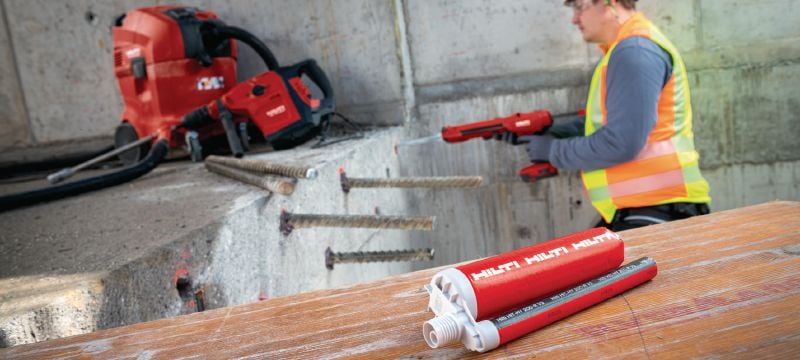

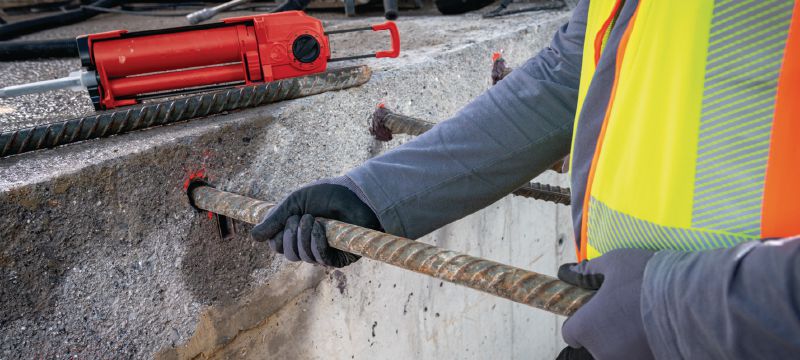

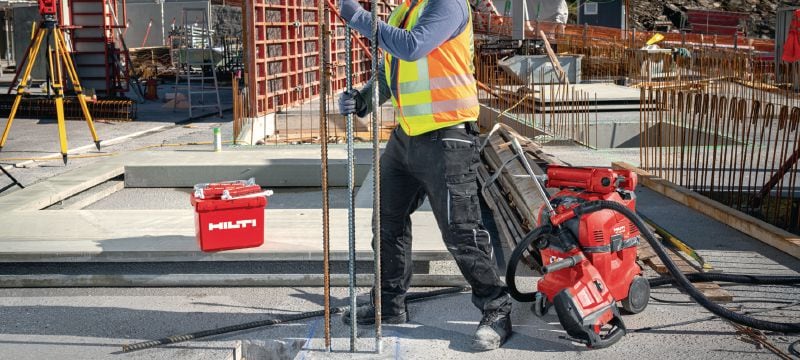

- Structural concrete connections with post-installed rebar
- Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete

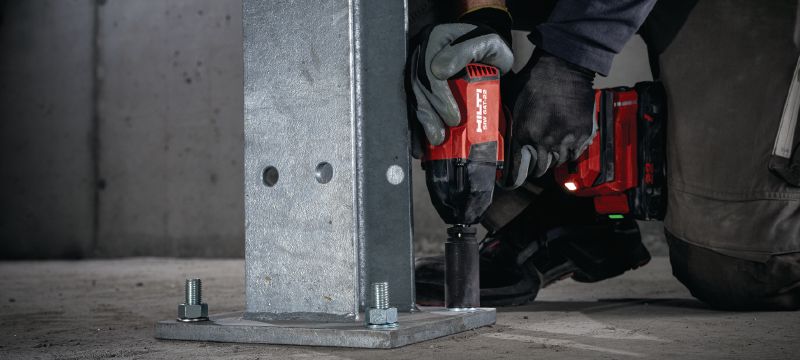

- Anchoring structural steel connections (e.g. steel columns, beams) to concrete
- Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
- Concrete connections designed both as rigid and as simply supported
For approval or certificate information, please see individual items.
