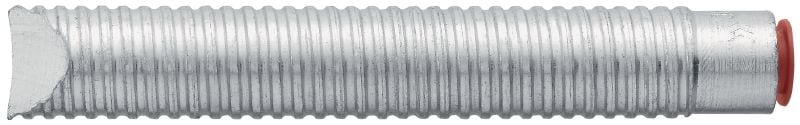

HIS-N Internally threaded sleeve
High-performance internally threaded insert for capsule and injectable hybrid/epoxy anchors (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Environmental conditions: Dry indoor
- Base materials: Concrete (cracked), Concrete (non-cracked)
Choose options
Material composition
- Steel, zinc-plated (min. 5 µm)
Anchor size
- M8
- M10
- M12
- M16
- M20
Anchor length
- 90 mm
- 110 mm
- 125 mm
- 170 mm
- 205 mm
Head configuration
- Inner thread
Pack size
- 5 pc
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 89.00
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Fire, ICC-ES report (concrete), ICC-ES report (masonry), Seismic
Type of fastening
Pre-fastening
Documents
Features & Applications
Features
- Internally threaded to allow flush installation and easy removal of bolts
- Features a chisel tip to cut and mix the Hilti HVU2 capsule (to be installed using the HIS-S setting tool)
- Designed for use in solid concrete with Hilti HVU2 capsules and various other Hilti injectable adhesive mortars
Applications
- Suitable for internally-threaded fastenings in concrete in combination with various Hilti injectable adhesive mortars, HVU2 capsules and 8.8 grade steel anchor rods
For approval or certificate information, please see individual items.
