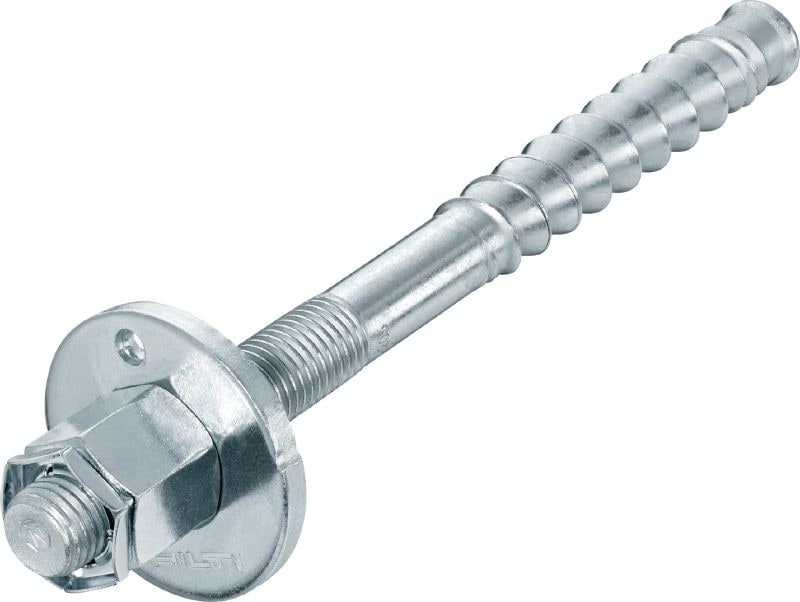

HIT-Z-D TP Dynamic anchor rod
Anchor rod HIT-Z-D TP M16x240 #2139255
High-performance dynamic anchor rod for injectable hybrid anchors (carbon steel), through and presetting
- Material, corrosion: Carbon steel, zinc-plated
- Wrench/nut size: 24 mm
- Drill bit diameter: 18 mm
Choose options
Anchor size
- M16
Anchor length
- 240 mm
Material composition
- Steel, zinc-plated (min. 5 µm)
Head configuration
- Externally threaded
Pack size
- 8 pc
Quantity
Packs
Total Piece
8
Discounted net
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Wrench/nut size
24 mm
Drill bit diameter
18 mm
PROFIS software
Yes
Approvals / test reports
DIBt, ETA, Seismic
Documents
Features & Applications
Features
- Suitable for dynamic loading subject to fatigue and shock
- High loads in cracked concrete and seismic applications according to ETA C2 approval
- No hole cleaning required (above 5°C / 41°F) with HIT-HY 200
- Optimal load transfer through special washer and filling of annular gap
- Professional software and services for designing fastenings subject to fatigue loads
Applications
- Heavy-duty fastenings for dynamic loads in uncracked and cracked concrete (e.g. robots, machinery, cranes, elevators)
- Seismic anchoring applications
- Heavy-duty fastenings for dynamic loads in cracked concrete (e.g. robots, machinery, cranes, elevators)
