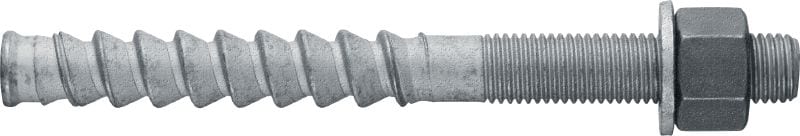

HIT-Z-F Anchor rod
Ultimate-performance anchor rod for injectable hybrid anchors (multilayer)
- Material, corrosion: Carbon steel, Multilayer coating
- Environmental conditions: Dry indoor, Indoor with temporary condensation
- Base materials: Concrete (cracked), Concrete (non-cracked)
Choose options
Anchor size
- M16
- M20
Anchor length
- 155 mm
- 175 mm
- 205 mm
- 215 mm
- 240 mm
- 250 mm
Material composition
- Steel, multilayer coating
Head configuration
- Externally threaded
Pack size
- 6 pc
- 12 pc
Quantity
Packs
Total Pieces
1
Discounted net
From AUD 129.60
Technical Data
Material, corrosion
Carbon steel, Multilayer coating
Environmental conditions
Dry indoor, Indoor with temporary condensation
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, Seismic
Documents
Features & Applications
Features
- Very high loads in cracked concrete and seismic applications in accordance with ETA C2 applications
- No hole cleaning required (5°C / 41°F) with HIT-HY 200
- Increased productivity and safety through elimination of the hole cleaning process
- Head marking for easy verification of rod length, even after installation
- The first adhesive anchoring system for use in cracked concrete and seismic applications in diamond-cored holes
Applications

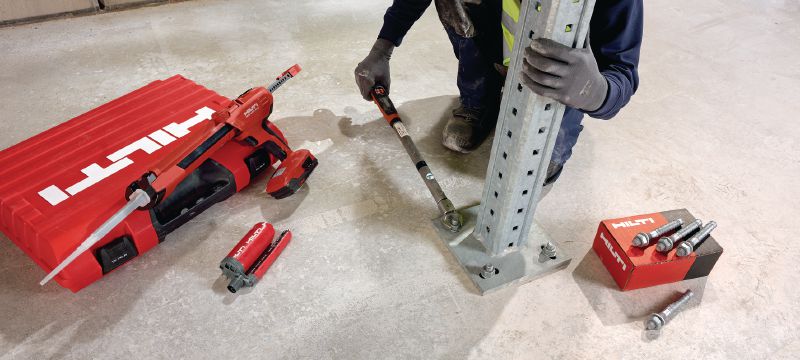

- Fastenings in cracked and uncracked concrete in combination with HIT-HY 200
- Seismic anchoring applications

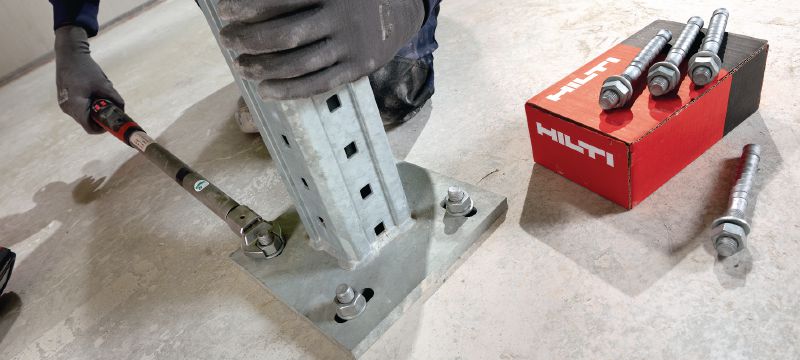

- Anchoring structural steel
- Anchoring secondary steel structures
For approval or certificate information, please see individual items.
