What is the minimum concrete thickness when installing M20 Hilti HST4-R to 200 mm effective anchorage depth?

Hi Daniel,

Thank you for contacting Hilti.

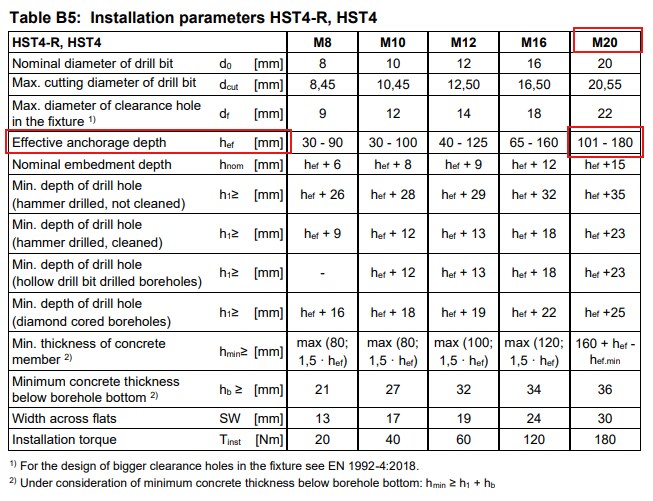

Unfortunately, M20 HST4-R anchor has been tested and approved for a maximum effective anchorage depth of 180mm as shown under Table B5 (attached here), which can be found on page 13 of the approval document ETA 21-0878 for HST4(-R) and can be accessed through THIS LINK.

Feel free to get in touch with our customer service team at 131 292 to get connected with one of our field engineers to provide assistance for possible alternative solutions for your design.

Kind regards,
Ask Hilti Team.
