Hello Stacey,
Thank you for reaching out to Hilti.
You can design the following connection by inputting the following parameters from left tab in Profis Engineering:
• Concrete Grade
• Concrete thickness
• Edge distances
• Loads acting on the connection (tension, shear & moment)
• Baseplate dimensions
• Anchor spacing
• Type of anchor required (chemical or mechanical)

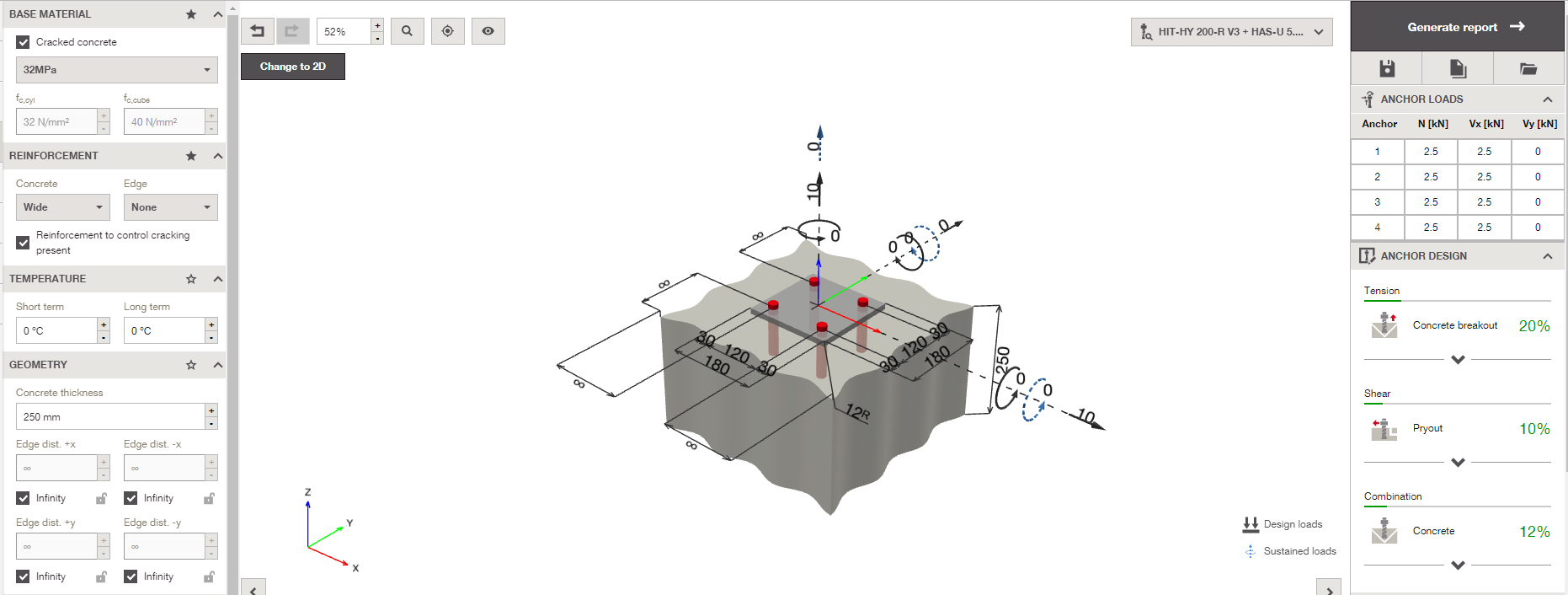

Once you have your basic parameters set, the software will automatically calculate the required embedment depth and anchor utilization percentages will be shown on the right hand side of the software. Your design would look something as shown in the attached image.
You can also watch these You Tube videos for tips:
- HOW TO use Hilti PROFIS Engineering Suite for concrete design
- Hilti PROFIS Engineering anchor design software tips - custom base plates
Hope this will get you started on your design. If you need any support in designing your connections, you can reach out to our engineering team >> here.
