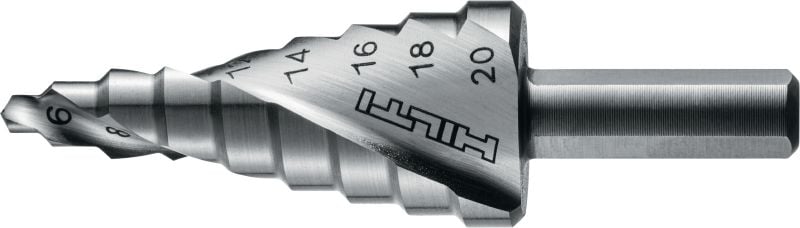

HSS Step drill bit
Stepped drill bit M10-M40 #2312459
HSS step drill bit with 3-flat shank for faster drilling of holes in metal using a drill driver
- Connection end: 3-flat 10mm
- Base material: Steel, Cast iron, Non-ferrous metal, Plastic, Plexiglass
- Application: Drilling in steel and sheet metal
premium
Choose options
Diameter range
- 8.5 - 40.5 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
AUD 321.00
AUD 321.00 / 1 Piece
Technical Data
Connection end
3-flat 10mm
Base material
Steel, Cast iron, Non-ferrous metal, Plastic, Plexiglass
Application
Drilling in steel and sheet metal
Diameter range
8.5 - 40.5 mm
Number of Steps
16
Application Depth
4 mm
Tip Design
Split point with angle 132°
Product class
Premium
Features & Applications
Features
- Faster drilling in metal – 3-flat shank transfers more torque from the tool and better prevents slipping in the clutch, helping you save time on every hole
- Longer-lasting step bits – cut more holes with the same step bit thanks to the solid HSS core
- No pre-punching needed – self-centring split tip for faster and more precise penetration of metals
- Smoother surface finish – specially ground cutting edge for a virtually burr-free result
Applications
- Creating or enlarging holes in steel sheet and other non-ferrous metals
- Best performance reached when applying the right speed and cooling cutting oil
